4405010600 IMPELLER 2 (IIl) HP อะไหล่หมายเลข 16
คุณสมบัติสินค้า:
SKU : 4405010600
สำหรับ ปั้ม VICTORIA PLUS SILENT PUMP รุ่น 65557,65558,65560,65561,65562,65563 65564,65565,65566,65567,65569,65570 (Update 04/07/2022)
หมวดหมู่ : Spare Part Pump Astral , Victoria Plus Silen ,
แบรนด์ : ASTRALPOOL
Share

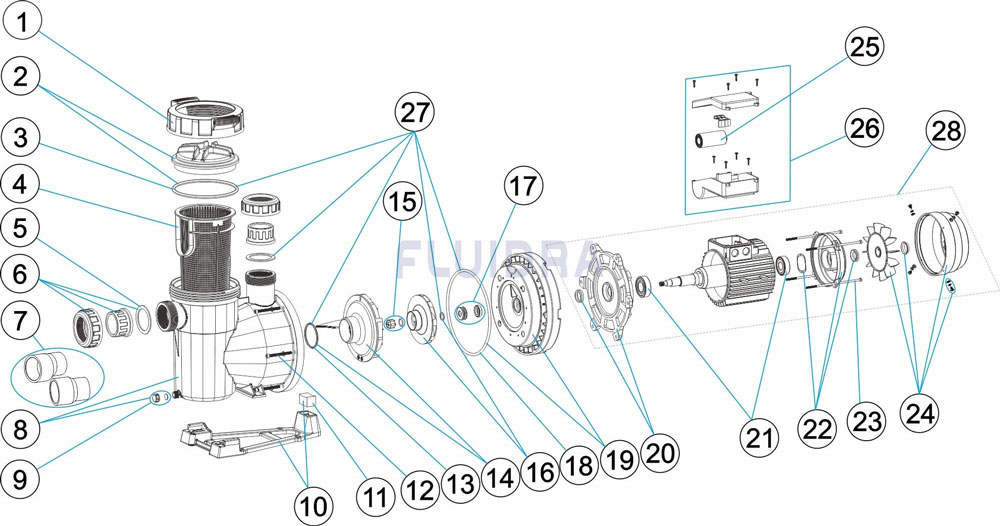

| No. | Code. | Description | Pack | QTY/Pack | Price List 2022 (1/7/2022) | Website | สมาชิก |
| 1 | 4405010585 | PRE-FILTER COVER NUT | 1 | 1 | 2,166.00 | 1,517.00 | 1,463.00 |
| 2 | 4405010702 | PRE-FILTER COVER | 1 | 1 | 1,856.00 | 1,300.00 | 1,253.00 |
| 3 | 4405010178 | O' RING D 151,7X6,99 | 1 | 1 | 744.00 | 521.00 | 503.00 |
| 4 | 4405010105 | PRE-FILTER BASKET | 1 | 1 | 718.00 | 503.00 | 485.00 |
| 5 | 4405010179 | INLET GASKET 72X55X2,5 | 1 | 2 | 212.00 | 149.00 | 144.00 |
| 6 | 4405010106 | UNION FITTINGS <= 1 HP | 1 | 1 | 728.00 | 510.00 | 492.00 |
| 4405010107 | UNION FITTINGS 1,5 HP - 2,5 HP | 1 | 1 | 728.00 | 510.00 | 492.00 | |
| 7 | 4405010717 | UNION FITTINGS 3 HP | 1 | 1 | 1,050.00 | 735.00 | 709.00 |
| 8 | 4405010586 | PUMP HOUSING | 1 | 1 | 9,462.00 | 6,624.00 | 6,387.00 |
| 9 | 4405010587 | DRAIN PLUG | 1 | 1 | 300.00 | 210.00 | 203.00 |
| 10 | 4405010588 | PUMP BASE | 1 | 1 | 2,408.00 | 1,686.00 | 1,626.00 |
| 4405010492 | PUMP BASE | 1 | 1 | 2,782.00 | 1,948.00 | 1,878.00 | |
| 4405010589 | PUMP BASE | 1 | 1 | 2,408.00 | 1,686.00 | 1,626.00 | |
| 11 | 4405010180 | PUMP BASE FITTINGS 3 HP II | 1 | 1 | 494.00 | 346.00 | 334.00 |
| 4405010112 | PUMP BASE FITTINGS 0,75 - 1,5 HP | 1 | 1 | 494.00 | 346.00 | 334.00 | |
| 4405010113 | PUMP BASE FITTINGS 1,5 HP - 3 HP | 1 | 1 | 526.00 | 369.00 | 356.00 | |
| 12 | 4405010590 | BODY FIXING SCREW | 1 | 1 | 3,008.00 | 2,106.00 | 2,031.00 |
| 13 | 4405010161 | O' RING D. 56,7X3,5 | 1 | 2 | 190.00 | 133.00 | 129.00 |
| 14 | 4405010115 | DIFFUSEUR <=0,75 HP | 1 | 1 | 1,280.00 | 896.00 | 864.00 |
| 4405010116 | DIFFUSOR 1 HP - 2 HP | 1 | 1 | 1,280.00 | 896.00 | 864.00 | |
| 4405010117 | DIFFUSOR 2,5 - 3 HP | 1 | 1 | 1,280.00 | 896.00 | 864.00 | |
| 15 | 4405010134 | IMPELLER COVER M8 LEFT | 1 | 1 | 506.00 | 355.00 | 342.00 |
| 16 | 4405010591 | IMPELLER ½ (II) HP | 1 | 1 | 3,370.00 | 2,359.00 | 2,275.00 |
| 4405010667 | IMPELLER ½ (II) HP 60 HZ | 1 | 1 | 3,370.00 | 2,359.00 | 2,275.00 | |
| 16 | 4405010592 | IMPELLER ½ (III) HP | 1 | 1 | 3,370.00 | 2,359.00 | 2,275.00 |
| 16 | 4405010668 | IMPELLER ½ (III) HP 60 HZ | 1 | 1 | 3,370.00 | 2,359.00 | 2,275.00 |
| 4405010593 | IMPELLER ¾ (II) HP | 1 | 1 | 3,586.00 | 2,511.00 | 2,421.00 | |
| 4405010595 | IMPELLER 1 (II) HP | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010671 | IMPELLER 1 (II) HP 60 HZ | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010596 | IMPELLER 1 (III) HP | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010672 | IMPELLER 1 (III) HP 60 HZ | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010597 | IMPELLER 1,5 (II) HP | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010673 | IMPELLER 1,5 (II) HP 60 HZ | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010598 | IMPELLER 1,5 (III) HP | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010674 | IMPELLER 1,5 (III) HP 60 HZ | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010599 | IMPELLER 2 (II) HP | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010675 | IMPELLER 2 (II) HP 60 HZ | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010600 | IMPELLER 2 (III) HP | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010676 | IMPELLER 2 (III) HP 60 HZ | 1 | 1 | 3,254.00 | 2,278.00 | 2,197.00 | |
| 4405010601 | IMPELLER 3 (II) HP | 1 | 1 | 3,586.00 | 2,511.00 | 2,421.00 | |
| 4405010677 | IMPELLER 3 (II) HP 60 HZ | 1 | 1 | 3,586.00 | 2,511.00 | 2,421.00 | |
| 4405010602 | IMPELLER 3 (III) HP | 1 | 1 | 3,586.00 | 2,511.00 | 2,421.00 | |
| 4405010678 | IMPELLER 3 (III) HP 60 HZ | 1 | 1 | 3,586.00 | 2,511.00 | 2,421.00 | |
| 4405010669 | IMPELLER ¾ (II) HP 60 HZ | 1 | 1 | 3,586.00 | 2,511.00 | 2,421.00 | |
| 4405010594 | IMPELLER ¾ (III) HP | 1 | 1 | 3,586.00 | 2,511.00 | 2,421.00 | |
| 4405010670 | IMPELLER ¾ (III) HP 60 HZ | 1 | 1 | 3,586.00 | 2,511.00 | 2,421.00 | |
| 17 | 4405010118 | MECHANICAL SEAL | 1 | 1 | 974.00 | 682.00 | 658.00 |
| 18 | 4405010487 | O' RING | 1 | 1 | 948.00 | 664.00 | 640.00 |
| 19 | 4405010603 | MECHANICAL SEAL PLATE | 1 | 1 | 4,324.00 | 3,027.00 | 2,919.00 |
| 20 | 4405010604 | FRONT MOTOR FLANGE | 1 | 1 | 5,136.00 | 3,596.00 | 3,467.00 |
| 4405010607 | FRONT MOTOR FLANGE | 1 | 1 | 4,816.00 | 3,372.00 | 3,251.00 | |
| 4405010608 | FRONT MOTOR FLANGE | 1 | 1 | 6,100.00 | 4,270.00 | 4,118.00 | |
| 21 | 4405010609 | MOTOR BEARINGS < 1 HP | 1 | 1 | 1,874.00 | 1,312.00 | 1,265.00 |
| 4405010610 | MOTOR BEARINGS 1,5 - 3 HP | 1 | 1 | 2,088.00 | 1,462.00 | 1,410.00 | |
| 4405012039 | FRONT & REAR BEARING | 1 | 1 | 2,666.00 | 1,867.00 | 1,800.00 | |
| 22 | 4405010612 | MEC. MOTOR COVER C.71 | 1 | 1 | 2,996.00 | 2,098.00 | 2,023.00 |
| 4405010614 | MEC. MOTOR COVER C.80 | 1 | 1 | 2,996.00 | 2,098.00 | 2,023.00 | |
| 4405010615 | MEC. MOTOR COVER C.90 | 1 | 1 | 2,782.00 | 1,948.00 | 1,878.00 | |
| 23 | 4405010144 | MOTOR TIES 0,75 - 1 HP | 1 | 1 | 632.00 | 443.00 | 427.00 |
| 4405010145 | MOTOR TIES 1,5 - 3 HP III | 1 | 1 | 696.00 | 488.00 | 470.00 | |
| 4405010169 | MOTOR TIES (90) 3 HP II | 1 | 2 | 482.00 | 338.00 | 326.00 | |
| 24 | 4405010635 | FAN COVER ASSEMBLY | 1 | 1 | 3,104.00 | 2,173.00 | 2,096.00 |
| 4405010636 | FAN COVER ASSEMBLY | 1 | 1 | 2,954.00 | 2,068.00 | 1,994.00 | |
| 4405010637 | FAN COVER ASSEMBLY | 1 | 1 | 2,034.00 | 1,424.00 | 1,373.00 | |
| 25 | 4405010149 | CONDENSER 12 UF 1/2 CV | 1 | 1 | 740.00 | 518.00 | 500.00 |
| 4405020121 | CONDENSER 14 UF 3/4 CV | 1 | 1 | 776.00 | 544.00 | 524.00 | |
| 25 | 4405020122 | CONDENSER 16 UF 1 CV | 1 | 1 | 782.00 | 548.00 | 528.00 |
| 4405010150 | CONDENSER 18 UF 1,5 CV | 1 | 1 | 1,884.00 | 1,319.00 | 1,272.00 | |
| 4405010174 | CONDENSER 32 F 2 CV | 1 | 1 | 1,488.00 | 1,042.00 | 1,005.00 | |
| 4405010175 | CONDENSER 40 ?F 2,5-3 CV | 1 | 1 | 1,638.00 | 1,147.00 | 1,106.00 | |
| 26 | 4405010154 | TERMINAL BOX ASSEMBLY C. 63-71 II | 1 | 1 | 1,044.00 | 731.00 | 705.00 |
| 4405012048 | TERMINAL BOX ASSEMBLY (MOTOR II) C.80 | 1 | 1 | 1,526.00 | 1,069.00 | 1,031.00 | |
| 4405010156 | TERMINAL BOX COVER C 63-71 III | 1 | 1 | 402.00 | 282.00 | 272.00 | |
| 4405012051 | TERMINAL BOX ASSEMBLY (MOTOR III) C.80 | 1 | 1 | 1,516.00 | 1,062.00 | 1,024.00 | |
| 4405012047 | TERMINAL BOX ASSEMBLY (MOTOR II) C.71 | 1 | 1 | 1,212.00 | 849.00 | 819.00 | |
| 4405012050 | TERMINAL BOX ASSEMBLY (MOTOR III) C.71 | 1 | 1 | 1,448.00 | 1,014.00 | 978.00 | |
| 27 | 65557R0475 | MOTOR ½ HP II | 1 | 1 | 20,652.00 | 14,457.00 | 13,941.00 |
| 65558R0475 | MOTOR ½ HP III | 1 | 1 | 20,652.00 | 14,457.00 | 13,941.00 | |
| 65560R0475 | MOTOR 3/4 HP II | 1 | 1 | 20,652.00 | 14,457.00 | 13,941.00 | |
| 65561R0475 | MOTOR 3/4 HP III | 1 | 1 | 20,652.00 | 14,457.00 | 13,941.00 | |
| 65562R0475 | MOTOR 1 HP II | 1 | 1 | 21,400.00 | 14,980.00 | 14,445.00 | |
| 65563R0475 | MOTOR 1 HP III | 1 | 1 | 21,400.00 | 14,980.00 | 14,445.00 | |
| 65564R0475 | MOTOR 1,5 HP II | 1 | 1 | 26,750.00 | 18,725.00 | 18,057.00 | |
| 65565R0475 | MOTOR 1,5 HP III | 1 | 1 | 26,750.00 | 18,725.00 | 18,057.00 | |
| 65566R0475 | MOTOR 2 HP II | 1 | 1 | 27,820.00 | 19,474.00 | 18,779.00 | |
| 65567R0475 | MOTOR 2 HP III | 1 | 1 | 27,820.00 | 19,474.00 | 18,779.00 | |
| 65569R0475 | MOTOR 3 HP II | 1 | 1 | 31,566.00 | 22,097.00 | 21,308.00 | |
| 65570R0475 | MOTOR 3 HP III | 1 | 1 | 31,566.00 | 22,097.00 | 21,308.00 |
