Aral C-1500 25 HP/400/690V III 50Hz
Attribute:
SKU : 01225
✅ 25 HP/400/690V III 50Hz ✅ Flowrate 300 m³/h. (at Head 10 m,) ✅ConnQection DN150 -6” (Update 19/06/2025)
Categories : Pump Swimingpool , ASTRALPOOL , Aral C-1500 ,
Brand : ASTRALPOOL
Share
Aral C-1500 Pump
Centrifugal Pumps
Monobloc horizontal centrifugal pumps with a horizontal volute and a attached pre-filter with an stainless steel AISI-304 basket.
Appropiate for public swimming pools and clean liquid recirculation. 1450 r.p.m. high performance pumps with the body, impeller, pre-filter and bracket manufactured in cast iron.
The shaft is made of stainless steel AISI-316 with bronze protection, and the mechanic seal is made of stainless steel AISI-316.
The motor holds an IP-54 protection.
The gamma ranges from triphasic 3 HP to 25 HP motors.
Such motors have a 230/400/690V 50Hz working voltage (60 hz could also be supplied). Hub by flange according to DIN-2501 regulation.

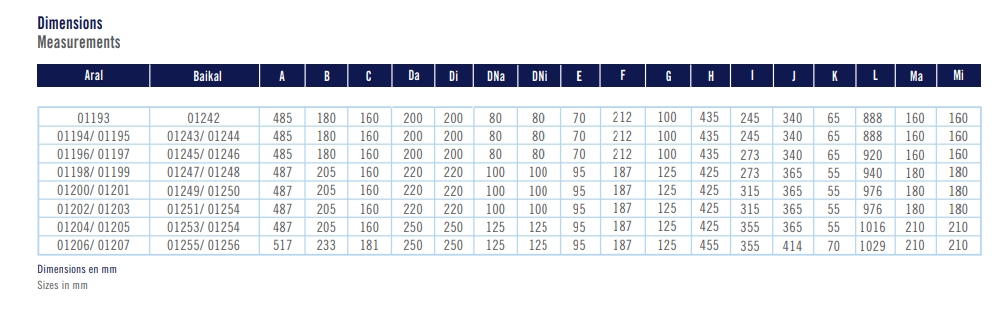

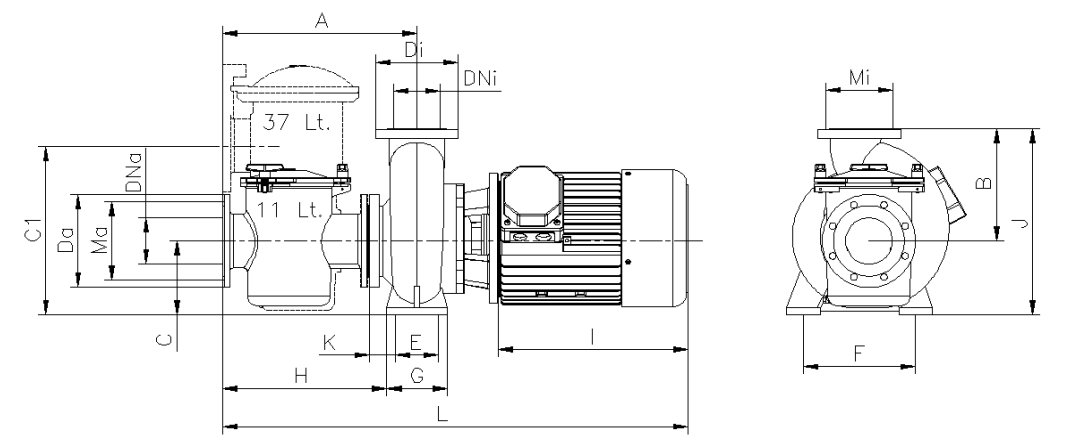

Dimension
