MPUV Series Nano Tech UV-C Systems**No Stock, Delivery Time 60-90 Days
Attribute:
SKU :
Sustantial reduction in chloramines Medium pressure UV lamps for maximum oxidation Microprocessor control with data logging Connects to building managment systems Automatic “Smartdrive” wiper system as standard Simple lamp replacement 316 L Stainless steel reactor vessel (Update 4/06/2025)
Flowrate
Categories : Emaux , Salt Chlorinator and Disinfection Equipments , Ultraviolet , NANO TECH ,
Brand : EMAUX
Share

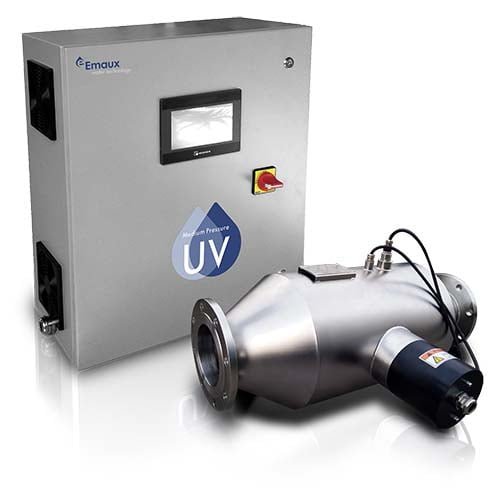

“EMAUX” MPUV Series Nano Tech UV-C Systems
LOW COST HIGH UV EFFICIENCY
The NT-MPUV series of medium pressure ultraviolet units is designed for easy installation. The system provides a cost effective solution for disinfection and chloramine reduction in commercial pools.
Medium pressure UV systems are highly effective against highly infectious Cryptosporidium parvum and Giardia lambia species which can exist in swimming pool water. These are virtually unaffected by the levels of chlorine used to sanitise swimming pools. As a direct result of its interaction with pollutants, the chlorine in a pool produces chloramines which cause eye and skin irritation and unpleasant odours.
Medium pressure UV systems reduce the side effects and produce a vastly improved water quality and atmospheric environment.
Applications
- Commercial swimming pools and spas
- Water features
- Lakes and ponds
Main Characteristics
- Easy to install with in-line vessel design
- Higher UV efficiency
- Typical UVT is 90% at 60 mJ/cm2
- Lower power consumption
FEATURES
- Sustantial reduction in chloramines
- Medium pressure UV lamps for maximum oxidation
- Microprocessor control with data logging
- Connects to building managment systems
- Automatic “Smartdrive” wiper system as standard
- Simple lamp replacement
- 316 L Stainless steel reactor vessel
 |  |
| Code | Model | Connection (Inches) | Flowrate (m3/h) | Lamp Power(KW) | Power Supply | Control Paneral Dimension |
| 20310510215 | NT‐MPUV40* | 3" (DN80) | 40 | 1.0 | 200-240V | 600x300x600 |
| 20310510220 | NT‐MPUV60* | 4"(DN100) | 60 | 1.5 | 200-240V | 600x300x700 |
| 20310510225 | NT‐MPUV105* | 6"(DN150) | 105 | 2.0 | 200-240V | 600x300x700 |
| 20310510230 | NT‐MPUV145* | 6"(DN150) | 145 | 2.5 | 200-240V | 600x300x700 |
| 20310510235 | NT‐MPUV170* | 6"(DN150) | 170 | 3.0 | 200-240V | 600x300x700 |
| 20310510240 | NT‐MPUV220* | 8"(DN200) | 220 | 2x2.0=4.0 | 200-240V/1 360-350/3 | 700x300x1100 |
| 20310510245 | NT‐MPUV300* | 8"(DN200) | 300 | 2x2.5=6.0 | 200-240V/1 360-350/3 | 700x300x1100 |
| 20310510250 | NT‐MPUV355* | 10"(DN250) | 355 | 2x3.0=6.0 | 200-240V/1 360-350/3 | 700x300x1100 |
| 20310510255 | NT‐MPUV415* | 10"(DN250) | 415 | 2x3.5=7.0 | 200-240V/1 360-350/3 | 700x300x1100 |
*สินค้าไม่มีสต๊อค กรณาสังล่วงหน้า 60-90 วัน/ No Stock, Delivery Time 60-90 Days

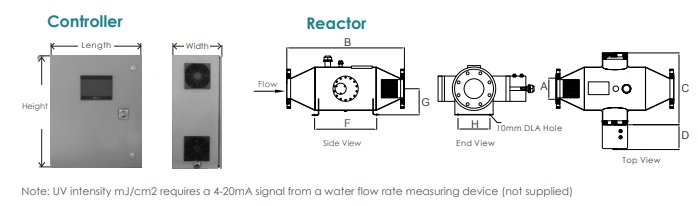

Dimension
| Model NO | A | B | C | D | F | G | H |
| NT-MPUV40 | 80/3.0 | 740/29.1 | 422/16.6 | 195/7.7 | 300/11.8 | 200/7.9 | 170/6.7 |
| NT-MPUV60 | 100/4.0 | 740/29.1 | 422/16.6 | 195/7.7 | 300/11.8 | 200/7.9 | 170/6.7 |
| NT-MPUV105 | 150/6.0 | 800/31.5 | 422/16.6 | 195/7.7 | 400/15.7 | 200/7.9 | 170/6.7 |
| NT-MPUV145 | 150/6.0 | 820/32.3 | 585/23 | 195/7.7 | 400/15.7 | 275/10.8 | 250/9.8 |
| NT-MPUV170 | 150/6.0 | 820/32.3 | 585/23 | 195/7.7 | 400/15.7 | 275/10.8 | 250/9.8 |
| NT-MPUV220 | 200/8.0 | 890/35.0 | 422/16.6 | 195/7.7 | 450/17.7 | 225/8.8 | 250/9.8 |
| NT-MPUV300 | 200/8.0 | 890/35.0 | 585/23 | 195/7.7 | 450/17.7 | 275/10.8 | 330/13 |
| NT-MPUV355 | 250/10.0 | 890/35.0 | 585/23 | 195/7.7 | 450/17.7 | 275/10.8 | 330/13 |
| NT-MPUV415 | 250/10.0 | 890/35.0 | 585/23 | 195/7.7 | 450/17.7 | 275/10.8 | 330/13 |
