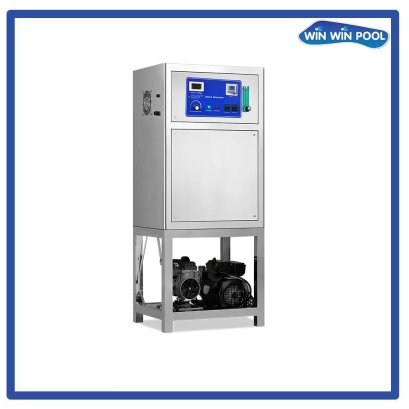

QL-OWS Ozone Water System with mixing tank
Attribute:
SKU :
Ozonated water output flow rate: 0.4-3.5M3/Hr Conxentration:1-5 ppm Outlet pressure: 2-3kg/cm^2 Voltage: 220V/50Hz Power: 1100W,1500W,1800W Temperature: 5-40℃ Inlet diameter: 3/4”,1” Outlet diameter: 1/2'',3/4'' Dimension: 50*40*120 cm,50*40*138 cm,50*40*138 cm Net weight: 50 kg,60 kg,70 kg. Purify pool water: 10 M3/Hr,20 M3/Hr,30 M3/Hr Ozone ouput adjustable: 10-100% Gas feeding: oxygen feeding Cooling way: Air cooling External case: Stainless steel 304
OZONE
Categories : Salt Chlorinator and Disinfection Equipments , Ozone , winwinpool , Ozone-Water-System , Ozone , Ozone Product ,
Brand : winwinpool
Share

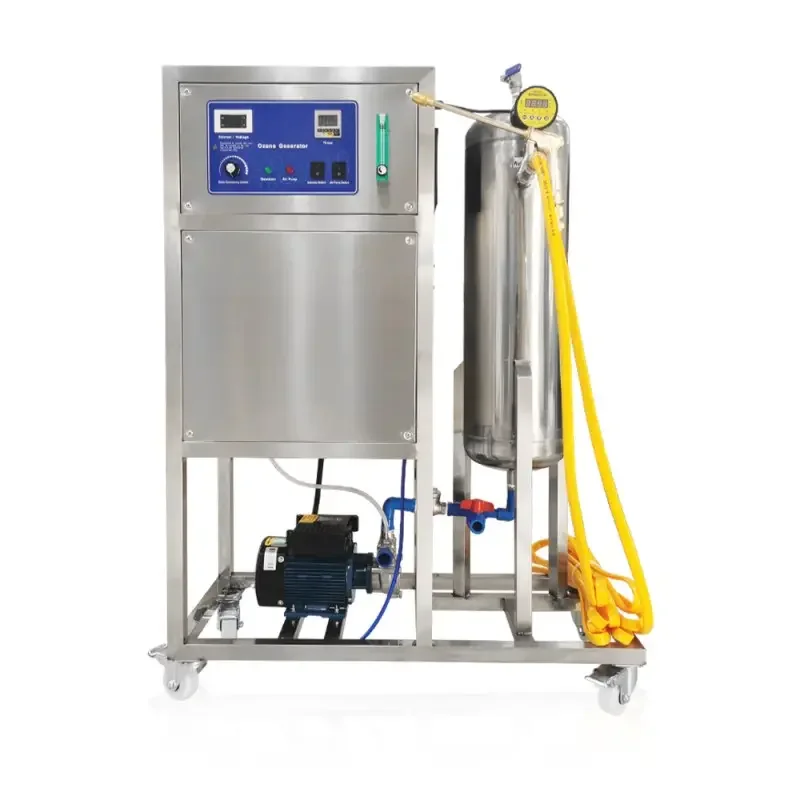

QL-OWS-10G/20G/30G High Concentration Spray Ozone Water System With Mixing Tank

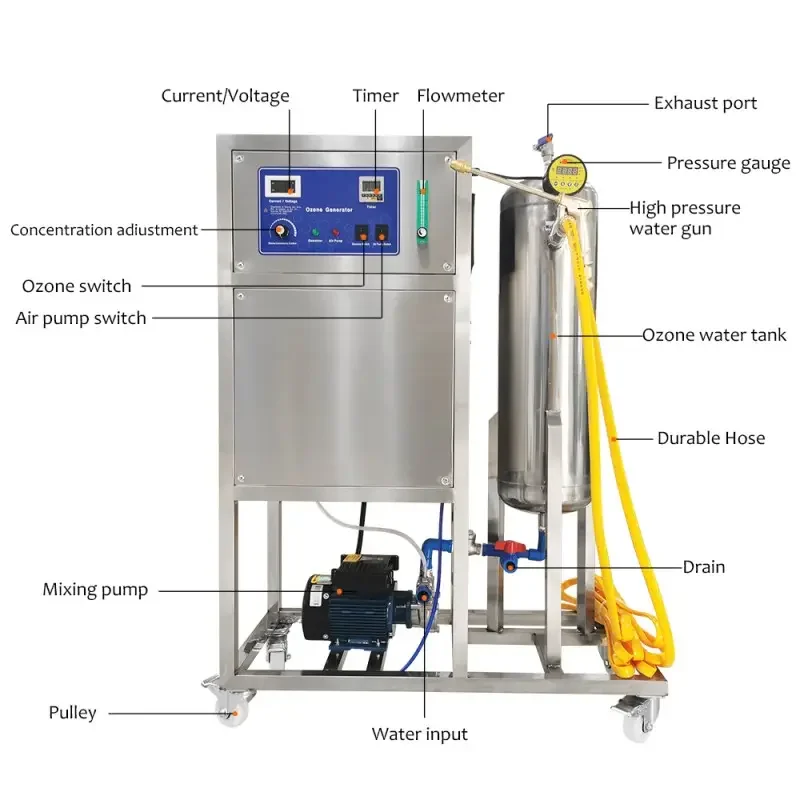

Features:
- Backwater protection device, built-in self-priming gas-liquid mixing pump.
- Adjustable ozone output and water flow.
- The whole machine is movable and easy to operate, only needs to be connected to the water inlet.
- Adopts stainless steel casing, beautiful appearance with strong corrosion resistance and oxidation resistance.
- Safe and clean, no residue, no secondary pollution, instead of chemical disinfectants.
- The high concentration of ozone water can improve the environmental sanitation, reduce the breeding of bacteria, and improve the economic benefits of aquaculture.
- The high concentration of ozone helps to improve the water quality, reduce the breeding of bacteria, and improve the economic benefits of aquaculture.
- Durable robust design, applicable for aquarium and recirculating aquaculture.High ozone water production;
Model | QL-OWS-10G | QL-OWS-20G | QL-OWS-30G | ||
Output | 10G | 20G | 30G | ||
Rated power | 800W | 1200W | 1300W | ||
Ozone concentration | 1-3ppm | 1-4ppm | 1-5ppm | ||
Treatment of water | 0.4-2.8m³/h | 1-3.5m³/h | 1-3.5m³/h | ||
Equipment size | 90*40*110cm | 90*40*131 cm | 90*40*140 cm | ||
Packing size | 101*51*120cm(wooden) | 101*51*137cm(wooden) | 101*61*160(wooden) | ||
N/G | 70/84 kg | 82/104 kg | 96/118 kg | ||
Power supply/voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | ||
Applicable air | oxygen source | oxygen source | oxygen source | ||
