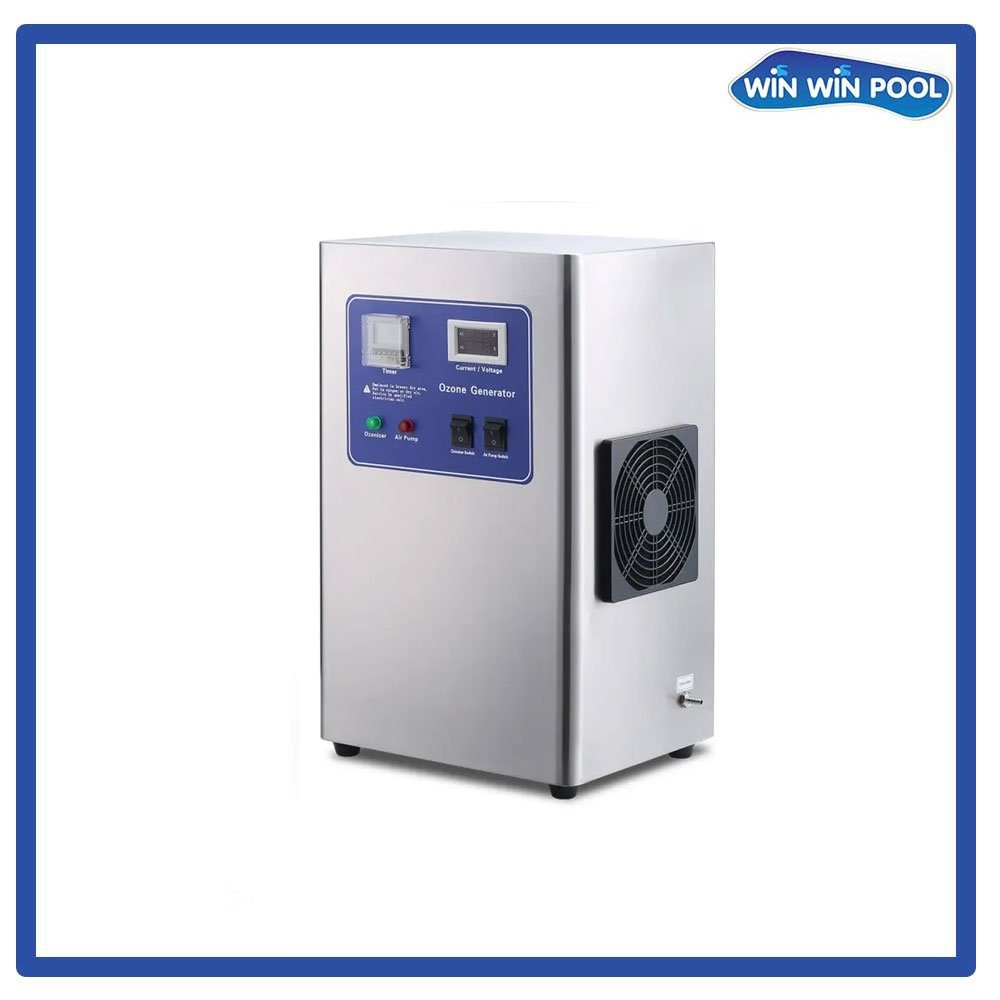

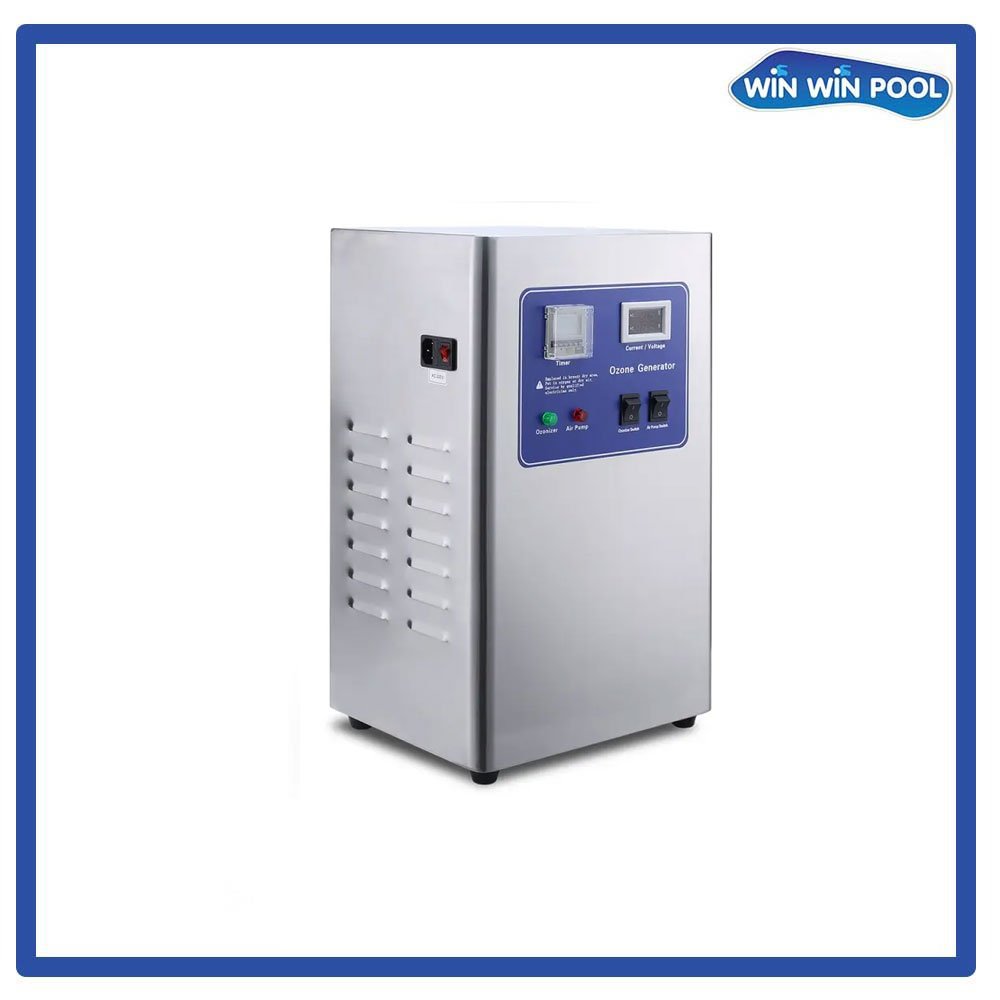

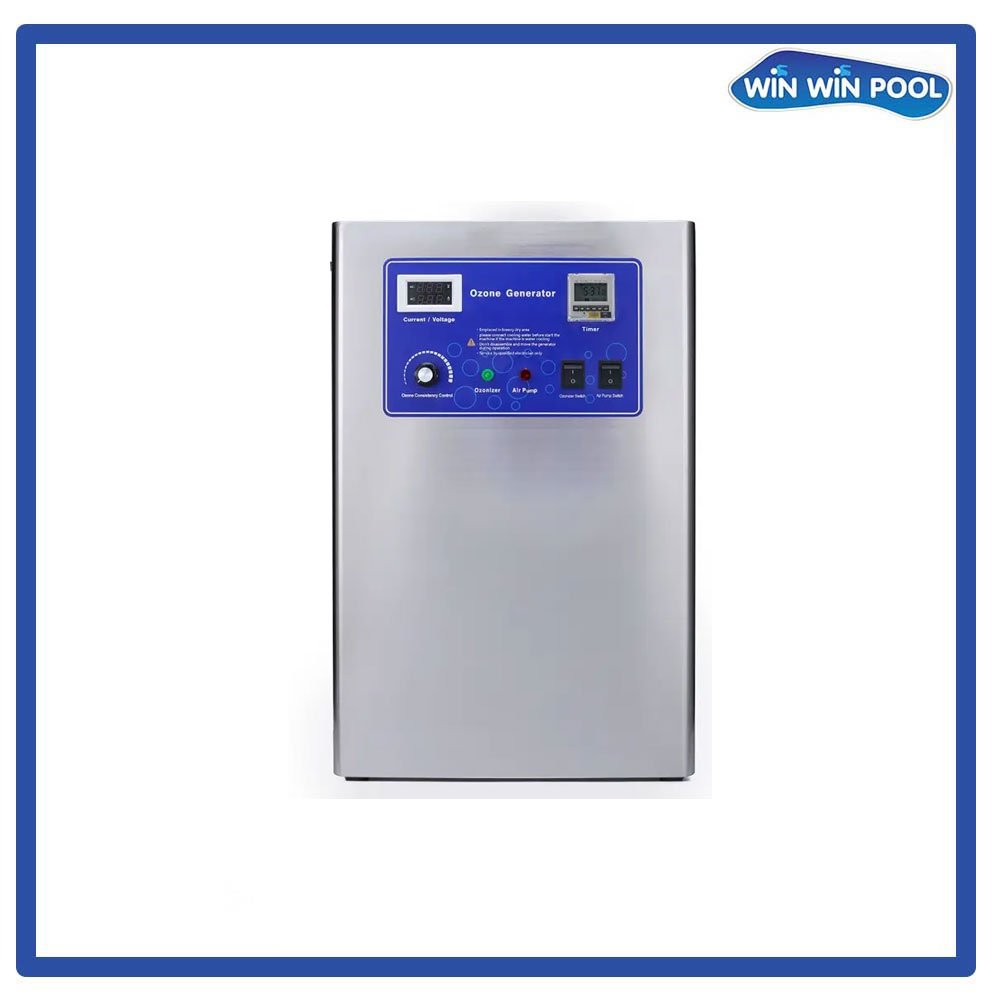

QLA Ozone Generator OZONE GENERATOR
Attribute:
SKU :
Model: QLA Ozone Output: 15G/Hr,20G/Hr,30G/Hr Voltage: 220-240V/50-60Hz Power: 250W,280W,350W Air flow: 50 LPM (air pump) Dimension: 40*30*62.5 cm Net weight: 14 kg Concentration: 15-25 mg/L Ozone ouput adjustable: 10-100% Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel 304
OZONE
Categories : Salt Chlorinator and Disinfection Equipments , Ozone , winwinpool , Air Feeding Ozone Generator , Ozone , Ozone Product ,
Brand : winwinpool
Share
QLA-15G/20G/30G/40G
AIR FEEDING OZONE GENERATOR
Features:
- With ozone concentration regulation function
- The fuselage is made of stainless steel, anti-corrosion and anti-oxidation
- Multifunctional disinfection of space and drinking water
- The tube has high conversion efficiency, low energy consumption, continuous work and long service life
- Air cooling + water cooling double cooling system ensures long time stable operation of main engine
Technical Specifications
Model | QLA-15G | QLA-20G | QLA-30G | QLA-40G |
OzoneOutput | 15G | 20G | 30G | 40G |
Power | 250W | 280W | 350W | 400W |
Purify Area | 50-100m² | 150-250m² | 200-300m² | 300-400m² |
Ozone Connection | Air Souce:15-25 mg/L / External Oxygen Source: 60 - 120 mg/L | |||
Dimension(cm) | 40*30*62 | 40*30*62 | 40*30*72 | 50*40*88 |
Packing size(cm) | 49*37*67.5 cm(carton) | 49*37*67.5 cm(carton) | 40.5*51*77 cm(wooden Box) | 50*60*95 cm(wooden Box) |
NW/GW | 14.2/16.4 kg | 15/17.1 kg | 16.4/25 kg | 39/44kg |
Cooling way | Air Cooling | Air Cooling | Water Cooling | Water Cooling |
Power supply/voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Gas Feeding | Air source(Accept External Oxygen Source) | |||
Applications
