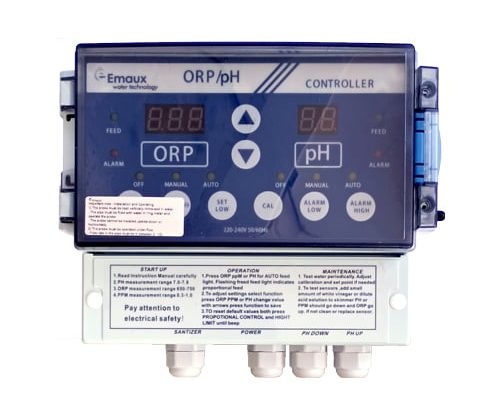

WT500 Series Dual Parameter Water Quality Monitor
Attribute:
SKU : WT500PR
WT500 series water quality monitor can simultaneously measure pH & ORP value by a built-in dual parameter. It automatically controls the chemical dosage when partnered with the CTRL4/CTRL7/CTRL20 dosing pump. (Update 01/02/2025)
Categories : Chemical Pump , EMAUX , Controller and dosing ,
Brand : EMAUX
Share
WT500 Series Dual Parameter Water Quality Monitor
WT500 series water quality monitor can simultaneously measure pH & ORP value by a
built-in dual parameter. It automatically controls the chemical dosage when partnered with the
CTRL4/CTRL7/CTRL20 dosing pump.
Features
1.Simple and convenient parameter setting
2. Timed proportional dosing (PWM function)
3.Remote alarm relay
4.LCD diaplay
5.4-20mA current output (isolated)
| SKU | Model | Measuring Range | Applicable Pool Area | Input Voltage/Frequency |
| 20900510160 | WT500PR* | pH 0-14.0 & ORP 0-1500mV | Standard Pool | 220-240Vac 50/60Hz |
*No Stock, Delivery Time : 60 90 Days
PRODUCT INTRODUCTION
| Item | Specification |
| Operating temperature | 0°C ～+40°C |
| Storage and transport temperature | 0°C ～+65°C |
| Relative humidity | 0%～95%RH（without freeze） |
| pH testing range | 0pH～14pH |
| ORP testing range | 0～999mV |
| pH accuracy | ±pH0.1 |
| ORP accuracy | ±5.0mV |
| Input voltage | AC 220V-240V， 50/60Hz |
| Power | 15W (Water quality Monitor) |
| Operating mode | Manual， Automatic |

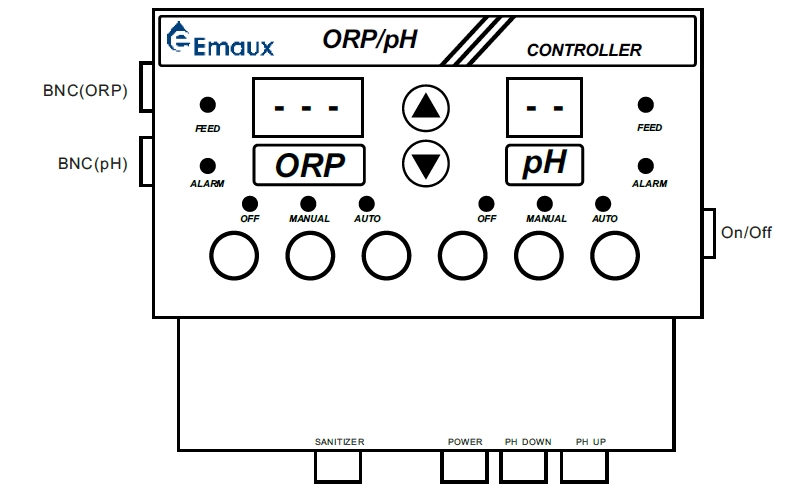

| Output connection | 3 manual dosing pump: Sanitizer (ORP+)， Acid (pH down)， Alk(pH up) |
| Type of dosing pump | AC 220V-240V， 50/60Hz. 50W (max) |
| Display | Segment digit display |
| Size | 214mm（ H） X 185mm（ W） X75mm（ D） |
| Install type | Wall-mounted |
| Weight | 1.1KG(without probes) |
| Casing Material | ABS(outer casing)， PC(transparent cover) |
