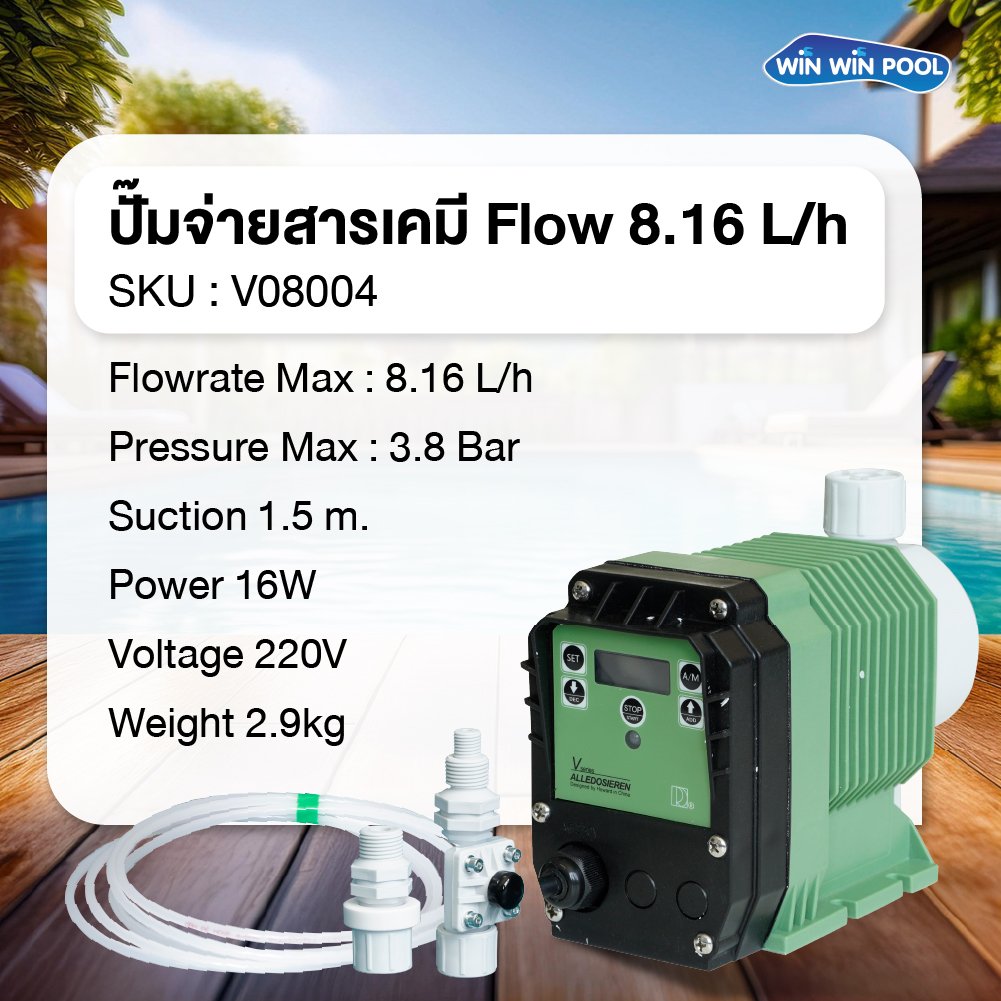

Chemical feed pump 8.16 L/h /Pressure 3.8 Bar Chemical Dosing pump /ALLEDOSIEREN V Series

Attribute:

SKU : V08004

Flowrate : 8.16 L/h ,Pressure Max :3.8 Bar,Suction 1.5 m.,Power 16 W, 2.9kg(Update 14/03/2024)

Categories : Chemical Pump ALLEDOSIEREN

Share

 มีสินค้าใน Shopee


Chemical Dosing Pump  Model V Series

ปั๊มสูบจ่ายสารเคมี

Model :
 08004
Flowrate  (L/H)  8.16  L/h
Pressure  Bar  3.8 Bar
Stroke  (N/m)  160 N/m
Liquid End หัวปั๊ม :  PP
Suction (M)   1.6 M.
Suction Valve :  PP เกลี่ยว 1/2"
ischarge Valve :  PP เกลียว 1/2"
Foot Valve :  PP เกลียว 1/2"
Inject Valve :  PP เกลียว 1/2"
Suction Tube (สายดูด)  PVC 4x6 mm ยาว 1.6m
Discharge Tube(สายจ่าย)  PE 4x6mm ยาว 3.2m
Drain Tube (สายเดรนอากาศไล่ลม)  PVC 4x6mm ยาว 0..8m
Power:  12 W.
Voltage :  220v.
น้ำหนัก Weight  :   2.9kg
ขนาดกล่อง Size(WxLxH)   24cm x 28cm x 16cm

Download

 Manual
