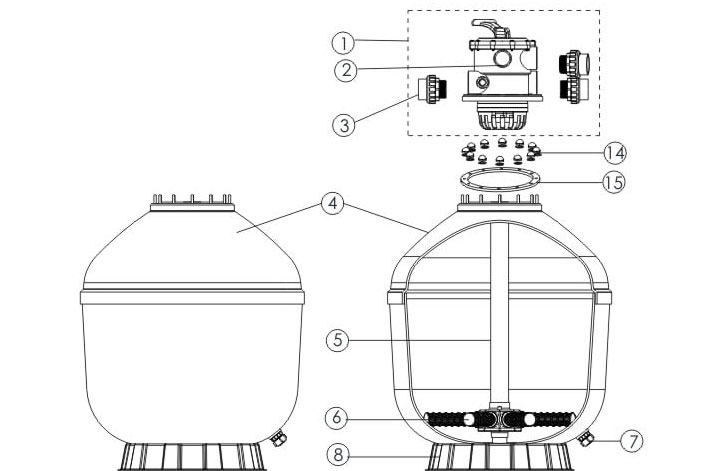

VOLUMETRIC SERIES FILTER REPLACEMENT PARTS

KEY NO. PART NO.DESCRIPTIONSPIECE (S) REQUIRED Price
1 88281550B6 Way 1.5" Top Mount Valve (Black)1          6,050
1 88281551B6 Way 2" Top Mount Valve (Black)1          8,470
2 06011031Maximum 100PSI Indication, Stainless Steel Casing1             770
2 E190109Connector for Pressure Gauge/Stopper1                55
3 89280102B1.5" union set (Black) with O-ring3 Refer to price list
3 89280102W1.5" union set (White) with O-ring3 Refer to price list
3 89280103B2" union set (Black) with O-ring3 Refer to price list
3 89280103W2" union set (White) with O-ring3 Refer to price list
4 03021035M6 Nut1             110
5 89012512Clamp Kit1          1,210
6 01111101Star-Shaped Nut1             110
7 112000017M6×125mm Screws1             165
8 111000016O-Ring1             132
9 E010501Filter Tank for T450 with base1 -
9 E010502Filter Tank for T500 with base1 -
9 E010503Filter Tank for T600/T600B with base1 -
9 E010504Filter Tank for T700/T700B with base1 -
10 E010118Lateral Assembly with Center Pipe for T4501             880
10 E010119Lateral Assembly with Center Pipe for T5001             990
10 E010120Lateral Assembly with Center Pipe for T6001             990
10 E010121Lateral Assembly with Center Pipe for T7001          1,100
10 E010122Lateral Assembly with Center Pipe for T600B1          1,100
10 E010123Lateral Assembly with Center Pipe for T700B1          1,210
11 01172007Laterals (115mm) for T450/T500/T600/T7008             110
11 01173078Laterals (148mm) for T600B/T700B8             110
12 01172008Laterals (126mm) for T450/T500/T600/T700/T600B/T700B8             110
13 E010024Water Drain Set for T Series1             165
14 01112133Filter Base T450/T5001          1,540
14 01112134Filter Base T600/T700/T600B/T700B1          2,200
15 01018066Nut for Filter Base1             132
