Product Description

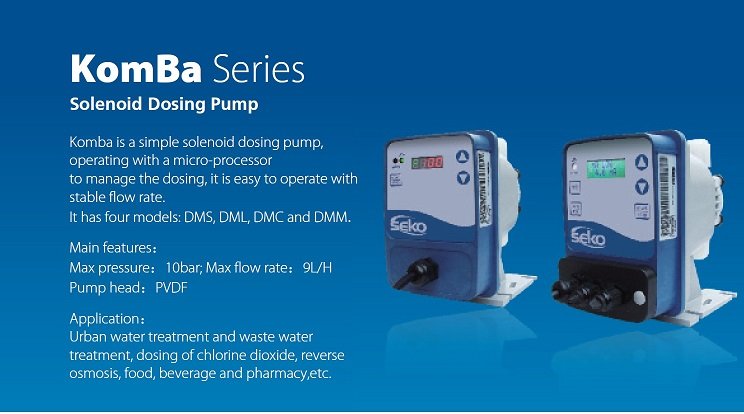

KomBa DMS200 Electromagnetic Dosing Pump

KomBa series
KomBa is a simple yet reliable series of micro-processor based digital display type analogue solenoid dosing pumps. It includes DMS,DML,DMC and DMM series.

Main features:
Max pressure: 10 bar; Max flow: 9 L/H; pump head: PVDF

Application area:
Municipal water treatment and waste water treatment, Chlorine dioxide dosing,reverse osmosis,food,drink and pharmaceutical industry etc.

Strong compatibility
Standard Configuration: PVDF pump head and ceramic ball valve
.PVDF pump head can compatible with almost all chemicals for industry,waste water treatmentand drinking water area.
.Using ceramic ball valve can improve the reliability of dosing and the chemical compatibility of whole liquid end.

Reliability
All SEKO pumps are tested using modern technologies; their reliability is assured through use of high quality materials, intensive laboratory tests and life stress tests. Every pump is operated 6 hours at maximum speed before the final test. Test Certificate with pressure/flow rate diagram made under customer specification is available as an option.

Dosing mode
Flow manual control or automatic control (signal input control)
DML, DMM and DMC have liquid probe interfaces.
Manual exhaust valve can assist pulse-on the pump.
quid contacted


Liquid contacted materials
Pump head: PVDF
Valve balls: ceramic
Seals: FPM/EPDM
Diaphragm: PTFE

Installation method
Horizontal installation
Wall-hung type (need mounting brackets)





SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR

Parameter

TypeDiaphragmPTFE
The flow rate3L/H9l/h
Net Power14w
DetailsGW2.3KG
In/Out(mm)6*4hose
Max frequency160(stroke/min)

Certificate and performance

CEISO9001
DMSDMLDMM
ManualFluid levelAuot



Main Features
  All SEKO pumps are tested using modern technologies; their reliability is assured through use of high quality materials,

  intensive laboratory tests and life stress tests. Every pump is operated 6 hours at maximum speed before the final test.

  Test Certificate with pressure/flow rate diagram made under customer specification is available as an option.



Standard installation accessories

Foot filter (PVDF)

(PVDF) size (G3 / 8’’and G1 / 2’’)

2M ∅4*6  PE tube (delivery tube)

4M  ∅4*6  PVC tube(suction tube)
