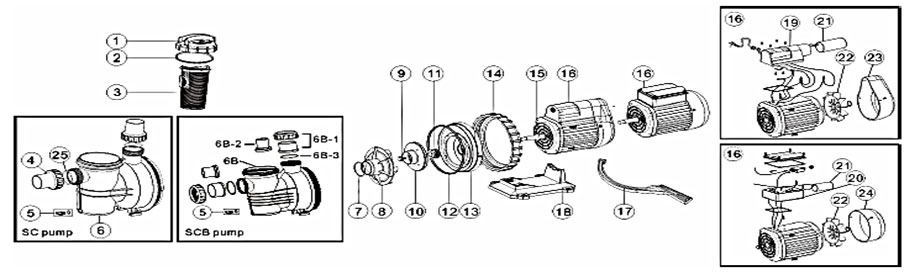

| KEY NO. | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED | Price 2023 (03/03/2023) | Website | สมาชิก | ||||||||||||||||||
| 1 | 01041043 | Transparent Lid | 1 | 1,089.00 | 654.00 | 632.00 | ||||||||||||||||||
| 2 |  | 02021088 | O-Ring for Lid | 1 | 462.00 | 278.00 | 268.00 | |||||||||||||||||
| 3 |  | 01111076 | Basket (Big) | 1 | 462.00 | 278.00 | 268.00 | |||||||||||||||||
| 4* |  | 89280105 | 1.5" Union (Black/ White Colour) | 2 | 891.00 | 535.00 | 517.00 | |||||||||||||||||
| 5 |  | 89021307 | Drain Plug With O-Ring | 1 | 249.00 | 150.00 | 145.00 | |||||||||||||||||
| 6 |  | 1111006 | SC Pump Body | 1 | 9,064.00 | 5,439.00 | 5,258.00 | |||||||||||||||||
| 6B | 1111004 | SCB Pump Body | 1 | 9,100.00 | 5,460.00 | 5,278.00 | ||||||||||||||||||
| 6B-1 | E190137 | 2" Union | 2 | 1,798.00 | 1,079.00 | 1,043.00 | ||||||||||||||||||
| 6B-2 | 01171155 | 1.5" Union Adaptor | 2 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 6B-3 | 2020016 | O-Ring for 2" Union | 2 | 165.00 | 99.00 | 96.00 | ||||||||||||||||||
| 7 |  | 2011105 | O-ring for Diffuser | 1 | 249.00 | 150.00 | 145.00 | |||||||||||||||||
| 8 |  | 1111009 | Diffuser | 1 | 462.00 | 278.00 | 268.00 | |||||||||||||||||
| 9 |  | 89021704 | Impeller Screw with O-ring | 1 | 216.00 | 130.00 | 126.00 | |||||||||||||||||
| 10 |  | 01311007 | Impeller SC050(110V/60HZ) & (220V/60HZ) | 1 | 1,798.00 | 1,079.00 | 1,043.00 | |||||||||||||||||
| 10 | | 01311008 | Impeller SC075(110V/60HZ) & (220V/60HZ) | 1 | 1,798.00 | 1,079.00 | 1,043.00 | |||||||||||||||||
| 10 | | 01311009 | Impeller SC050(220V/50HZ) & (380V/50HZ)/ SC100(110V/60HZ) & (220V/60HZ) | 1 | 1,798.00 | 1,079.00 | 1,043.00 | |||||||||||||||||
| 10 | | 01311010 | Impeller SC075(220V/50HZ) & (380V/50HZ)/ SC150(110V/60HZ) & (220V/60HZ) | 1 | 1,798.00 | 1,079.00 | 1,043.00 | |||||||||||||||||
| 10 | | 01311011 | Impeller SC100(220V/50HZ) & (380V/50HZ)/ SC200(110V/60HZ) & (220V/60HZ) | 1 | 1,798.00 | 1,079.00 | 1,043.00 | |||||||||||||||||
| 10 | | 01311012 | Impeller SC150(220V/50HZ) & (380V/50HZ) | 1 | 1,798.00 | 1,079.00 | 1,043.00 | |||||||||||||||||
| 10 | | 01311013 | Impeller SC200(220V/50HZ) & (380V/50HZ) | 1 | 1,798.00 | 1,079.00 | 1,043.00 | |||||||||||||||||
| 11 |  | E020001 | 3/4″Mechanical seal - Year2022 | 1 | 1,813.00 | 1,088.00 | 1,052.00 | |||||||||||||||||
| 12 |  | 02011089 | O-Ring for Flange | 1 | 462.00 | 278.00 | 268.00 | |||||||||||||||||
| 13 |  | 01111008 | SC Pump Flange | 1 | 1,813.00 | 1,088.00 | 1,052.00 | |||||||||||||||||
| 14 |  | 01021014 | Ring Lock Nut | 1 | 1,813.00 | 1,088.00 | 1,052.00 | |||||||||||||||||
| 15 |  | 2011096 | Motor Slinger | 1 | 216.00 | 130.00 | 126.00 | |||||||||||||||||
| 16 | 89021705 | Motor SC050(220V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021706 | Motor SC075(220V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021707 | Motor SC100(220V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021708 | Motor SC150(220V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021709 | Motor SC200(220V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021801 | Motor SC050(220V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021802 | Motor SC075(220V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021803 | Motor SC100(220V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021804 | Motor SC150(220V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021805 | Motor SC200(220V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89022001 | Motor SC050(380V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89022002 | Motor SC075(380V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89022003 | Motor SC100(380V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89022004 | Motor SC150(380V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89022005 | Motor SC200(380V/50HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021901 | Motor SC050(110V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021902 | Motor SC075(110V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021903 | Motor SC100(110V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021904 | Motor SC150(110V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 16 | 89021905 | Motor SC200(110V/60HZ) | 1 | ติดต่อฝายขาย | ||||||||||||||||||||
| 17 |  | 01021022 | Opening Key | 1 | 462.00 | 278.00 | 268.00 | |||||||||||||||||
| 18 |  | 01111007 | Base | 1 | 1,089.00 | 654.00 | 632.00 | |||||||||||||||||
| 19 |  | 89021311 | Cable Box for SC Pump | 1 | 1,452.00 | 872.00 | 843.00 | |||||||||||||||||
| 20 | 89021505 | Cable Box for SC/SS/ ST/ SD 110V | 1 | 2,176.00 | 1,306.00 | 1,263.00 | ||||||||||||||||||
| 21 | 4016019 | Capacitor for SC050 & SS/SD/SQ/ST075 Pump (110V) | 1 | 3,989.00 | 2,394.00 | 2,314.00 | ||||||||||||||||||
| 21 | 4016021 | Capacitor for SC075 & SS/SD/SQ/ST100-124 Pump (110V) | 1 | 5,258.00 | 3,155.00 | 3,050.00 | ||||||||||||||||||
| 21 | 04016022 | Capacitor for SR/SB10-15 & SC100-150 Pump (110V) | 1 | 5,258.00 | 3,155.00 | 3,050.00 | ||||||||||||||||||
| 21 | 4016023 | Capacitor for SR/SB20-30 & SC200 Pump (110V) | 1 | 5,621.00 | 3,373.00 | 3,261.00 | ||||||||||||||||||
| 21 | 4016010 | Capacitor for SS/SD/SQ/SP/ST075 & SC050 P ump | 1 | 1,813.00 | 1,088.00 | 1,052.00 | ||||||||||||||||||
| 21 | 4016012 | Capacitor for SS/SD/SQ/SP/ST100-120/ SC075 | 1 | 2,359.00 | 1,416.00 | 1,369.00 | ||||||||||||||||||
| 21 | 04016014 | Capacitor for SB/SR10,SB15/ SC100/ SC150 | 1 | 2,902.00 | 1,742.00 | 1,684.00 | ||||||||||||||||||
| 21 | 04016015 | Capacitor for SB/SR20 & SC/EPH200 & SPH200 Pump | 1 | 3,265.00 | 1,959.00 | 1,894.00 | ||||||||||||||||||
| 22 |  | 01031007 | Cooling Fan for SC SB/SR10,SB/SR15 | 1 | 249.00 | 150.00 | 145.00 | |||||||||||||||||
| 23 |  | 1031009 | Fan Cover for SB/SR10,SB/SR15 Pump | 1 | 1,089.00 | 654.00 | 632.00 | |||||||||||||||||
| 24 | | 1031002 | Fan Cover for SB/SR10,SB/SR15 Pump | 1 | 1,089.00 | 654.00 | 632.00 | |||||||||||||||||
| 25 |  | 2011104 | O-Ring for 1.5" Union | 2 | 249.00 | 150.00 | 145.00 | |||||||||||||||||
