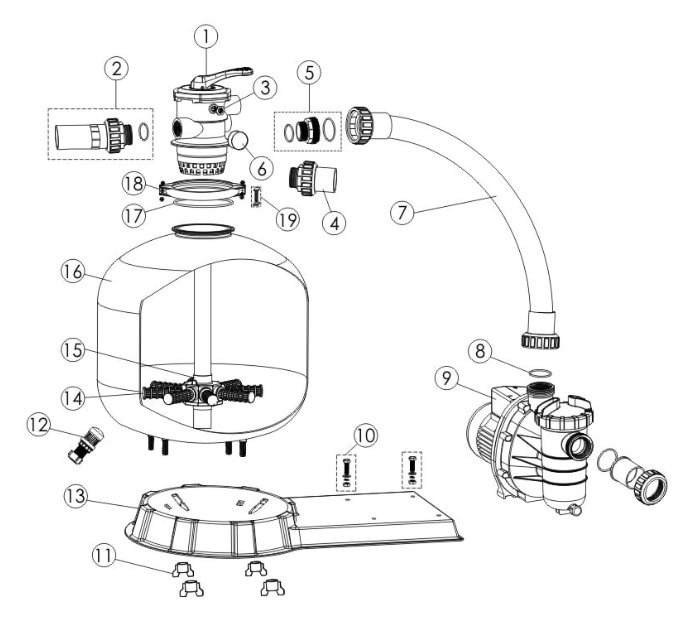

| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED | Price 2023 (รวม VAT) | Website | สมาชิก | ||||||||||||||||
| 1* | 88280105B | 1.5" Top Mount Valve (Black/ White Colour) | 1 | ติดต่อฝ่ายขาย | |||||||||||||||||||
| 2* | 20650510005 | 89280101 | 1.5" Unionwith Sight Glass and O-Ring (Black/ White colour) | 1 | 973.00 | 584.00 | 565.00 | ||||||||||||||||
| 3 | 20320510010 | 01111048 | Connector for Pressure Gauge/Stopper | 1 | 84.00 | 51.00 | 49.00 | ||||||||||||||||
| 4* | 20651610045 | 89280102 | 1.5" union set with O-ring (Black) | 3 | 907.00 | 545.00 | 527.00 | ||||||||||||||||
| 5 | 20320510013 | 89032102 | 1.5" Bulkhaed Fitting with O-Ring | 1 | 462.00 | 278.00 | 268.00 | ||||||||||||||||
| 6 | 20320511020 | 06011029 | Maximum 40PSI Indication, Stainless Steel Casing | 1 | 1,633.00 | 980.00 | 948.00 | ||||||||||||||||
| 7 | 20320510990 | 89032103 | FSF400-6W Plastic Hose with Nut | 1 | 1,155.00 | 693.00 | 670.00 | ||||||||||||||||
| 7 | 20320510995 | 89032201 | FSF450-6W Plastic Hose with Nut | 1 | 1,155.00 | 693.00 | 670.00 | ||||||||||||||||
| 7 | 20320511000 | 89032301 | FSF500-6W Plastic Hose with Nut | 1 | 1,155.00 | 693.00 | 670.00 | ||||||||||||||||
| 7 | 20320511005 | 89032401 | FSF650-6W Plastic Hose with Nut | 1 | 1,402.00 | 842.00 | 814.00 | ||||||||||||||||
| 8 | 20320510970 | 02011104 | O-Ring for 1.5" Union | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||
| 9 | 88022403 | Pump 0.50hp, 220V/50Hz, Single Phase | 1 | ติดต่อฝ่ายขาย | |||||||||||||||||||
| 9 | 88022404 | Pump 0.75hp, 220V/50Hz, Single Phase | 1 | ติดต่อฝ่ายขาย | |||||||||||||||||||
| 9 | 88021705 | Pump 1.00hp, 220V/50Hz, Single Phase | 1 | ติดต่อฝ่ายขาย | |||||||||||||||||||
| 9 | 88021707 | Pump 1.50hp, 220V/50Hz, Single Phase | 1 | ติดต่อฝ่ายขาย | |||||||||||||||||||
| 10 | 20320510975 | 89032001 | Pump Assembly Screw | 2 | 693.00 | 416.00 | 402.00 | ||||||||||||||||
| 11 | 20320511185 | 01181052 | Fastener for Filter Base | 4 | 462.00 | 278.00 | 268.00 | ||||||||||||||||
| 12 | 20320511190 | 89010107 | Water Drain Set | 1 | 744.00 | 447.00 | 432.00 | ||||||||||||||||
| 13 | 20320511010 | 01111053 | FSP/F400-6W - FSP/F650-6W Combo Base | 1 | 3,791.00 | 2,275.00 | 2,199.00 | ||||||||||||||||
| 14 | 20320510110 | 01172007 | Laterals(115mm) | 8 | 249.00 | 150.00 | 145.00 | ||||||||||||||||
| 14 | 20320510115 | 01172008 | Laterals (126mm) | 8 | 249.00 | 150.00 | 145.00 | ||||||||||||||||
| 15 | 20320511015 | 89010116 | V400 Lateral Assembly with Center Pipe | 1 | 1,155.00 | 693.00 | 670.00 | ||||||||||||||||
| 15 | 20320511110 | 89010105 | V450 Lateral Assembly with Center Pipe | 1 | 1,155.00 | 693.00 | 670.00 | ||||||||||||||||
| 15 | 20320511115 | 89010104 | V500 Lateral Assembly with Center Pipe | 1 | 1,402.00 | 842.00 | 814.00 | ||||||||||||||||
| 15 | 20320511120 | 89010103 | V650 Lateral Assembly with Center Pipe | 1 | 1,402.00 | 842.00 | 814.00 | ||||||||||||||||
| 16 | 20320510165 | 89010113 | V400 Filter tank | 1 | ติดต่อฝ่ายขาย | ||||||||||||||||||
| 16 | 20320510170 | 89010112 | V450Filter Tank | 1 | ติดต่อฝ่ายขาย | ||||||||||||||||||
| 16 | 20320510175 | 89010111 | V500 Filter tank | 1 | ติดต่อฝ่ายขาย | ||||||||||||||||||
| 16 | 20320510180 | 89010110 | V650 Filter tank | 1 | ติดต่อฝ่ายขาย | ||||||||||||||||||
| 17 | 20320510155 | 02011134 | O-Ring for Filter Neck | 1 | 462.00 | 278.00 | 268.00 | ||||||||||||||||
| 18 | 20320511030 | 01271010 | Clamp Lock | 2 | 462.00 | 278.00 | 268.00 | ||||||||||||||||
| 19 | 20320511105 | 89010119 | M6*50 Screws with Nut | 2 | 462.00 | 278.00 | 268.00 | ||||||||||||||||
