WINWINPOOL POOL PAINT SYSTEM 75SQ–200 MICRONS 5 COATS
SKU : POOL-PAINT-SET75SQ-200
0 Sold
Quantity
Short Description
WINWINPOOL POOL PAINT SYSTEM 75SQ–200 MICRONS for a painted area of approx. 72–75 m² (e.g. a 4 × 8 × 1.5 m pool, approx. 50 m³). A 5-coat system: 2 coats of Concrete Sealer epoxy primer, 2 coats of Unithane W-4000 polyurethane topcoat and 1 final coat of W-4000 Clear, for a target total dry film of approx. 200 microns.
✔ Concrete Sealer A+B – 5 sets (10 cans) for 2 primer coats
✔ Unithane W-4000 A+B – 5 sets (10 cans) for 2 topcoats
✔ W-4000 Clear A+B – 3 sets (6 cans) for the final clear coat
✔ Thinner W-M68 and W-M22 – 1 gallon each, matched to each coating
✔ Concrete moisture meter – 1 unit
✔ 29 pieces in total, with allowance for mixing, absorption and site losses
✔ Up to 3-year warranty, subject to company terms
Product Details
WINWINPOOL POOL PAINT SYSTEM 75SQ200 MICRONS is a swimming pool paint kit for a painted area of approx. 7275 m², or a reference pool of about 4 × 8 × 1.5 m (approx. 50 m³).
The system is applied in 5 coats: 2 coats of Concrete Sealer epoxy primer, 2 coats of Unithane W-4000 polyurethane topcoat and 1 coat of W-4000 Clear, targeting 40 microns per coat about 200 microns in total.
Quantities allow for losses in mixing, containers, rollers, surface roughness and absorption. Suitable for correctly prepared concrete, with moisture checked before every coat.
Key Benefits
Who Is It For?

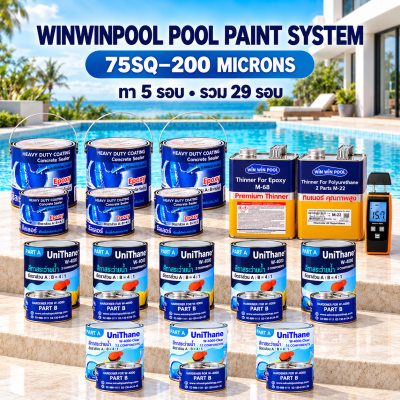

What's in the Kit (29 Pieces)
| Item | Qty | Total volume | Use |
|---|---|---|---|
| Concrete Sealer A+B Epoxy primer · 5 large A + 5 small B | 5 sets 10 cans | ~18.93 L | 2 primer coats |
| Unithane W-4000 A+B Polyurethane topcoat · 5 tall A + 5 short B | 5 sets 10 cans | 15 L | 2 topcoats |
| W-4000 Clear A+B Final clear coat · 3 large A + 3 small B | 3 sets 6 cans | 9 L | 1 clear coat |
| Thinner W-M68 For epoxy | 1 gallon | 3.785 L | Use with Concrete Sealer |
| Thinner W-M22 For polyurethane | 1 gallon | 3.785 L | Use with Unithane W-4000 |
| Concrete moisture meter | 1 unit | Check before every coat |
29 pieces: 10 Concrete Sealer cans + 10 W-4000 cans + 6 W-4000 Clear cans + 2 gallons of thinner + 1 moisture meter
The 5-Coat System
* The clear-coat thickness is a system target confirm against the latest W-4000 Clear TDS and trial on site before use.
How We Calculate Area and Paint Quantity
Walls (4 + 8 + 4 + 8) × 1.5 = 36 m²
Total 68 m² 75 m² kit, allowing for steps, benches and pool details
150 ÷ 52 2.88 sets (theoretical)
Supplied: 5 sets for thickness control, absorption and site losses
150 ÷ 41 3.66 sets (theoretical)
Supplied: 5 sets for continuous thickness
= 1.882.50 sets
Supplied: 3 sets for one continuous coat
Coverage values are estimates. Actual results depend on roughness, porosity, application method, tools and conditions.
Film Thickness Control
WFT = 40 ÷ 0.55 73 microns per coat
5 coats total: ~200 microns
Check with a wet film comb during application, and confirm each product's volume solids from its latest technical data sheet.
Surface Requirements Before Painting
- New concrete should cure for at least 28 days, with no hydrostatic pressure behind the coating
- The surface must be sound, clean and dry free from dust, oil, grease, algae, efflorescence and deteriorated old paint
- Sand or grind to open the surface for good adhesion, and repair cracks, voids and joints
- Before every coat, check moisture with the concrete moisture meter at several points especially the floor, deep end, corners and repairs
| Check | Limit |
|---|---|
| Concrete moisture | No more than 4% (% meters) or per the meter and product manufacturer |
| Relative humidity | No more than 85% |
| Surface condition | No water droplets |
| Surface temperature | At least 3°C above dew point |
Mixing and Using Thinners
- Stir Part A until uniform, add Part B at the label ratio, and mix at low speed until even
- Mix only what you can use within the pot life
- Never add extra A or B by eye
- Never pour mixed paint back into the original can
Add thinner only as needed for the application method and weather. Over-thinning causes thin film, runs and reduced performance. Never use the wrong thinner.
5-Coat Application Steps
Wait times referenced at approx. 23°C and vary with temperature, humidity, ventilation and surface conditions.
Note on W-4000 Clear Thickness
Recommended Tools
The concrete moisture meter is already included in the kit.
Safety and Conditions
- Products and thinners are flammable use in well-ventilated areas, away from flames, sparks and heat sources
- Wear gloves, goggles, a vapour respirator and suitable protective equipment; avoid skin contact and inhalation
- Do not paint on wet surfaces, surfaces under hydrostatic pressure, or concrete that has not fully cured
- Quantities and times are guidance and may vary with temperature, humidity, ventilation and actual surface conditions
- Check the label and the latest product data sheet before use
Not covered: structural cracking, hydrostatic back-pressure, excess moisture, improper surface preparation or mixing, and unsuitable water quality.
Frequently Asked Questions
Want to check the right paint quantity for your pool?
Send us your pool's width × length × depth or photos of the surface, and our team will calculate the area and recommend a kit.
