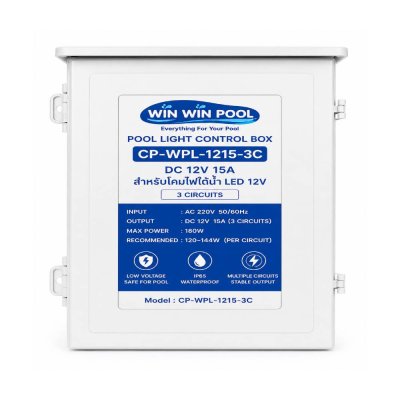

WIN WIN POOL Pool Light Control Box DC 12V 15A Model CP-WPL-1215-3C for 12V LED Underwater Pool Lights, 3 Circuits
SKU : CP-WPL-1215-3C
0 Sold
Quantity
Short Description
WIN WIN POOL CP-WPL-1215-3C is a 12V 15A pool light control box designed for 3 separated LED underwater pool light circuits. It is suitable for residential pools, Jacuzzi, spa, and small-to-medium pool lighting applications.
12V LED Underwater Pool Light Control Box, 3 Separate Circuits
WIN WIN POOL CP-WPL-1215-3C is designed for 12V LED underwater pool lights with 3 separate circuits. It is suitable for small residential pools, spas, Jacuzzis, fish ponds, and fountains with relatively low electrical loads. It supports a maximum power of 180W, with a recommended actual total lighting load not exceeding 126144W to help reduce heat and extend equipment life.
3 Separate Circuits
Divides 12V LED underwater pool lights into 3 separate circuits, keeping wiring organized, simplifying inspection, and making each circuit easier to maintain.
DC 12V Low Voltage
Provides DC 12V output, suitable for 12V LED underwater lights and applications in areas near water.
Maximum Power 180W
Supports a maximum power of 180W, with a recommended actual total load of 126144W. Suitable for small to medium-sized pools for improved performance and longer equipment life.
RCBO Leakage Protection
An RCBO on the AC 220V side helps improve electrical safety around swimming pools and other areas near water.
Separate Fuse for Each Circuit
If a circuit develops a fault, its fuse isolates only that circuit without affecting the entire system, making inspection and maintenance easier.
Easy-Wiring Terminal Block
The terminal block keeps wiring organized, makes inspection easier, and is suitable for professional installations.
CP-WPL-1215-3C Specifications
Pool Light Control Box DC 12V 15A for 12V LED Underwater Pool Lights, 3 Circuits
It is recommended that the combined wattage of all lights remain within this range to help reduce heat and extend equipment life.
WIN WIN POOL CP-WPL-1215-3C
WIN WIN POOL CP-WPL-1215-3C is a 12V 15A pool light control box designed for 3 separate LED underwater pool light circuits. It is suitable for residential pools, Jacuzzi, spa, and small-to-medium pool lighting applications.
This model supports up to 180W, with a recommended total lighting load of 126144W for better performance, reduced heat, and longer equipment life. The 3-circuit design provides cleaner wiring, easier troubleshooting, and better protection for each lighting circuit.
WIN WIN POOL Light Control Box SKU Code Structure
The product code identifies the control box type, voltage, current, number of circuits, and whether a timer is included.
Product Model Comparison Table
| SKU | Output | Max Power | Recommended Load | Circuits | Timer |
|---|---|---|---|---|---|
| CP-WPL-1205-1C | DC 12V 5A | 60W | 42 - 48W | 1 Circuit | No |
| CP-WPL-1205-1C-T | DC 12V 5A | 60W | 42 - 48W | 1 Circuit | Yes |
| CP-WPL-1210-2C | DC 12V 10A | 120W | 84 - 96W | 2 Circuits | No |
| CP-WPL-1210-2C-T | DC 12V 10A | 120W | 84 - 96W | 2 Circuits | Yes |
| CP-WPL-1215-3C | DC 12V 15A | 180W | 126 - 144W | 3 Circuits | No |
| CP-WPL-1215-3C-T | DC 12V 15A | 180W | 126 - 144W | 3 Circuits | Yes |
| CP-WPL-1240-5C | DC 12V 40A | 480W | 320 - 360W | 5 Circuits | No |
| CP-WPL-1240-5C-T | DC 12V 40A | 480W | 320 - 360W | 5 Circuits | Yes |
Important Guide to the Number of Pool Lights
The actual number of lights that can be used depends on the wattage of each light model, such as 6W, 9W, 12W, 18W, 24W, 35W, or 40W. Calculate the combined wattage of all lights and ensure it does not exceed the control boxs recommended load.
For CP-WPL-1215-3C, the recommended total lighting load should not exceed 126144W.
Calculation Examples
Control Box Selection Guide by Total Lighting Wattage
| SKU | Max Power | Recommended Load | Suitable Total Wattage of All Lights |
|---|---|---|---|
| CP-WPL-1205-1C | 60W | 42 - 48W | Not exceeding 42 - 48W |
| CP-WPL-1205-1C-T | 60W | 42 - 48W | Not exceeding 42 - 48W |
| CP-WPL-1210-2C | 120W | 84 - 96W | Not exceeding 84 - 96W |
| CP-WPL-1210-2C-T | 120W | 84 - 96W | Not exceeding 84 - 96W |
| CP-WPL-1215-3C | 180W | 126 - 144W | Not exceeding 126 - 144W |
| CP-WPL-1215-3C-T | 180W | 126 - 144W | Not exceeding 126 - 144W |
| CP-WPL-1240-5C | 480W | 320 - 360W | Not exceeding 320 - 360W |
| CP-WPL-1240-5C-T | 480W | 320360W | Not exceeding 320 - 360W |
WIN WIN POOL Pool Light Control Box

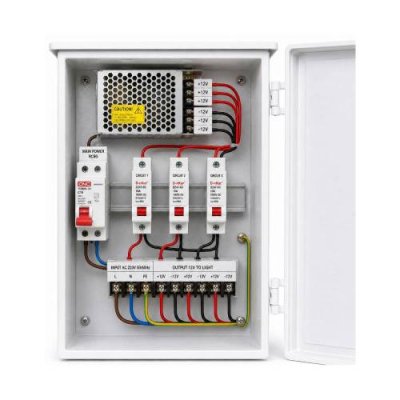

WIN WIN POOL pool light control boxes are specifically designed for 12V LED underwater pool lights. They use a low-voltage DC 12V system with RCBO protection, separate circuit fuses, and terminal blocks for neat and organized wiring. Suitable for residential swimming pools, pool villas, resorts, hotels, fish ponds, fountains, Jacuzzis, and spas.
WIN WIN POOL Pool Light Control Box is specially designed for 12V LED underwater pool lights. It provides low-voltage DC 12V output, equipped with RCBO protection, circuit fuse protection, and clearly labeled terminal blocks for clean and easy installation.
WIN WIN POOL Everything For Your PoolLet Our Team Check the Total Wattage and Recommend the Right Model for Your Installation
Provide the number of lights, wattage per light, lighting voltage/system, and cable run length so our team can recommend the most suitable DC 12V pool light control box.
