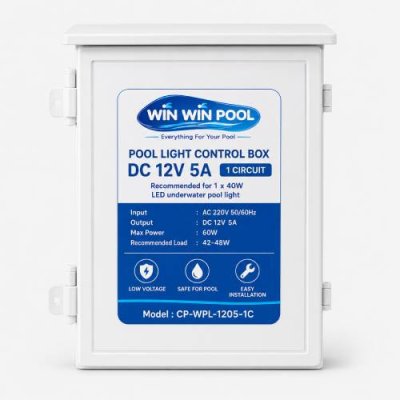

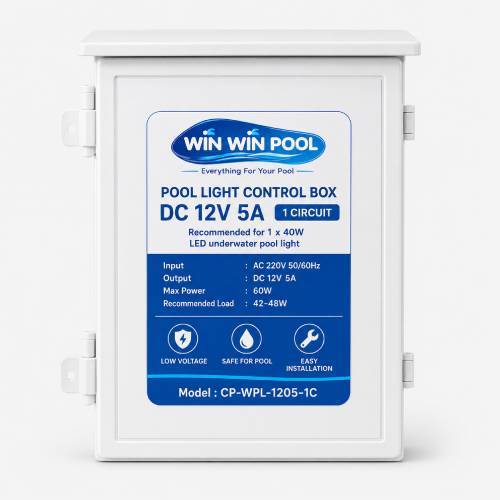

WIN WIN POOL Pool Light Control Box DC 12V 5A Model CP-WPL-1205-1C for 12V LED Underwater Pool Light, 1 Circuit
SKU : CP-WPL-1205-1C
0 Sold
Quantity
Short Description
WIN WIN POOL CP-WPL-1205-1C is a compact DC 12V 5A pool light control box designed for one 12V LED underwater light circuit. It supports up to 60W with a recommended operating load of 42–48W. Equipped with RCBO and DC fuse protection for enhanced electrical safety, it is ideal for small swimming pools, fish ponds, fountains, Jacuzzis, spas, and other low-voltage underwater lighting applications.
A Control Box for 12V LED Underwater Lights

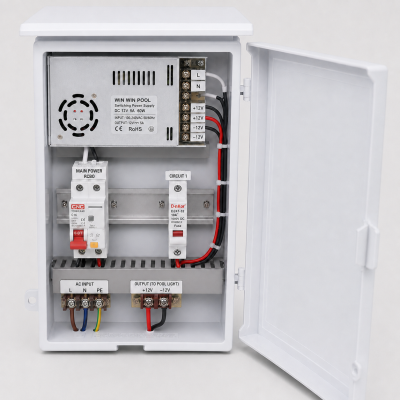

The WIN WIN POOL CP-WPL-1205-1C is a compact pool light control box designed for one 12V LED underwater light circuit. It's suitable for small pools, fish ponds, fountains, Jacuzzis, or spa areas with low-load underwater lighting applications. The unit converts AC 220V to DC 12V using a switching power supply and includes RCBO protection plus a DC fuse for safer, cleaner, and easier maintenance.
Low-Voltage DC 12V
Outputs DC 12V, ideal for 12V LED underwater lights and any low-voltage lighting system near water.
Built for Light Loads
Rated for a maximum of 60W, with a recommended real-world load of 42-48W to reduce heat and extend equipment life.
1-Circuit Control
Suitable for one circuit of 12V LED underwater lights for example, a small light point, fish pond, fountain, Jacuzzi, or spa.
RCBO Leakage Protection
Equipped with an RCBO on the AC 220V side to improve pool electrical safety and reduce the risk of current leakage.
DC Circuit Fuse
A dedicated DC fuse makes it easy to check and maintain the system if a problem occurs on the underwater light circuit.
Neat, Easy Wiring
Clearly separated terminals keep wiring organized great for homes, pool villas, resorts, and professional installers.
CP-WPL-1205-1C Specifications
This model is built for one circuit of 12V LED underwater lights, suitable for small total loads where a compact control box is preferred.
We recommend running the unit at about 70-80% of its maximum power so the switching power supply doesn't work under excessive strain.
How WIN WIN POOL Light Control Box Codes Work
Product codes are designed to be easy to read at a glance showing the box type, output voltage, current rating, number of circuits, and whether a timer is included.
Pool Light Control Box Comparison Table
Choose the model that matches the combined wattage of all your 12V LED underwater lights, and the number of circuits based on your pool's lighting zones.
| SKU | Output | Max Power | Recommended Load | Circuits | Timer |
|---|---|---|---|---|---|
| CP-WPL-1205-1C | DC 12V 5A | 60W | 42-48W | 1 Circuit | No |
| CP-WPL-1205-1C-T | DC 12V 5A | 60W | 42-48W | 1 Circuit | Yes |
| CP-WPL-1210-2C | DC 12V 10A | 120W | 84-96W | 2 Circuits | No |
| CP-WPL-1210-2C-T | DC 12V 10A | 120W | 84-96W | 2 Circuits | Yes |
| CP-WPL-1215-3C | DC 12V 15A | 180W | 126-144W | 3 Circuits | No |
| CP-WPL-1215-3C-T | DC 12V 15A | 180W | 126-144W | 3 Circuits | Yes |
| CP-WPL-1240-5C | DC 12V 40A | 480W | 320-360W | 5 Circuits | No |
| CP-WPL-1240-5C-T | DC 12V 40A | 480W | 320-360W | 5 Circuits | Yes |
How to Calculate Your Total Light Load
The number of lights you can run depends on the wattage of each fixture common options include 6W, 9W, 12W, 18W, 24W, 35W, and 40W.
Example: 4 x 12W lights = 48W total, which fits perfectly within the CP-WPL-1205-1C's recommended range of 42-48W.
4 x 12W Lights
Total load = 12W x 4 = 48W a perfect fit for the CP-WPL-1205-1C's recommended range.
4 x 24W Lights
Total load = 24W x 4 = 96W step up to a 10A model such as the CP-WPL-1210-2C, or another model with more headroom.
3 x 40W Lights
Total load = 40W x 3 = 120W choose a model rated for more than 5A.
Choosing a Model by Total Light Wattage
| SKU | Max Power | Recommended Load | Best for a Total Load of |
|---|---|---|---|
| CP-WPL-1205-1C | 60W | 42 - 48W | Up to 42 - 48W |
| CP-WPL-1210-2C | 120W | 84 - 96W | Up to 84 - 96W |
| CP-WPL-1215-3C | 180W | 126 - 144W | Up to 126 - 144W |
| CP-WPL-1240-5C | 480W | 320 - 360W | Up to 320 - 360W |
Where It's Used
The CP-WPL-1205-1C is built for small underwater lighting jobs that need to be organized, safe, and easy to maintain.
Small Pools
Great for small residential pools or underwater light points that use just a few 12V LED lights within the recommended wattage range.
Fish Ponds & Fountains
Controls underwater lighting for fish ponds, fountains, and water features that call for a compact control box.
Jacuzzis & Spas
A good match for spa or Jacuzzi areas with low light loads that need a low-voltage DC 12V system.
