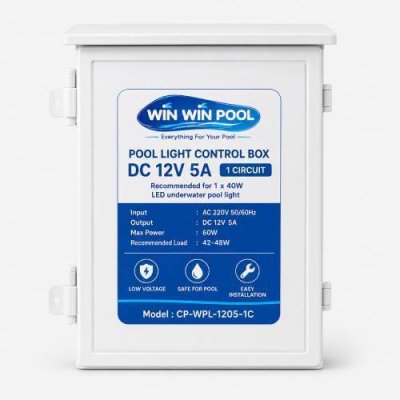

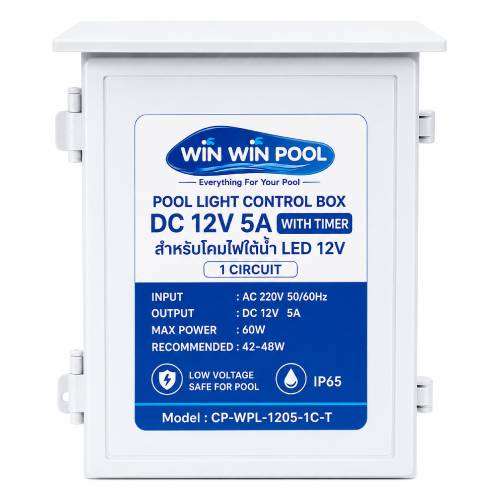

WIN WIN POOL Pool Light Control Box DC 12V 5A With Timer Model CP-WPL-1205-1C-T for 12V LED Underwater Pool Light, 1 Circuit
SKU : CP-WPL-1205-1C-T
0 Sold
Quantity
Short Description
WIN WIN POOL CP-WPL-1205-1C is a compact DC 12V 5A pool light control box designed for one 12V LED underwater light circuit. It supports up to 60W with a recommended operating load of 42–48W. Equipped with RCBO and DC fuse protection for enhanced electrical safety, it is ideal for small swimming pools, fish ponds, fountains, Jacuzzis, spas, and other low-voltage underwater lighting applications.
A 12V LED Underwater Light Control Box With Automatic Scheduling
The WIN WIN POOL CP-WPL-1205-1C-T is a DC 12V pool light control box with a built-in digital timer for automatic on/off control. It's designed for one circuit of 12V LED underwater lights and is ideal for residential pools, fish ponds, fountains, Jacuzzis, and spa applications. The built-in timer makes daily operation effortless, while RCBO protection and a DC fuse help improve electrical safety and system reliability.
Built-in Digital Timer
Schedules your pool lights to turn on and off automatically, cutting down on manual switching great for homes, fish ponds, fountains, Jacuzzis, and spas.
Low-Voltage DC 12V
Outputs DC 12V, ideal for 12V LED underwater lights and any low-voltage lighting system near water.
1-Circuit Control
Built for one circuit of 12V LED underwater lights, suitable for low loads and smaller installations.
RCBO Leakage Protection
Equipped with an RCBO on the AC 220V side to improve electrical safety around the pool and other water-adjacent areas.
DC Fuse Protection
A dedicated DC fuse makes it easy to check and maintain the underwater light circuit if a problem occurs.

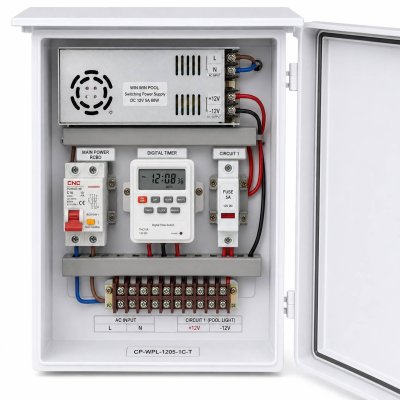

Neat, Labeled Terminals
Clearly separated terminals keep wiring organized, easy to check, and ready for professional installation.
CP-WPL-1205-1C-T Specifications
A DC 12V 5A pool light control box with a built-in digital timer for one circuit of 12V LED underwater lights.
Schedules your underwater lights to switch on and off automatically more convenient, less manual switching, and well suited to everyday use.
Why Choose the "With Timer" Model
Perfect for anyone who wants their pool lights, fish pond lights, fountain lights, or Jacuzzi lights to switch on and off automatically at set times.
Lights On Time, Every Time
Keeps your underwater lighting running on a set schedule ideal for everyday use.
No More Forgotten Lights
Helps prevent lights being left on longer than necessary great for homes, pool villas, resorts, and rental properties.
Effortless Everyday Use
Set it once, and homeowners or facility staff no longer need to switch lights on and off by hand every day.
How WIN WIN POOL Light Control Box Codes Work
Product codes are designed to be easy to read at a glance showing the box type, output voltage, current rating, number of circuits, and whether a timer is included.
Pool Light Control Box Comparison Table
Choose the model that matches the combined wattage of all your 12V LED underwater lights, and the number of circuits based on your pool's lighting zones.
| SKU | Output | Max Power | Recommended Load | Circuits | Timer |
|---|---|---|---|---|---|
| CP-WPL-1205-1C | DC 12V 5A | 60W | 42-48W | 1 Circuit | No |
| CP-WPL-1205-1C-T | DC 12V 5A | 60W | 42-48W | 1 Circuit | Yes |
| CP-WPL-1210-2C | DC 12V 10A | 120W | 84-96W | 2 Circuits | No |
| CP-WPL-1210-2C-T | DC 12V 10A | 120W | 84-96W | 2 Circuits | Yes |
| CP-WPL-1215-3C | DC 12V 15A | 180W | 126-144W | 3 Circuits | No |
| CP-WPL-1215-3C-T | DC 12V 15A | 180W | 126-144W | 3 Circuits | Yes |
| CP-WPL-1240-5C | DC 12V 40A | 480W | 320-360W | 5 Circuits | No |
| CP-WPL-1240-5C-T | DC 12V 40A | 480W | 320-360W | 5 Circuits | Yes |
How to Calculate Your Total Light Load
The number of lights you can run depends on the wattage of each fixture common options include 6W, 9W, 12W, 18W, 24W, 35W, and 40W.
Example: 4 x 12W lights = 48W total, which fits perfectly within the CP-WPL-1205-1C-T's recommended range of 42-48W.
4 x 12W Lights
Total load = 12W x 4 = 48W a perfect fit for the CP-WPL-1205-1C-T's recommended range.
4 x 24W Lights
Total load = 24W x 4 = 96W step up to a 10A model such as the CP-WPL-1210-2C-T, or another model with more headroom.
3 x 40W Lights
Total load = 40W x 3 = 120W choose a model rated for more than 5A.
Choosing a Model by Total Light Wattage
| SKU | Max Power | Recommended Load | Best for a Total Load of |
|---|---|---|---|
| CP-WPL-1205-1C | 60W | 42-48W | Up to 42-48W |
| CP-WPL-1205-1C-T | 60W | 42-48W | Up to 42-48W |
| CP-WPL-1210-2C | 120W | 84-96W | Up to 84-96W |
| CP-WPL-1215-3C | 180W | 126-144W | Up to 126-144W |
| CP-WPL-1240-5C | 480W | 320-360W | Up to 320-360W |
Where It's Used
The CP-WPL-1205-1C-T is built for small underwater lighting jobs that need automatic on/off scheduling.
Residential Pools
Great for small pools where you want the lights to switch on and off automatically without flipping a switch every day.
Fish Ponds & Fountains
Controls underwater lighting for fish ponds, fountains, and water features that need to run on a schedule.
Jacuzzis & Spas
A good match for spa or Jacuzzi areas with low light loads that want automated scheduling.
Frequently Asked Questions About the CP-WPL-1205-1C-T
