HAYWARD SUPER II ECO 3 HP/380-450V/50Hz/Port Size 2"
SKU : FG-PS-HA-SIIE583
0 Sold
Quantity
Short Description
3 HP/380-450V/50Hz/Port Size 2" Flow Rate 33.90 m³/hr (Flow @ Head 10 m)
Hayward Super II ECO®
Single Speed Pool Pump
A high-performance pump from Hayward USA - "Performance of a Lifetime." Energy efficient, rugged, and built to keep working even under the most demanding conditions.
Product Features & Benefits
Heavy-Duty, High-Performance Motor
Advanced airflow ventilation for quieter, cooler operation and a longer working life.
Full Flow Hydraulics
Allows a greater flow rate at a lower operating cost, saving on electricity over the long run.
️ Simple Access
The motor and entire drive group assembly can be removed without disturbing pipe or mounting connections - fast, easy maintenance.
Large Prefilter Basket
A large debris basket with tool-less removal, allowing longer operation between cleanings.
Self-Priming
Self-priming suction lift of up to 1.8 m above the water level, with no additional check valve required.
Performance of a Lifetime
Built to be durable and high-performing even under the most demanding conditions - suitable for residential, villa, and commercial pools.
Specifications & Ordering Information
* Flow rate figures are referenced at 10 m Total Dynamic Head (TDH) - flow decreases as head increases, per the pump's performance curve.
| Model Code | Model | Input Power (kW) | Input Amps (A) | HP | Flow (L/min) | Flow (m³/hr) | Size L×W (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FG-PS-HA-SIIE230 | SIIE230 | 0.74 | 3.30 | 0.75 | 192 | 11.52 | 569 × 240 | 12.50 |
| FG-PS-HA-SIIE320 | SIIE320 | 0.98 | 4.34 | 1.00 | 290 | 17.40 | 569 × 240 | 13.40 |
| FG-PS-HA-SIIE430 | SIIE430 | 1.38 | 6.23 | 1.50 | 390 | 23.40 | 594 × 240 | 15.30 |
| FG-PS-HA-SIIE530 | SIIE530 | 1.86 | 8.33 | 2.00 | 480 | 28.80 | 618 × 240 | 19.05 |
| FG-PS-HA-SIIE580 | SIIE580 | 2.33 | 10.46 | 3.00 | 565 | 33.90 | 618 × 240 | 20.80 |
| FG-PS-HA-SIIE583* | SIIE583 | 2.70 | 8.2/4.7 | 3.00 | 565** | 33.90** | 630 × 240 | 22.00 |
* The SIIE583 runs on 380-415V three-phase power and is recommended for in-ground pools with a system head of 8-10 m.
** The SIIE583 shares the same hydraulic assembly as the SIIE580, so flow figures are similar - the two differ only in their electrical specification.

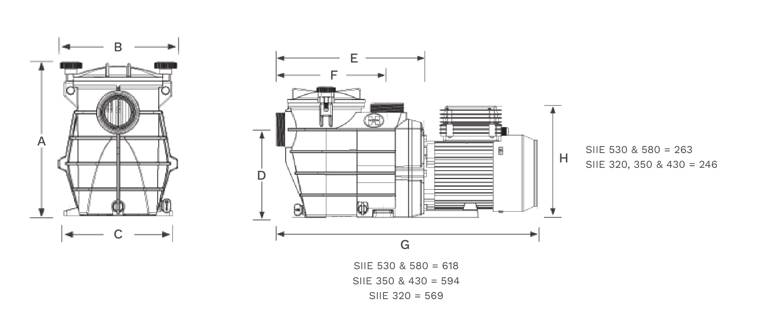

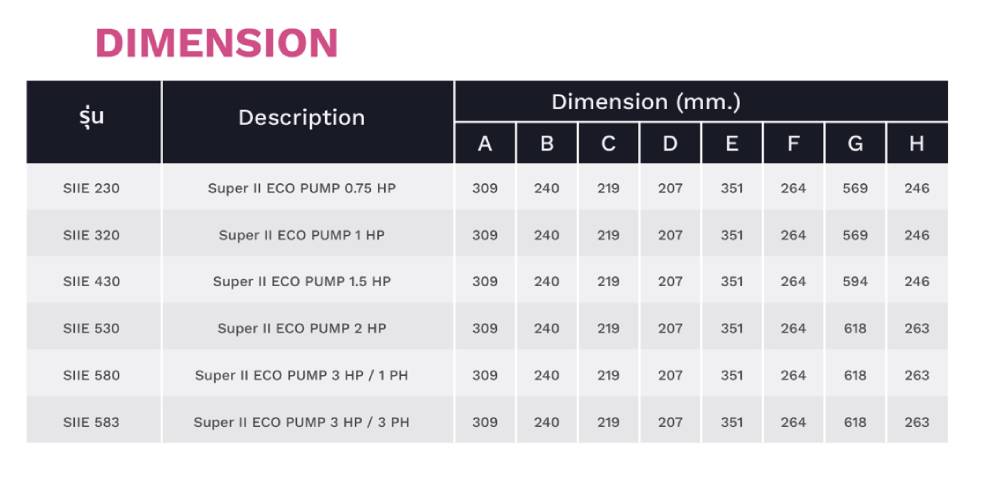

Dimension
Technical Specification
| Max. Water Temp. | 40°C |
| Motor Specification | 220-240V / 50Hz / 2 Pole / Class F |
| Ingress Protection | IP55 |
| Connections | 40 / 50 mm |
| Rated Noise dB(A)@1m | < 70 dB(A) |
Choosing the Right Pump Size for Your Pool
* These are rough estimates - please also factor in pipe length, Total Dynamic Head, and filter type before you order.
| Approx. Pool Size | Recommended HP | Typical Use Case |
|---|---|---|
| Up to 30 m² | 0.75 - 1 HP | Small-to-medium residential pools |
| 30 - 60 m² | 1.25 - 1.5 HP | Medium-sized residential / villa pools |
| 60 - 100 m² | 2 HP | Villas / small commercial pools |
| 100 m² and above | 3 HP (Single/Three Phase) | Hotels / resorts / commercial pools |
Installation Notes
- Install the pump below the pool's water level for quick and easy priming.
- Thanks to the Self-Priming feature, the pump can draw water up to 1.8 m above the water level, so a slightly elevated installation is possible without a check valve - though a position below water level is still recommended for maximum efficiency.
- For typical in-ground pools, the total system head is usually around 8-10 m - select the pump model based on the performance curve at this head.
- Leave at least 15-20 cm of clearance around the pump for proper motor heat dissipation.
- Never install the pump where water can pool or moisture can accumulate. The unit carries an IP55 protection rating, but a roof or cover is still recommended for extra safety.
- The three-phase model (SIIE583) must be wired by a licensed electrician with proper grounding to code.
- An RCD/ELCB (earth leakage) breaker dedicated to the pump circuit is recommended for safety.
Maintenance Tips
- Clean the prefilter basket regularly - the Super II ECO's large debris basket can be removed for cleaning without any tools.
- Inspect the clear top cover for cracks or leaks, and replace the O-ring immediately if any are found.
- Listen to the motor regularly - this pump is rated below 70 dB(A); unusual noise or increased vibration may indicate the bearing needs checking.
- Check the pressure gauge every 1-2 weeks; a higher-than-normal reading means the filter is clogged and needs cleaning or backwashing.
- Never run the pump dry (with no water in the system) - this will damage the mechanical seal instantly.
Comparison: Single Speed vs Variable Speed
| Category | Super II ECO (Single Speed) | Variable Speed Pump |
|---|---|---|
| Upfront cost | More affordable | Higher |
| Ease of use | Simple on/off operation | Programmable across multiple speed settings |
| Long-term energy cost | Fixed power draw at motor speed | More energy-efficient over time |
| Best for | Residential pools / budget-conscious buyers | Pools that run the pump for long hours daily |
Frequently Asked Questions (FAQ)
Q: Is the Hayward Super II ECO right for my pool?
A: Sizing depends on your pool's surface area and the system's total head (in-ground pools are typically 8-10 m). If you're unsure, just share your approximate pool size and pipe length with the WINWINPOOL team and we'll help calculate the ideal HP for you.
Q: How often do I need to replace the O-ring or clean the strainer basket?
A: Inspect the lid O-ring every 6-12 months, or sooner if you notice any water seepage. The prefilter basket should be cleaned weekly depending on debris levels - it removes easily without any tools.
Q: Can this pump be used with a salt chlorinator system?
A: Yes - the Super II ECO works with any brand of filter and salt chlorine generator. Just make sure the pump is positioned before the filter and salt cell in the standard water circuit sequence.
Q: The pump is making an unusual noise - what should I do?
A: This pump is rated below 70 dB(A). If it's louder than that, first check for an air lock in the system. If the noise is coming directly from the motor, it could indicate bearing wear - have a technician inspect it before continuing to run the pump.
Ready to upgrade your pool pump?
The WINWINPOOL team is here to help you choose the right pump size for your pool - free of charge, no obligation.
