HAYWARD SUPER II ECO 2 HP/220V/50Hz/Port Size 2"
SKU : FG-PS-HA-SIIE530
0 Sold
Quantity
Short Description
2 HP/220V/50Hz/Port Size 2" Flow Rate 28.80 m³/hr (Flow @ Head 10 m)

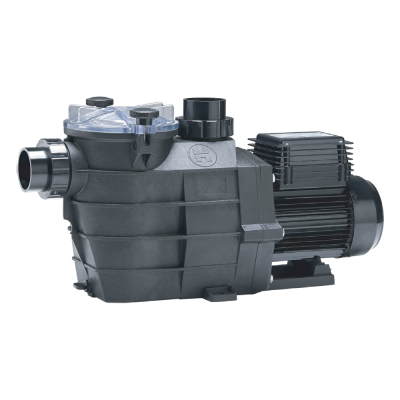

Hayward Super II ECO® Single Speed Pool Pump
Premium-grade pool pump with a high-performance motor built for long-lasting durability - ideal for residential pools, villas, and resorts.
Product Features & Benefits
Heavy Duty, High Performance Motor
Built with advanced airflow ventilation for quieter, cooler operation and a longer motor lifespan.
️ High Quality Mechanical Seal
Fitted with an industrial-size Carbon Ceramic Mechanical Seal, resistant to leaks and wear.
Full Flow Hydraulics
Allows a greater flow rate at a lower operating cost, saving on electricity over the long run.
️ Simple Access
The motor and entire drive group assembly can be removed without disturbing pipe or mounting connections - just disengage six bolts.
Double Insulated Water Circuit
A double-insulated water circuit adds an extra layer of electrical safety and reduces the risk of current leakage.
Impressive Leaf Holding Capacity
Rigid construction with load-extender ribbing keeps water flowing freely even under extra-heavy debris loads.
Self-Priming
Self-priming suction lift of up to 1.8 m above the water level, with no check valve required.
See Through Strainer Cover
The clear Lexan cover lets you see when the basket needs cleaning, eliminating any guesswork.
️ Uni-Bracket Mounting Base
Provides stable, stress-free support and offers flexibility for any installation requirement.
Performance of a Lifetime
Engineered to withstand heavy use - suitable for residential, villa, and commercial pools alike.
Specifications & Model Range

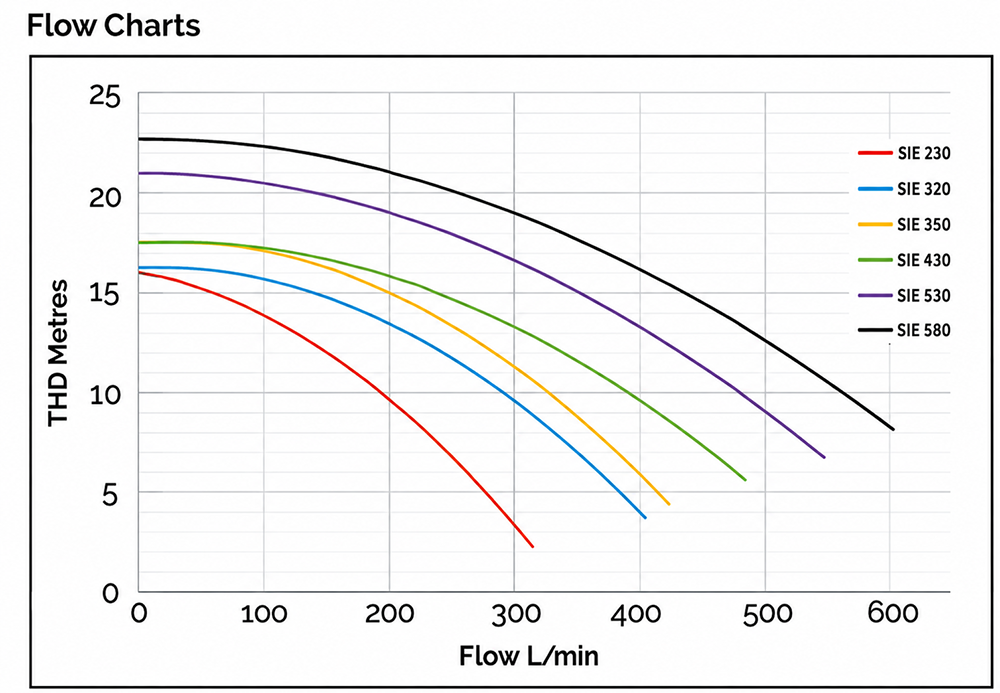

* Flow rate figures are referenced at 10 m Total Dynamic Head (TDH).
| Model Code | Description | Electrical | Flow (L/min) | Flow (m³/hr) |
|---|---|---|---|---|
| FG-PS-HA-SIIE230 | HAYWARD SUPER II ECO 0.75 HP / Port Size 2" | 220V / 50Hz / Single Phase | 192 | 11.52 m³/hr |
| FG-PS-HA-SIIE320 | HAYWARD SUPER II ECO 1 HP / Port Size 2" | 220V / 50Hz / Single Phase | 290 | 17.40 m³/hr |
| FG-PS-HA-SIIE350* | HAYWARD SUPER II ECO 1.25 HP / Port Size 2" | 220V / 50Hz / Single Phase | 330 | 19.80 m³/hr |
| FG-PS-HA-SIIE430 | HAYWARD SUPER II ECO 1.5 HP / Port Size 2" | 220V / 50Hz / Single Phase | 390 | 23.40 m³/hr |
| FG-PS-HA-SIIE530 | HAYWARD SUPER II ECO 2 HP / Port Size 2" | 220V / 50Hz / Single Phase | 480 | 28.80 m³/hr |
| FG-PS-HA-SIIE580 | HAYWARD SUPER II ECO 3 HP / Port Size 2" | 220V / 50Hz / Single Phase | 565 | 33.90 m³/hr |
| FG-PS-HA-SIIE583 | HAYWARD SUPER II ECO 3 HP / Port Size 2" | 380-450V / 50Hz / Three Phase | 565 | 33.90 m³/hr |
- The SIIE350 (1.25 HP) model code is inferred from the naming pattern of the other models in this line - please confirm the exact Model Code with Hayward or your procurement team before publishing.

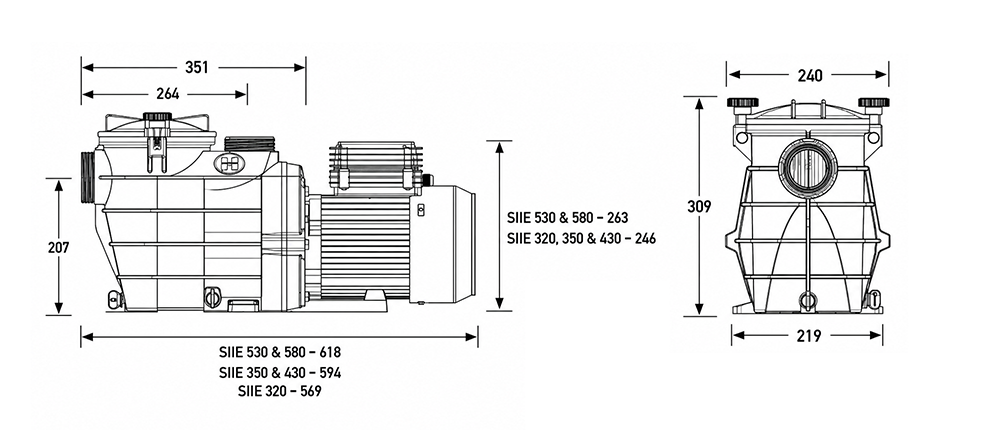

Dimension
Choosing the Right Pump Size for Your Pool
* These are rough estimates - please also factor in pipe length, total dynamic head, and filter type before you order.
| Approx. Pool Size | Recommended HP | Typical Use Case |
|---|---|---|
| Up to 30 m² | 0.75 - 1 HP | Small-to-medium residential pools |
| 30 - 60 m² | 1.5 HP | Medium-sized residential / villa pools |
| 60 - 100 m² | 2 HP | Villas / small commercial pools |
| 100 m² and above | 3 HP (Single/Three Phase) | Hotels / resorts / commercial pools |
Installation Notes
- Install the pump below the pool's water level for quick and easy priming.
- Thanks to the Self-Priming feature, the pump can draw water up to 1.8 m above the water level, so a slightly elevated installation is possible without a check valve - though a position below water level is still recommended for maximum efficiency.
- Leave at least 15-20 cm of clearance around the pump for proper motor heat dissipation.
- Never install the pump where water can pool or moisture can accumulate - provide a roof or cover if needed.
- The three-phase model (FG-PS-HA-SIIE583) must be wired by a licensed electrician with proper grounding to code.
- An RCD/ELCB (earth leakage) breaker dedicated to the pump circuit is recommended for safety.
Maintenance Tips
- Clean the hair & lint pot weekly to prevent the pump from overworking.
- Inspect the clear top cover for cracks or leaks, and replace the O-ring immediately if any are found.
- Listen to the motor regularly - unusual noise or increased vibration may indicate the bearing needs checking.
- Check the pressure gauge every 1-2 weeks; a higher-than-normal reading means the filter is clogged and needs cleaning or backwashing.
- Never run the pump dry (with no water in the system) - this will damage the mechanical seal instantly.
Comparison: Single Speed vs Variable Speed
| Category | Super II ECO (Single Speed) | Variable Speed Pump |
|---|---|---|
| Upfront cost | More affordable | Higher |
| Ease of use | Simple on/off operation | Programmable across multiple speed settings |
| Long-term energy cost | Fixed power draw at motor speed | More energy-efficient over time |
| Best for | Residential pools / budget-conscious buyers | Pools that run the pump for long hours daily |
Frequently Asked Questions (FAQ)
Q: Is the Hayward Super II ECO right for my pool?
A: Sizing depends on your pool's surface area and pipe run length. If you're unsure, just share your approximate pool size and pipe length with the WINWINPOOL team and we'll help calculate the ideal HP for you.
Q: How often do I need to replace the O-ring or clean the strainer basket?
A: Inspect the lid O-ring every 6-12 months, or sooner if you notice any water seepage. The strainer basket should be cleaned weekly depending on debris levels.
Q: Can this pump be used with a salt chlorinator system?
A: Yes - the Super II ECO works with any brand of filter and salt chlorine generator. Just make sure the pump is positioned before the filter and salt cell in the standard water circuit sequence.
Q: The pump is making an unusual noise - what should I do?
A: First check for an air lock in the system. If the noise is coming directly from the motor, it could indicate bearing wear - have a technician inspect it before continuing to run the pump.
Ready to upgrade your pool pump?
The WINWINPOOL team is here to help you choose the right pump size for your pool - free of charge, no obligation.
