Epoxy HEAVY DUTY COATING Concrete Sealer 2 Part
SKU : FBCSLG0000-W
0 Sold
Quantity
Short Description
Heavy Duty Epoxy Concrete Sealer for Swimming Pools (2-Component System)
Premium epoxy primer with deep penetration and superior adhesion. Resistant to water, chemicals, acids, and alkalis. Ideal for concrete pool surfaces.
Volume: Part A 3.028L / Part B 0.757L
Recommended use with Thinner M-68.(Update 21/03/2026)

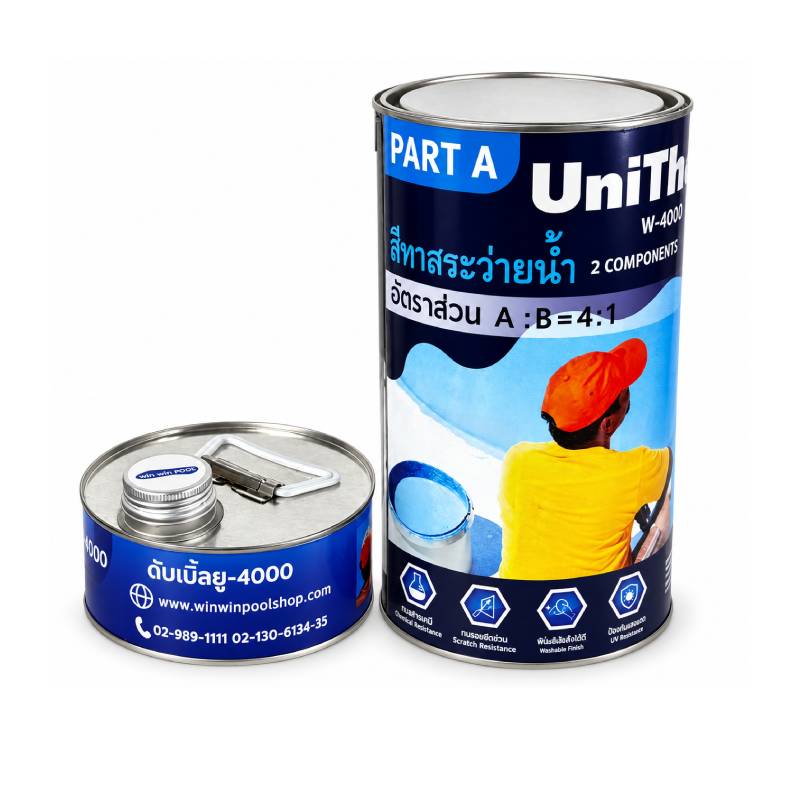

WINWINPOOL UNITHANE W-4000
High-performance polyurethane topcoat glossy finish, water resistant, abrasion resistant, purpose-built for swimming pool coating systems
Product Overview
WINWINPOOL UNITHANE W-4000 is a high-quality, 2-component polyurethane topcoat designed for swimming pool paint systems and other coating applications requiring high durability. It produces a beautiful, glossy paint film that resists abrasion, water, and weathering, and can be used both indoors and outdoors. Supplied in a 3-litre kit consisting of 2.4 litres of Part A and 0.6 litres of Part B, mixed at a 4:1 ratio by volume. Use together with WINWINPOOL Thinner W-M-22 and, for best results, pair with WINWINPOOL Concrete Sealer 2 Part (code FBCSLG0000-W) as a primer.
Key Features
Technical Data
| Paint Type | 2-component polyurethane paint |
| Film Appearance | Gloss or matte, depending on model and shade |
| Volume Solids | 55 ± 2% |
| Flash Point | 25 ± 2°C |
| Mixing Ratio | Part A 4 parts : Part B 1 part (by volume) |
| Pot Life After Mixing (30°C) | Approx. 4 hours |
| Shelf Life (25°C) | 12 months in an unopened container |
| Recommended Dry Film Thickness | 3050 microns per coat |
| Suitable Substrates | Concrete, steel and metal that has been correctly primed |
| Application Method | Spray gun, brush, or roller |
Kit Components
Available Colour Shades (24 Shades)
Colours shown are approximate and for reference only. Colours displayed on screen or in documents may differ from the actual product colour please check a physical colour sample before ordering and application.
Pool Paint System
Detailed Surface Preparation
- New concrete should be at least 28 days old, or fully cured, before starting the paint work
- Check that the surface is sound, with no dusting or crumbling
- Open up the concrete surface using a suitable mechanical grinding or abrasion method
- Remove all dust, oil, curing compound, and other contaminants
- Repair cracks, holes, and any damaged concrete areas
- Ensure the surface is completely dry before applying the primer
- Apply the Concrete Sealer before applying the W-4000 topcoat
- Drain the water and allow the surface to fully dry
- Remove algae, mould, chlorine and salt residue, and grease
- Grind or strip away any cracked, blistered, flaking, or poorly adhered old paint
- Sand any well-adhered existing paint to roughen it and improve adhesion of the new system
- Clean the surface thoroughly and allow it to fully dry
- Repair cracks and damaged areas, then test adhesion on a small area first
- Apply a primer appropriate to the surface condition before applying the W-4000 topcoat
- Remove all rust, oil, dust, and deteriorated old paint
- Clean the surface and create an appropriate level of roughness
- Apply a primer suited to the specific metal type
- Steel, aluminium, and zinc-coated metals may each require a different primer consult our technical team before use
- Apply the W-4000 topcoat in the specified number of coats
Surface & Environmental Requirements During Application
Mixing Procedure & Ratios
- Open Part A and stir the paint thoroughly to a uniform consistency
- Add Part B into Part A at a 4:1 ratio by volume
- Mix thoroughly until fully blended, making sure to stir the bottom and edges of the container
- If viscosity adjustment is needed, add Thinner W-M-22 only after Part A and Part B have been mixed together
- Add up to approximately 010% thinner by volume, depending on the application method, temperature, and site conditions
- Use the mixed paint within approximately 4 hours at 30°C
- Do not add thinner to extend pot life once the paint begins to thicken
- Do not pour any dispensed paint back into the original container
Using WINWINPOOL Thinner W-M-22
Dilution rate of 010% by volume (this is the maximum thinner is not always required). Use only this specific thinner. Other thinners may cause the paint to be incompatible, curdle, or damage the finished film.
Adding too much thinner can result in a thin film, sagging, reduced coverage, and slower curing.
Application Methods
Coverage Rate & Quantity Required
| Dry Film Thickness / Coat | Approx. Wet Film | Theoretical Coverage | Coverage per Coat (3 L Kit) |
|---|---|---|---|
| 30 microns | ~55 microns | ~18.33 m²/L | ~55 m² |
| 40 microns | ~73 microns | ~13.75 m²/L | ~41 m² |
| 50 microns | ~91 microns | ~11 m²/L | ~33 m² |
To account for surface roughness, absorption, pool geometry, and application losses, we recommend estimating actual usable coverage at approximately 3040 m² per kit, per coat.
2 coats: ~2 kits (6 L)
2 coats: ~4 kits (12 L)
Drying Time by Temperature
| Surface Temperature | Touch Dry | Hard Dry | Recoat After | Full Cure |
|---|---|---|---|---|
| 10°C | ~2 hrs | ~6 hrs | 6 hrs | ~10 days |
| 23°C | ~1 hr | ~3 hrs | 3 hrs | ~5 days |
| 40°C | ~30 min | ~1.5 hrs | 1.5 hrs | ~2 days |
Drying times are approximate and may vary depending on film thickness, humidity, and ventilation. Do not fill the pool with water or expose the film to pool chemicals before it is fully cured.
- Clean equipment immediately after use with Thinner W-M-22
- Do not allow mixed paint to remain in the spray gun, hose, or brush
- Keep waste materials away from heat, open flame, and sparks
- Store in a dry, cool, well-ventilated place with the container tightly sealed
- Keep out of reach of children and away from direct sunlight
- Keep away from heat, open flame, and sparks
Frequently Asked Questions
Products Used Together
Interested in Ordering or Have Questions?
The WINWINPOOL team is ready to advise on the right paint quantity for your pool and help you choose a colour shade.
