TURBOFLO BOOSTER PUMP 1.0 HP/220V
SKU : PU-WI-2462100
0 Sold
฿35,952
฿20,493
Quantity
Short Description
1.0 HP/220 V/50 Hz/Port Size 2" Flow Rate 12.00 m³/h (Update 30/03/2026)
Brands: WATERCO
Wishlist
Compare
รายละเอียดสินค้า
Download
VDO

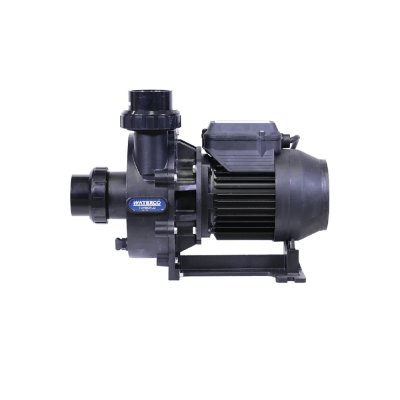

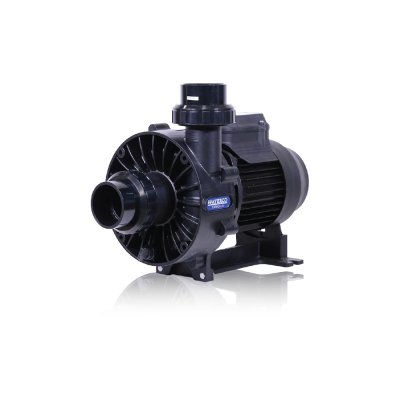

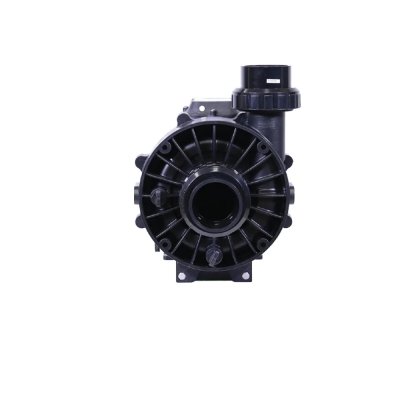

Turboflo Booster Pump
The TurboFlo Booster Pump is designed to increase and maintain a consistent water pressure in your pipeline system, ensuring a high flow rate. It is ideal for applications requiring high water pressure. Built with strong and durable materials, its unique design features an adjustable discharge port that can be rotated to fit your specific plumbing direction.
Applications
- Swimming pools with integrated spa systems
- Fountain and waterfall systems
- Swim jet / Counter-current swimming systems
Features
- Highly efficient impeller and diffuser design maximizes hydraulic output.
- Reduces operating time and energy consumption, leading to lower running costs.
- Equipped with U-PVC union connections for quick and easy installation.
- The pump body is manufactured by molding glass-reinforced thermoplastic using advanced engineering processes.
- Pump impeller is manufactured from glass-reinforced Noryl plastic.
- High-quality carbon/graphite mechanical seal with a 316 stainless steel spring.
- High-efficiency IP55 motor with a 431-grade stainless steel shaft and internal cooling fan.
- Built-in thermal overload protection.
- Single-piece molded pump casing made from glass-reinforced polypropylene, highly resistant to UV radiation.
- Includes a sturdy mounting base for secure and convenient installation.
- Certified by ASX, SPASA, and WQA standards.
Technical Information
| Turboflo Booster Pump Buying Guide | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Motor Power (HP) | Input Power (kW) | Amps | Voltage @ 50Hz | Power System | Pipe Size | Flow Rate (m3/h) | |
| @ 8 m. | @ 10 m. | |||||||
| Turboflo100 | 1 HP | 0.75 | 4.1 | 220-240V | Single Phase | 2” | 14.00 | 12.50 |
| Turboflo200 | 2 HP | 1.5 | 6.4 | 220-240V | Single Phase | 2” | 27.00 | 24.00 |
| Turboflo300 | 3 HP | 2.2 | 9.1 | 220-240V | Single Phase | 2” | 39.00 | 37.50 |
| Turboflo3003 | 3 HP | 2.2 | 9.1 | 380-415V | Three Phase | 2” | 39.00 | 37.50 |
| Turboflo400 | 4 HP | 3.1 | 3.1 | 380-415V | Three Phase | 2” | 56.00 | 51.00 |
Dimensions
| Model | Motor Power | Pipe Size | Dimensions (mm.) | ||||
|---|---|---|---|---|---|---|---|
| L1 | L2 | H1 | H2 | W1 | |||
| PS-WI-PTF-2462100 | 1 HP | 2” | 505 | 223 | 311 | 135 | 224 |
| PS-WI-PTF-2462200 | 2 HP | 2” | 505 | 223 | 311 | 135 | 224 |
| PS-WI-PTF-2462300 | 3 HP | 2” | 543 | 223 | 311 | 135 | 224 |
| PS-WI-PTF-24623003 | 3 HP | 2” | 543 | 223 | 311 | 135 | 224 |
| PS-WI24524003 | 4 HP | 2” | 581 | 223 | 311 | 135 | 224 |
