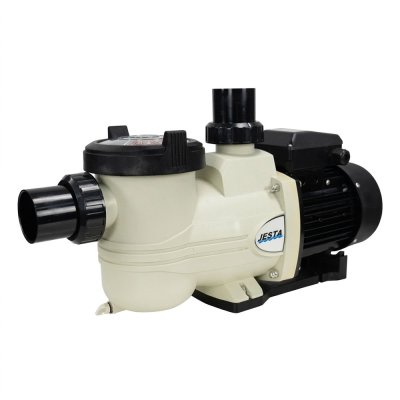

JESTA HLLF Pump ขนาด 3 HP / 3 Phase
SKU : PU-SL-HLLF300T
0 Sold
฿31,716
฿18,079
Quantity
Short Description
3 HP/380V/50HZ Suction/Discharge 2" Flowrate 27.5 m3/hour(at Head 10m,) (Update 30/03/2026)
Wishlist
Compare
Product description
Download
VDO
HLLF PUMP
The HLLF series pool pump is a high-quality, affordable swimming pool pump by the JESTA brand, imported from China. Developed and engineered for enhanced efficiency, the pump body is manufactured using high-strength Thermoplastic material, providing excellent resistance to chemical corrosion. The TEFC motor is coated with anti-rust paint, making it highly heat-resistant and perfectly suitable for outdoor installation.
Application
- In-ground swimming pools
- Swimming pools with integrated spa systems
Features
- Pump body has been strictly tested to withstand up to 25,000 impacts, ensuring outstanding performance and reliable quality.
- Ultra-quiet operation (the 0.75 HP model operates at less than 65 dB).
- Working liquid temperature range: 5 - 50°C.
- Maximum operating ambient temperature: 40°C.
- Maximum working pressure: 2.5 bar.
- Class I electrical insulation with built-in Thermal Protection that automatically cuts off power when temperatures exceed safe limits.
- IPX5 waterproof standard rating.
Technical Info
| Model | Motor Power (HP) | Power Input (kW) | Voltage (50Hz) | Phase | Pipe Size |
|---|---|---|---|---|---|
| HLLF100M | 1.0 HP | 0.75 kW | 220 V | Single Phase | 1.5” |
| HLLF150M | 1.5 HP | 1.1 kW | 220 V | Single Phase | 1.5” |
| HLLF200M | 2.0 HP | 1.5 kW | 220 V | Single Phase | 2” |
| HLLF200T | 2.0 HP | 2.0 kW | 380 V | Three Phase | 2” |
| HLLF300M | 3.0 HP | 2.2 kW | 220 V | Single Phase | 2” |
| HLLF300T | 3.0 HP | 2.2 kW | 380 V | Three Phase | 2” |
Performance Data
| Model | Motor HP | Water Flow Rate (m³/h) vs. Head (m) | |||||
|---|---|---|---|---|---|---|---|
| 8 m | 10 m | 12 m | 15 m | 18 m | 20 m | ||
| HLLF075M | 0.75 HP | 11.5 | 8.5 | 5.0 | - | - | - |
| HLLF100M | 1.0 HP | 18.0 | 16.0 | 11.0 | 4.5 | - | - |
| HLLF150M | 1.5 HP | 20.0 | 17.5 | 15.0 | 9.5 | - | - |
| HLLF200M | 2.0 HP | 25.0 | 23.0 | 20.0 | 15.0 | 5.0 | - |
| HLLF200T | 2.0 HP | 25.0 | 23.0 | 20.0 | 15.0 | 5.0 | - |
| HLLF300M | 3.0 HP | 31.0 | 27.5 | 25.0 | 20.0 | 12.0 | - |
| HLLF300T | 3.0 HP | 31.0 | 27.5 | 25.0 | 20.0 | 12.0 | - |
Dimensions
| Model | Motor HP | Pipe Size | Dimension "A" | |
|---|---|---|---|---|
| cm. | mm. | |||
| HLLF075M | 0.75 HP | 1.5” | 59.5 | 595 |
| HLLF100M | 1.0 HP | 1.5” | 59.5 | 595 |
| HLLF150M | 1.5 HP | 1.5” | 60.5 | 605 |
| HLLF200M | 2.0 HP | 2” | 60.5 | 605 |
| HLLF200T | 2.0 HP / 3 Phase | 2” | 60.5 | 605 |
| HLLF300M | 3.0 HP | 2” | 60.5 | 605 |
| HLLF300T | 3.0 HP / 3 Phase | 2” | 60.5 | 605 |
