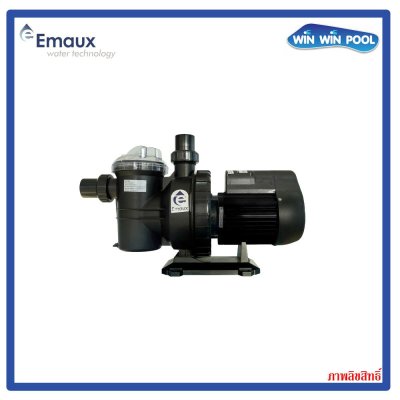

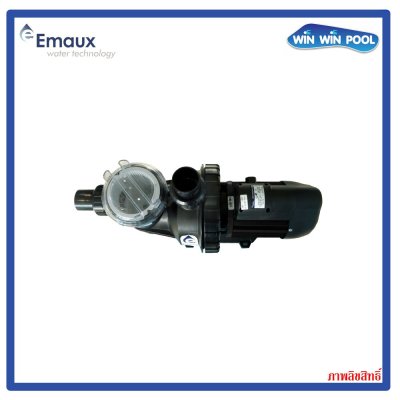

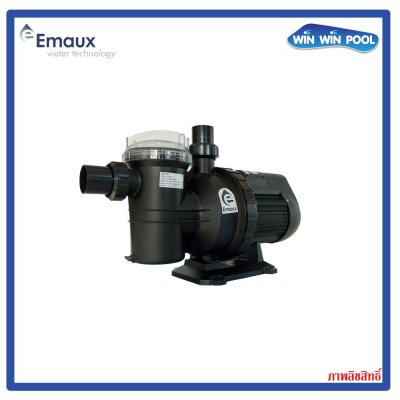

Pump Emaux SC-075 0.75 HP/220V
SKU : PU-EM-SC-075
3 Sold
Quantity
Short Description
EMAUX SC075 swimming pool pump, rated at 0.75 HP, 220V / 1 Phase, with 1.5-inch / 50 mm connections. It delivers a flow rate of 9 m³/hr @ Head 8 m, which is the maximum Head specified in the performance data for this model. It features a 2.5-liter strainer basket, IPX5 protection rating, and a durable, corrosion-resistant S.S.316 stainless steel shaft. Designed for quiet and energy-efficient operation, it is suitable for water circulation systems in residential swimming pools. Pump weight: 12.1 kg. Package dimensions: 30 × 60.5 × 41.5 cm. Gross weight: 13.44 kg. (Updated 16/02/2026)
EMAUX SC Series
The EMAUX SC Series is a circulation pump designed for residential swimming pools, especially medium-sized pools. It is engineered for low-noise operation, efficient energy consumption, and easy maintenance.
The 1.5-inch / 50 mm suction and discharge ports are paired with a transparent strainer lid, allowing easy inspection of debris inside the basket. Suitable for use with standard swimming pool filtration systems.
Key Features
1.5-inch suction and discharge ports with unions for easy plumbing installation
Transparent strainer lid allows easy inspection of debris inside the basket
2-pole asynchronous motor designed for swimming pool circulation systems
IPX5 water protection rating suitable for swimming pool equipment
Built-in thermal protection and motor overload protection
Self-priming capability up to approximately 2 metres above water level
S.S.316 stainless steel motor shaft for strength and corrosion resistance
S.S.316 stainless steel mechanical seal for enhanced durability
Approx. 2.5-litre strainer basket helps reduce cleaning frequency
Flow Rate @ Head 8 m and @ Head 10 m
Compare the flow rate of each pump model at 8 m and 10 m head. A dash (-) indicates that the value is outside the performance range specified by the manufacturer in the table.
| Model | Horsepower | Flow @ Head 8 m | Flow @ Head 10 m |
|---|---|---|---|
| SC050 | 0.5 HP | - | - |
| SC075 | 0.75 HP | 9 m³/h | - |
| SC100 | 1.0 HP | 14 m³/h | 10 m³/h |
| SC150 | 1.5 HP | 17.2 m³/h | 14 m³/h |
| SC200 | 2.0 HP | 21 m³/h | 18 m³/h |

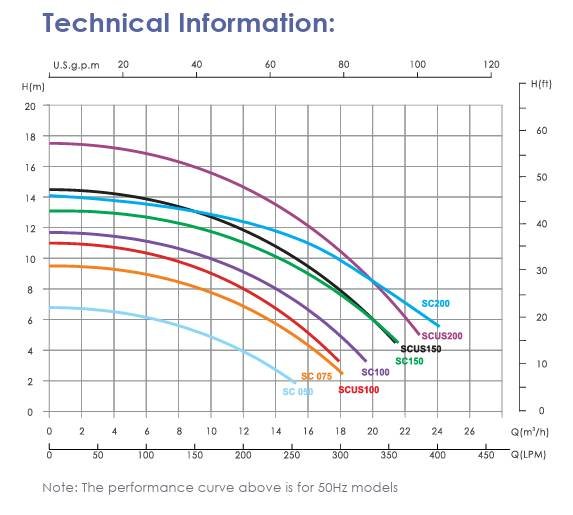

Head / Flow Rate Table
Flow rate in m³/h for 50Hz models
| Model | Input (kW) | Current (A) | Noise (dB) | Head (m) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 6 | 8 | 10 | 12 | 14 | ||||
| SC050 | 0.51 | 2.5 | 60 | 12 | 6.8 | - | - | - | - |
| SC075 | 0.75 | 3.5 | 68 | 16.4 | 13.8 | 9 | - | - | - |
| SC100 | 0.97 | 4.7 | 70 | 19 | 17 | 14 | 10 | - | - |
| SC150 | 1.30 | 5.9 | 70 | 22 | 20 | 17.2 | 14 | - | - |
| SC200 | 1.71 | 8.2 | 73 | 26 | 23.2 | 21 | 18 | - | - |
Technical Specifications by Model
| Model | Horsepower | Connection Size | Input | Current | Noise | Weight |
|---|---|---|---|---|---|---|
| SC050 | 0.5 HP | 1.5" / 50 mm | 0.51 kW | 2.5 A | 60 dB | 10.4 kg |
| SC075 | 0.75 HP | 1.5" / 50 mm | 0.75 kW | 3.5 A | 68 dB | 12.1 kg |
| SC100 | 1.0 HP | 1.5" / 50 mm | 0.97 kW | 4.7 A | 70 dB | 13.4 kg |
| SC150 | 1.5 HP | 1.5" / 50 mm | 1.30 kW | 5.9 A | 70 dB | 14.9 kg |
| SC200 | 2.0 HP | 1.5" / 50 mm | 1.71 kW | 8.2 A | 73 dB | 15.4 kg |
EMAUX SC Series Models
| SKU | Model | HP | Voltage | Phase | Connection |
|---|---|---|---|---|---|
| 20700510175 | SC050 | 0.5 HP | 220V | 1 Phase | 1.5" |
| 20700510180 | SC075 | 0.75 HP | 220V | 1 Phase | 1.5" |
| 20700510185 | SC100 | 1.0 HP | 220V | 1 Phase | 1.5" |
| 20700510190 | SC150 | 1.5 HP | 220V | 1 Phase | 1.5" |
| 20700510195 | SC200 | 2.0 HP | 220V | 1 Phase | 1.5" |

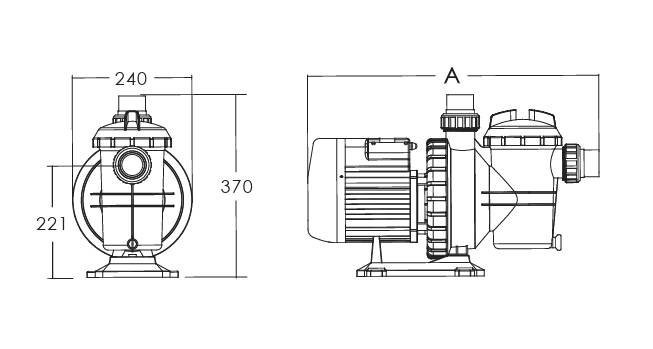

EMAUX SC Series Pump Dimensions
EMAUX SC Series Comparison
Current : 2.5 A
Flow @ Head 6 m : 6.8
Flow @ Head 8 m : -
Current : 3.5 A
Flow @ Head 8 m : 9 m³/h
Flow @ Head 10 m : -
Current : 4.7 A
Flow @ Head 8 m : 14 m³/h
Flow @ Head 10 m : 10 m³/h
Current : 5.9 A
Flow @ Head 8 m : 17.2 m³/h
Flow @ Head 10 m : 14 m³/h
Current : 8.2 A
Flow @ Head 8 m : 21 m³/h
Flow @ Head 10 m : 18 m³/h
Frequently Asked Questions
Choose the Right EMAUX SC Series Pump for Your Pool
Send us your pool size, pipe size, pipe run, and system equipment details, and our team can help determine the appropriate flow rate and head for your system.
