Centrifugal 3 HP/ 3 PH (380V) Pump
SKU : PU-WL-CEP030T
0 Sold
฿35,781
฿25,047
Quantity
Short Description
3 HP. /2.5 KW. 3 PH (380V) Flowrate 37 m³/h. (at Head 8 m,) Connection size 2"(63mm) (Update 02/11/2022)
Wishlist
Compare
Description
Download
VDO

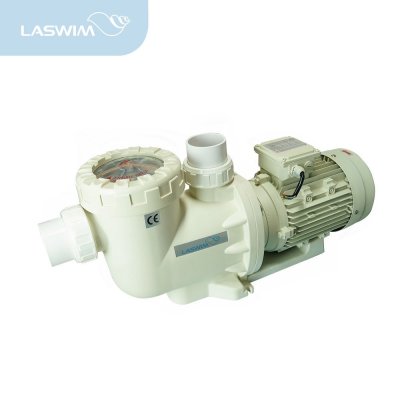

CEP Series Pump
LASWIM "CEP" Series swimming pool pump are used for commerical usage (e.g. Large-size swimming pool, spa pool, water feature, etc)
Features:
• Anti-rust can stop water penetrating the engine.
• Enough power, high head, big flux and high efficient circulation.
• Lower noise and run quietly.
• The pump cover bears high airtight preventing the leaking durable in extreme low or high temperature.
• Three-phase: 380v/50hz; 380v/60Hz model is available on request.
Product Details
| Model | Q-max (m3/h) | H-max (m) | Rated Power (KW/HP) | Phase | Voltage (V) | Inlet Port | Outlet Port |
| WL-CEP050T | 56 | 20.4 | 3.8 /5.0 | 3 | 380 | 2"63mm | 2"63mm |
| WL-CEP055T | 62 | 21.9 | 4.0/5.5 | 3 | 380 | 75mm | 75 mm |
| WL-CEP075T | 66 | 22.5 | 5.5/7.5 | 3 | 380 | 75mm | 75mm |
