Emaux SB20 2.0 HP/220V/50 Hz.
SKU : PU-EM-SB-200
22 Sold
Quantity
Short Description
2 HP/220V.8.2 Amp.connection 2 " Flowrate 25.2 m³/Hr.(@ 10m.) Box Dimension 34x69.5x48 cmGross Weightจ 23.32 kg. (Update 16/02/2026)
What is the EMAUX SB Series?
The EMAUX SB Series is a high-flow swimming pool pump designed for efficient water circulation. The pump features 2-inch suction and discharge ports, helping reduce pressure loss and making it suitable for systems that require high water circulation rates.
The strainer lid is transparent, allowing easy inspection of debris inside the basket. The Ring Lock Lid system makes opening and closing convenient for maintenance and helps reduce the risk of air leakage around the pump lid.
Key Features of the EMAUX SB Series
Designed to handle high flow rates, making it ideal for swimming pool circulation systems.
Large suction and discharge ports help reduce pressure loss in the system.
Transparent pump lid allows easy viewing and inspection of the internal strainer basket.
Ring-lock lid design provides easy opening and closing while improving sealing performance.
2-pole motor designed for swimming pool water circulation applications.
Built-in thermal protection and motor overload protection.
IPX5 water protection rating, suitable for swimming pool system applications.
S.S.316 stainless steel motor shaft with mechanical seal.
Flow Rate at 8 m Head and 10 m Head
This table provides a quick comparison between models. Flow rate values are based on EMAUX performance data.
| Model | Horsepower | Flow @ Head 8 m | Flow @ Head 10 m |
|---|---|---|---|
| SB10 | 1.0 HP | 14 m³/h | 11 m³/h |
| SB15 | 1.5 HP | 22 m³/h | 19.5 m³/h |
| SB20 | 2.0 HP | 28 m³/h | 25.2 m³/h |
| SB30 | 3.0 HP | 32 m³/h | 28.4 m³/h |
Performance Table: Head / Flow Rate
Flow rate is measured in cubic meters per hour (m³/h)
| Model | Input (kW) | Current (A) | Noise (dB) | Head (m) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 8 | 10 | 12 | 14 | 16 | ||||
| SB10 | 0.97 | 4.7 | 67 | 16.4 | 14 | 11 | 7 | - | - |
| SB15 | 1.30 | 5.9 | 67 | 24 | 22 | 19.5 | 16 | 12 | 2 |
| SB20 | 1.80 | 8.2 | 69 | 31 | 28 | 25.2 | 22 | 18 | 12 |
| SB30 | 2.18 | 10.5 | 69 | 34 | 32 | 28.4 | 26 | 23 | 19.2 |
Technical Specifications by Model
| Model | Power | Connection Size | Weight | Capacitor 220V |
|---|---|---|---|---|
| SB10 | 1.0 HP | 2" / 63 mm | 16.0 kg | 25 µF |
| SB15 | 1.5 HP | 2" / 63 mm | 17.0 kg | 25 µF |
| SB20 | 2.0 HP | 2" / 63 mm | 23.0 kg | 30 µF |
| SB30 | 3.0 HP | 2" / 63 mm | 24.0 kg | 35 µF |
EMAUX SB Series Models
| SKU | Model | HP | Voltage | Phase |
|---|---|---|---|---|
| 20700510150 | SB10 | 1.0 | 220V | 1 Phase |
| 20700510155 | SB15 | 1.5 | 220V | 1 Phase |
| 20700510160 | SB20 | 2.0 | 220V | 1 Phase |
| 20700510165 | SB30-220 | 3.0 | 220V | 1 Phase |
| 20700510170 | SB30-380 | 3.0 | 380V | 3 Phase |

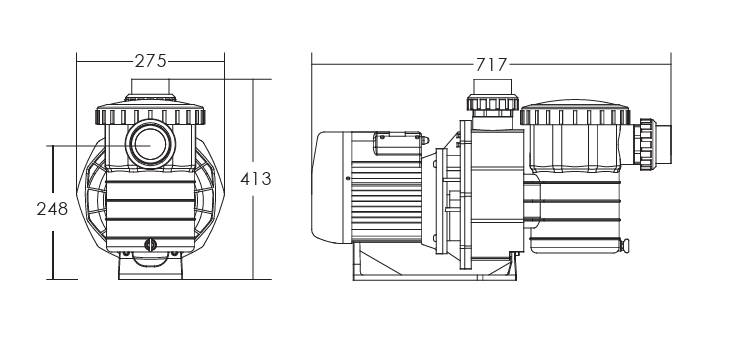

EMAUX SB Series Pump Dimensions
Dimensions of the EMAUX SB Series pump for planning installation space and piping layout.
Which EMAUX SB Model Should You Choose?
Flow @ 8 m = 14 m³/h
Flow @ 10 m = 11 m³/h
Flow @ 8 m = 22 m³/h
Flow @ 10 m = 19.5 m³/h
Flow @ 8 m = 28 m³/h
Flow @ 10 m = 25.2 m³/h
Flow @ 8 m = 32 m³/h
Flow @ 10 m = 28.4 m³/h
