เครื่องผลิตโอโซน

Model: QLC-60G, Ozone Output: 60G/Hr. Concentration: 42-45 ppm,70-85 ppm,,125-130 ppm Voltage: 220-240V/50Hz Power: 380W Dimension: 40*30*55 cm Net weight: 21kg Timer: 0-24 hours digital Treat air flow: ↑7,000-↑15,000 Ozone tube: ceramic plates Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel 304

Model: QLC-40G, Ozone Output: 40G/Hr. Concentration: 42-45 ppm,70-85 ppm,,125-130 ppm Voltage: 220-240V/50Hz Power: 300W Dimension: 40*30*55 cm Net weight: 20kg Timer: 0-24 hours digital Treat air flow: ↑7,000-↑15,000 Ozone tube: ceramic plates Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel 304

Model: QLC-20G, Ozone Output: 20G/Hr. Concentration: 42-45 ppm,70-85 ppm,,125-130 ppm Voltage: 220-240V/50Hz Power: 200W Dimension: 40*30*55 cm Net weight: 19kg, Timer: 0-24 hours digital Treat air flow: ↑7,000-↑15,000 Ozone tube: ceramic plates Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel 304

Model: QLA-30G Ozone Output: 30G/Hr Voltage: 220-240V/50-60Hz Power: 350W Air flow: 50 LPM (air pump) Dimension: 40*30*62.5 cm Net weight: 14 kg Concentration: 15-25 mg/L Ozone ouput adjustable: 10-100% Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel 304

Model: QLA-20G Ozone Output: 20G/Hr Voltage: 220-240V/50-60Hz Power: 280W Air flow: 50 LPM (air pump) Dimension: 40*30*62.5 cm Net weight: 14 kg Concentration: 15-25 mg/L Ozone ouput adjustable: 10-100% Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel 304

Model: QLA-15G Ozone Output: 15G/Hr Voltage: 220-240V/50-60Hz Power: 250W, Air flow: 50 LPM (air pump) Dimension: 40*30*62.5 cm Net weight: 14 kg Concentration: 15-25 mg/L Ozone ouput adjustable: 10-100% Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel 304

QLA-5G 5 g Voltage: 220-240V/50Hz Power: 80W Air flow: 16 LPM (air pump) Dimension: 23*18*46.5 cm Net weight: 5.1 kg Concentration: 15-25 mg/L Timer: 0-120 manual or continuously Purify area: 0-50 M3 Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel NW/GW 4.5kg/5.3kg

QLA-3G 3 g Voltage: 220-240V/50Hz Power: 60W Air flow: 16 LPM (air pump) Dimension: 23*18*46.5 cm Net weight: 5.1 kg Concentration: 15-25 mg/L Timer: 0-120 manual or continuously Purify area: 0-50 M3 Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel NW/GW 4.5kg/5.3kg

Ozone Output : 400mg/hr Timing :0-30Min Digital Power :15W Voltage : 220v-240V

Gas detected: ozone (O³) Detection principle: Electrochemical principle Sampling method: pump suction type Measure Range: 0-100ppm Resolution: 0.01ppm Precision: 2%FS Response time: ≤10S Repeatability: ≤±1% Zero shift: ≤±1% (F.S/year)

Gas Detected: Ozone water Measurement length: 0-10.00ppm Precision: 0.01ppm Accuracy: ±1%F.S Test temperature: 0.0-100.0℃、32-212°F Adjust way: 2 point( 0, anypoint) Lock function: Manual or automatic Storage function: 10 groups Electrode: CS6930 dosage ozone electrode Screen: 22*32mm LCD screen Automatic power off: 6 minutes no press button

Ozonated water output flow rate: 0.4-3.5M3/Hr Conxentration:1-5 ppm Outlet pressure: 2-3kg/cm^2 Voltage: 220V/50Hz Power: 1100W,1500W,1800W Temperature: 5-40℃ Inlet diameter: 3/4”,1” Outlet diameter: 1/2'',3/4'' Dimension: 50*40*120 cm,50*40*138 cm,50*40*138 cm Net weight: 50 kg,60 kg,70 kg. Purify pool water: 10 M3/Hr,20 M3/Hr,30 M3/Hr Ozone ouput adjustable: 10-100% Gas feeding: oxygen feeding Cooling way: Air cooling External case: Stainless steel 304

Ozonated water output flow rate: 0.4-3.5M3/Hr Conxentration:1-5 ppm Outlet pressure: 2-3kg/cm^2 Voltage: 220V/50Hz Power: 1100W,1500W,1800W Temperature: 5-40℃ Inlet diameter: 3/4”,1” Outlet diameter: 1/2'',3/4'' Dimension: 50*40*120 cm,50*40*138 cm,50*40*138 cm Net weight: 50 kg,60 kg,70 kg. Purify pool water: 10 M3/Hr,20 M3/Hr,30 M3/Hr Ozone ouput adjustable: 10-100% Gas feeding: oxygen feeding Cooling way: Air cooling External case: Stainless steel 304

Model: QLO-100G Ozone Output: 100G/Hr Voltage: 220-240V/50-60Hz Power: 1900W O2 flow: 18-20 LPM Dimension: 50*40*160 cm Net weight: 72 kg Concentration: 60-120 mg/L Ozone ouput adjustable: 10-100%Gas feeding: oxygen feeding Cooling way: Water cooling External case: Stainless steel 304

Model: QLO-50G Ozone Output: 50G/Hr Voltage: 220-240V/50-60Hz Power: 890W O2 flow: 10-11 LPM Dimension: 50*40*115 cm Net weight: 52.1 kg Concentration: 60-120 mg/L Ozone ouput adjustable: 10-100%Gas feeding: oxygen feeding Cooling way: Water cooling External case: Stainless steel 304

Model: QLO-30G Ozone Output: 30G/Hr Voltage: 220-240V/50-60Hz Power: 770W O2 flow: 6-7 LPM Dimension: 50*40*103 cm Net weight: 44.2 kg Concentration: 60-120 mg/L Ozone ouput adjustable: 10-100%Gas feeding: oxygen feeding Cooling way: Water cooling External case: Stainless steel 304

Model: QLO-20G Ozone Output: 20G/Hr Voltage: 220-240V/50-60Hz Power: 700W O2 flow: 4-5 LPM Dimension: 50*40*88 cm Net weight: 42.4 kg Concentration: 60-120 mg/L Ozone ouput adjustable: 10-100%Gas feeding: oxygen feeding Cooling way: Water cooling External case: Stainless steel 304

Model: QLO-15G Ozone Output: 15G/Hr Voltage: 220-240V/50-60Hz Power: 630W O2 flow: 2-3 LPM Dimension: 50*40*88 cm Net weight: 39 kg Concentration: 60-120 mg/L Ozone ouput adjustable: 10-100%Gas feeding: oxygen feeding Cooling way: Air cooling External case: Stainless steel 304

Model: QLO-10G Ozone Output: 10G/Hr Voltage: 220-240V/50-60Hz Power: 510W O2 flow: 2-3 LPM Dimension: 50*40*73 cm Net weight: 32.8 kg Concentration: 60-120 mg/L Ozone ouput adjustable: 10-100%Gas feeding: oxygen feeding Cooling way: Air cooling External case: Stainless steel 304

Model: QLA-100G Ozone Output: 100G/Hr Voltage: 220-240V/50-60Hz Power: 1040W Air flow: 75 LPM(air compressor) Dimension: 50*45*110 cm Net weight: 53 kg Concentration: 15-25 mg/L Ozone ouput adjustable: 10-100%Gas feeding: Clean dry air Cooling way: Water cooling External case: Stainless steel 304

Model: QLA-50G Ozone Output: 50G/Hr Voltage: 220-240V/50-60Hz Power: 530W Air flow: 58 LPM (air compressor) Dimension: 50*40*91 cm Net weight: 39 kg Concentration: 15-25 mg/L Ozone ouput adjustable: 10-100%Gas feeding: Clean dry air Cooling way: Water cooling External case: Stainless steel 304

Model: QLA-10G-D Ozone Output: 10G/Hr Voltage: 220-240V/50-60Hz Power: 140W Air flow: 40 LPM (air pump) Dimension: 32*25*52.5 cm Net weight: 10.3kg Concentration: 15-25 mg/L Timer: 0-24 hours digital Purify area: 0-150 M3 Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel 304

Model: QLA-10G-M Ozone Output: 10G/Hr Voltage: 220-240V/50-60Hz Power: 140W Air flow: 40 LPM (air pump) Dimension: 32*25*52.5 cm Net weight: 10.3 kg Concentration: 15-25 mg/L Timer: 0-24 hours manual Purify area: 0-200 M3 Gas feeding: Clean dry air Cooling way: Air cooling External case: Stainless steel 304

Voltage : 220V Power : 510W Amp: 2.31 A สำหรับสระว่ายน้ำ ไม่เกิน :70 Q(ลูกบาศก์เมตร) ท่อเข้าออก : Union UPVC 2”m (update 1/05/2024)

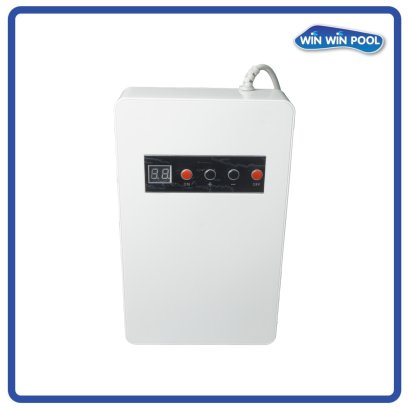

OZONE GENERATOR เครื่องผลิตโอโซน  Ozone Output : 500mg/h Voltage : 220v-240V Power :15W

✅ ขนาด 35 Gram/Hour ✅ เหมาะสำหรับสระไม่เกิน 70-90m³(คิว) (Update 17/03/2025)

✅ ขนาด 25 Gram/Hour ✅ เหมาะสำหรับสระไม่เกิน 50-70m³(คิว) (Update 17/03/2025)

Advanced Oxidation Process (AOP) OZONE GENERATOR water volume 200 m³ Ozone Output 8 g/h 220v/50Hz ,1.8 KW. WEIGET(flood) : 220kg WEIGET(empty) 189 Kg. DIMENSIONS LxHxW : 700x620x1775mm (Update 05/04/2025)

Advanced Oxidation Process (AOP) OZONE GENERATOR water volume 100 m³ Ozone Output 5 g/h 220v/50Hz ,1.1 KW. Weight 140 kg.,LxWxH:70*60*172cm (Update 05/04/2025)

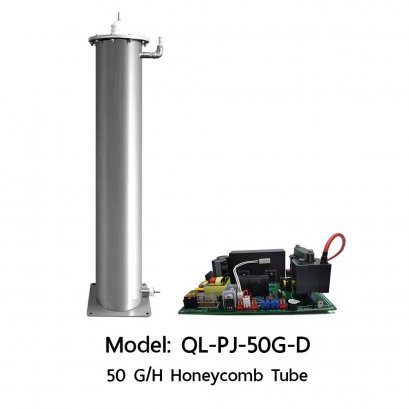

Ozone output 50g/h Power consumption: 450W Ozone Tube Accessorles Honeycomb Tube Ozone tube size: 670*120*120MM Powwer board size:138*88*200 mm Voltage : 220V/50Hz Adjustable:10-450w

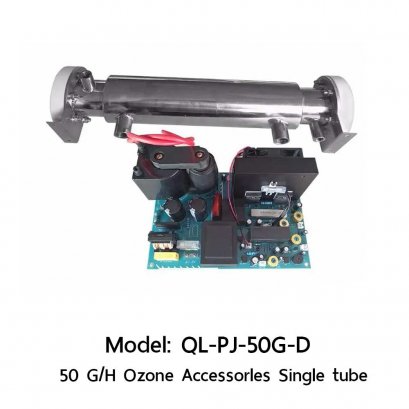

Ozone output 50g/h Power consumption: 450W Ozone Tube Accessorles Single tube Ozone tube size: 670*120*120MM Powwer board size:138*88*200 mm Voltage : 220V/50Hz Adjustable:10-450w

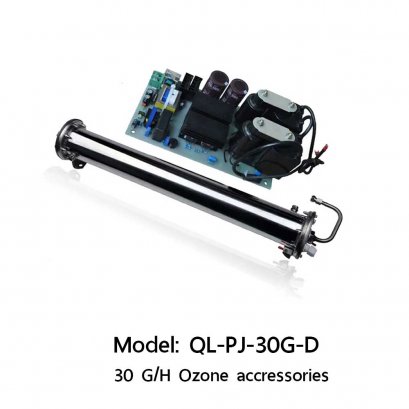

Ozone output 30g/h Power consumption: 450W Ozone tube size: 470*120*120MM Powwer board size:138*88*200 mm Voltage : 220V/50Hz Adjustable:10-450w
