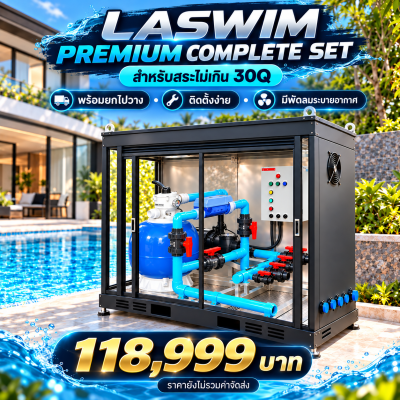

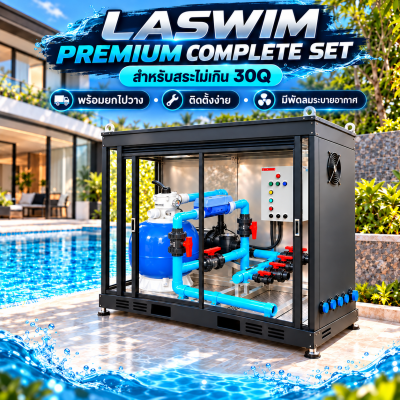

LASWIM PREMIUM COMPLETE SET 30Q Prefabricated Pool Equipment Room
SKU : LASWIM-BLUE-03-30Q-12
0 Sold
Quantity
Short Description
LASWIM Premium Complete Set for swimming pools up to 30 m³. Includes a LASWIM pool pump, IDG500 sand filter, EC12 salt chlorinator, UPVC piping, valves and electrical control panel inside a prefabricated equipment room
LASWIM PREMIUM COMPLETE SET 30Q
Product Details
Prefabricated Pool Equipment Room
A complete filtration and sanitation system designed for swimming pools up to 30 m³. The set combines a pool pump, sand filter, salt chlorinator, piping, valves, and electrical control panel inside a prefabricated equipment enclosure, assembled and system-tested before delivery.
Product Overview
The LASWIM Premium Complete Set is a prefabricated pool equipment room that integrates the main circulation, filtration, and salt chlorination components into one compact system. It reduces on-site assembly work and keeps equipment and piping organized for easier inspection and maintenance.
The enclosure is made from black-coated stainless steel with solid roof and side panels, sliding glass doors, ventilation fan, crane lifting points, and forklift slots for easier handling and installation.
Main Equipment
LASWIM Pool Pump
Provides water circulation from the pool through the filtration system.
Or an equivalent or higher-spec model.
LASWIM IDG500 Sand Filter
Captures suspended debris and contaminants from the circulating pool water.
Or an equivalent or higher-spec model.
LASWIM EC12 Salt Chlorinator
Generates chlorine from dissolved salt while the circulation system is operating.
Or an equivalent or higher-spec model.
Included Components
Product Highlights
Black-coated stainless steel enclosure with solid roof and panels helps protect the installed equipment.
Sliding glass doors, unions, and valves provide convenient access for inspection and servicing.
Crane lifting points and forklift slots make the equipment room easier to handle and position on site.
An integrated ventilation fan helps reduce heat accumulation around the equipment.
Application Data
| Recommended pool volume | Up to 30 m³ |
| System flow rate | Approx. 10 m³/h based on the specified equipment |
| Theoretical turnover for a 30 m³ pool | Approx. 3 hours per turnover |
| Sanitation system | 12 g/h salt chlorinator |
| Installation surface | Level concrete base with adequate load capacity and drainage |
Note: Actual flow depends on pipe length, fittings, elevation, and site installation conditions.
Installation Guidelines
Provide a level concrete surface with sufficient load capacity and proper drainage.
Use the crane lifting points or forklift slots provided in the base.
Connect the pool suction and return lines to the prepared connection points.
Electrical work should be completed by a qualified technician.
Check flow, leaks, pump operation, filter performance, and salt chlorinator operation before use.
Maintenance
Remove accumulated debris and check water circulation regularly.
Perform Backwash and Rinse when filter pressure rises noticeably above the clean operating pressure.
Check for calcium scale, salt level, and cell condition at appropriate intervals.
Check for leaks and verify valve operation during routine maintenance.
Frequently Asked Questions
Can this system be used for pools larger than 30 m³?
This configuration is based on equipment intended for pools of approximately 30 m³ or less. Larger pools should be recalculated for pump capacity, filter size, and chlorine output.
Can it be connected to an existing pool?
It can be adapted to many existing pools, subject to verification of pipe size, distance from the pool, installation location, and electrical supply.
Can the equipment room be installed outdoors?
It should be installed on a stable, well-drained surface away from flood-prone areas, with enough surrounding clearance for ventilation and maintenance access.
What does equivalent or higher-spec model mean?
It refers to equipment with key specifications equal to or higher than those stated. The actual model and technical data should be confirmed before installation.
How is salt chlorination different from manually adding chlorine?
A salt chlorinator uses electrolysis to generate chlorine from dissolved salt while the circulation system operates. Pool owners must still monitor pH, salt level, and free chlorine regularly.
LASWIM Premium Complete Set 30Q
Contact WINWINPOOL for technical information, system sizing, and installation suitability.
