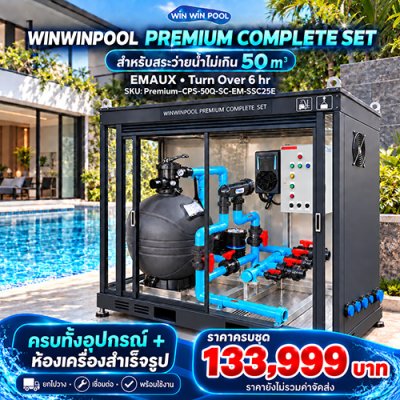

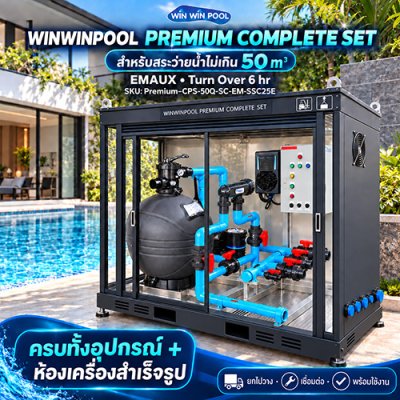

WINWINPOOL Premium Complete Set EMAUX – Prefab Pool Equipment Room with Salt Chlorinator, up to 50 m³
SKU : Premium-CPS-50Q-SC-EM-SSC25E
0 Sold
Quantity
Short Description
A premium prefabricated pool equipment room with the complete system inside. Place it next to the pool, connect the pipes and power, and it is ready to run. No need to build a separate plant room.
For pools up to 50 m³, designed for a 6-hour turnover
EMAUX MFV24 24" sand filter with filter sand included
EMAUX SC150 1.5 HP pool pump
EMAUX SSC25E salt chlorinator, 25 g/hr
Control Panel No.15 with a full set of ACE valves
Black-coated stainless steel frame, sliding glass doors, ventilation fan
Crane lifting eyes and forklift pockets, factory-assembled and tested
System Specifications
Every component is sized to work together as one system, for pools up to 50 cubic meters.
| Pool volume | Up to 50 m³ |
|---|---|
| Turnover rate | 6 hours |
| Pool pump | EMAUX SC150, 1.5 HP, flow rate 14 m³/hr at 10 m head |
| Sand filter | EMAUX MFV24, 24", top mount, filtration rate 14 m³/hr |
| Salt chlorinator | EMAUX SSC25E, output 25 g/hr |
| Control panel | Control Panel No.15 |
| Main valves | ACE Spring Check Valve 2" x1, ACE UPVC Ball Valve 2" x6, ACE UPVC Ball Valve 1/2" x1 |
What's in the Set
EMAUX MFV24 Sand Filter
- 24" diameter
- Top-mount multiport valve
- Filtration rate 14 m³/hr
- Includes fine filter sand, 45 kg, 3 bags
EMAUX SC150 Pool Pump
- 1.5 HP
- Flow rate 14 m³/hr at 10 m head
- Sized to match the filter and the pool volume
EMAUX SSC25E Salt Chlorinator
- Chlorine output 25 g/hr
- Automatically produces chlorine from salt in the pool water
- Easy to use and simple to maintain
Control Panel No.15
- Controls the pump and other equipment in the system
- Neatly assembled and wired
- Easy to operate and monitor
Valves and Pipework
- ACE Spring Check Valve 2", 1 pc
- ACE UPVC Ball Valve 2", 6 pcs
- ACE UPVC Ball Valve 1/2", 1 pc
- PVC pipework, fittings, unions and installation accessories
- Internal equipment support frame, factory-assembled system
Premium Equipment Room Highlights
High-grade stainless steel frame with black coating
Strong and durable for poolside use. The sleek black finish looks modern and suits a wide range of home styles.
Solid roof and walls
Protects equipment from direct sun, dust and water spray, keeping the equipment room clean and tidy.
Sliding glass doors
See the equipment inside at a glance. Doors open and close easily for quick inspection and maintenance.
Ventilation fan
Removes heat and reduces humidity inside the room, creating the right environment for electrical equipment and machinery.
Lifting eyes for hooks or cranes
Built-in lifting points on the frame make it easy to move and place the room at the installation site.
Forklift pockets
Lift and move the unit by forklift with less hassle and less risk of damage to the equipment inside.
Pipe connections with protective caps
The suction line from the pool and the clean-water return line are grouped neatly on the side wall, with caps to keep dirt out during transport. On site, simply remove the caps and connect to the pool's pipework.
Engineered and Assembled the Right Way
WINWINPOOL doesn't just put equipment in a box. We design every component to work together as one system. The exterior can be copied, but real understanding of pool systems is hard to copy. With more than 18 years of experience, we handle everything from equipment selection, system calculation, assembly and testing to after-sales support.
Every position has a reason
Every valve must actually work
Every component must be reachable for maintenance
And everything must work together as it should
- Pump and filter are correctly matched
- Chlorinator is sized to the water volume
- Ball valves and check valve are positioned correctly
- Flow direction and pipe routing designed to reduce resistance
- Service points for easy maintenance
- Pipework firmly fixed and supported
- Layout designed for real-world access
Who Is It For?
Homes and villas with a private pool
Pools up to 50 m³ that need a good-looking equipment room without extra construction.
Contractors and pool builders
Less on-site system assembly, with easier control over time and workmanship.
Existing pools upgrading the equipment room
Switch an old system to salt chlorination with a new equipment room in one go.
Resorts and small pool villas
A tidy equipment room that fits the design and is easy to access for service.
On-Site Installation Steps
Place it. Connect it. Ready to use.
- 1
Prepare the base
Pour a flat, level concrete slab that can carry the room's weight, drains well and leaves space in front to open the sliding doors.
- 2
Lift into place by forklift or crane
Use the forklift pockets or lifting eyes, and position the pipe-connection side facing the pool's pipework.
- 3
Connect suction and return lines
Remove the caps on the side wall and connect each line to the correct pool pipe. Check every joint for leaks.
- 4
Connect the power
Have an electrician wire the control panel with an earth-leakage breaker and grounding, following electrical standards for pool areas.
- 5
Add salt to the pool
Use pool-grade salt in the amount specified in the SSC25E manual, and let it fully dissolve before switching on the chlorinator.
- 6
Test the system and start up
Backwash the filter sand for the first time, then check the pressure gauge, water flow and chlorinator operation.
Tip: Place the equipment room close to the pool and near the water level so the pump can draw water easily. If it must sit above the water level or far from the pool, please contact our team to check pipe distance and pressure before installation.
Maintenance
Weekly
- Clean the pump strainer basket
- Keep pH at around 7.27.6 and check pool chlorine
- Watch the filter pressure gauge and backwash when it rises clearly above normal
Monthly
- Check pool salt level as specified in the manual
- Inspect the chlorinator cell and clean off any scale as the manual describes
- Check the ventilation fan and look for leaks at the joints
Long term
- Replace the filter sand, typically every 35 years depending on use
- Keep the glass doors closed to keep out dust and rain
- Have an electrician inspect the control panel and wiring periodically
Frequently Asked Questions
What pool size is this set for?
It is designed for pools up to 50 cubic meters, calculated so the full pool volume passes through the filter in about 6 hours. For larger pools, our team will design a set of the right size.
I don't know my pool volume. How do I calculate it?
For a rectangular pool, multiply width x length x average depth (meters). For example, a 4 x 8 m pool with an average depth of 1.4 m holds about 44.8 m³, which is within this set's range. For free-form pools, send us the drawing or dimensions and our team will help calculate.
How is a salt system different from adding chlorine manually?
The chlorinator produces chlorine from salt dissolved in the pool water while the pump runs, so you don't need to add chlorine regularly and levels stay more consistent. You still need to check pH and salt level from time to time.
What kind of salt should I use?
Use high-purity pool salt without iodine or anti-caking agents. Do not use cooking salt. The amount needed depends on pool volume and the level specified in the chlorinator manual.
What needs to be prepared on site?
All equipment listed: sand filter with sand, pump, salt chlorinator, control panel, valves and pipework, factory assembly and the prefabricated equipment room. Shipping is not included and is quoted based on the installation location.
If equipment has a problem, is it hard to service?
The equipment is laid out for easy access, with unions that let you remove each component for service without cutting pipes. You can also contact the WINWINPOOL team for after-sales advice.
