UW30 Series Underwater Loudspeakers **No Stock, Delivery Time : 30 60 Days

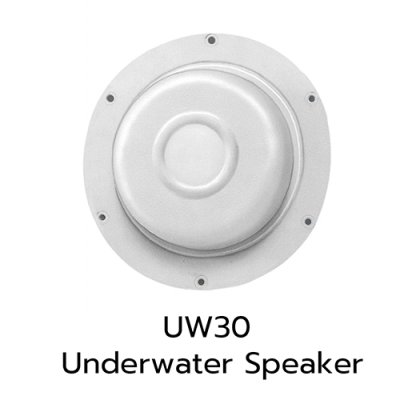

UW30 Series Underwater Loudspeakers

Made Made in USA

The UW30 represents a departure in the design of underwater sound sources. Its unique design U.S. Patent #3,670,299, utilizes the case’s structural enclosure as the sound transducer. This development makes possible a speaker that has no metal parts exposed to the outside, thus eliminating rust, corrosion or other causes of short-life expectancy. The transducer principle and its strong construction allow the UW30 to operate at much greater depths than any prior type of underwater loudspeaker design. The 12.7-punce ceramic magnet and stage-of-the-art voice coil construction ensure full-fidelity response with the lowest possible distortion throughout its power range.

The UW30 is equipped with a waterproof, 3 conductor 15.24m (50ft) cable.

The UW30 underwater loudspeaker is designed for permanent installation and completely submerged operation. All internal components are encapsulated with a “hot-melt” (Polyamide Copolymer) process. The outer case is constructed of high impact ABS plastic, ideal for installation in both fresh and saltwater pools, the UW30 can even by installed in ocean environments without adverse effect. Problem such as corrosion and electrolysis damage inherent in all or partial metal underwater speakers are completely eliminated by the plastic construction of the UW30.

Use for water ballets, water show and even resort and private pools
Equipped with a waterproof
Designed for permanent installation and completely submerged operation

Versions Available:

UW30........................................................... 50 feet of cable (15.24 m)

System Type:............................................. Underwater loudspeaker system
Frequency Response:............................ 100-10,000 Hz

Power Handling, (500-5,000 Hz pink noise):............30 watts
Impedance:............................................................................. Nominal: 8 ohms
Dispersion:...............................................................................Omnidirectional underwater

Operating Depth: ............................Up to 3.0 m (10.0 ft) below surface of water
Recommended Installation Depth:............................... 1.2 m (4.0 ft)
Finish:........................................................................................ Pool blue
Dimensions,
                     Overall Diameter:......................................... 182.6 mm (7.19 in.)
                    Depth:................................................................. 66.3 mm (2.61 in.)
Shipping Weight:.................................................................. 1.8 kg (4.0 Ib)

Dimension
