SWP550-6P 5.5 HP/380V/3 Phase EMAUX**No Stock, Delivery Time 90 Days

(0)

SKU : PU-EM-SWP550-6P

Inlet x Outlet x Impeller 5.5 HP/380V/3 Phase *สินค้า ไม่มีสต๊อค กรุณาสั่ง ล่วงหน้า 90 วัน / No Stock, Delivery Time 90 Days

฿807,422

฿460,231

Promotion

Minimum spent ฿5,000 discount 4%

Minimum spent ฿20,000 discount 5%

Minimum spent ฿40,000 discount 6%

Minimum spent ฿50,000 discount 7%

Quantity

Request a Quote

Categories : Pumps , EMAUX , SWP Pump

Brands :EMAUX

รายละเอียดสินค้า

Download

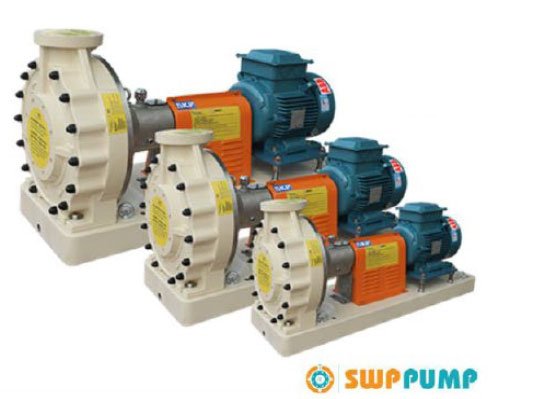

“EMAUX” SWP Series Corrosion Resistant FRP Pump
For aquatic park, aquarium & zoo, and water treatment

STRONG RESISTANCE TO CORROSIVE LIQUIDS

SWP Series Pump combines materials and manufacturing technology to provide strong resistance to corrosive liquids and the reliability to work under extreme environments.

The SWP pump is a Single Stage, End Suction, Horizontal Centrifugal Pump, designed to ISO 5199-2002 Standards for Chemical Process Pumps. The pumps are designed with vertical centerline discharge and back pull-out construction. All wet parts are corrosion resistant and non-metallic.

Mechanical Seal

When used with sea water, traditional mechanical seals can easily crystalise and solid particles can lead to rapid wear of the seal face and rotating ring.

Silicone Carbide rotating and static rings together with PTFE bellows and O-rings provide a high level of resistance to the highly corrosive environment of sea water.

Model	Inlet x Outlet x Impeller Dia (mm)	RPM	HP	Power	Weight(kg)
SWP550-6P*	150 x 100 x 250	950	5.5hp	4.0kW	420
SWP750-6P*	150 x 100 x 270	950	7.5hp	5.5kW	435
SWP1000-6P*	200 x 150 x 270	950	10.0hp	7.5kW	643
SWP1500-6P*	200 x 150 x 300	950	15.0hp	11.0kW	665
SWP6000-6P*	300 x 250 x 405	950	60.0hp	45.0kW	1020
SWP550-4P*	100 x 80 x 205	1450	5.5hp	4.0kW	285
SWP750-4P*	100 x 80 x 220	1450	7.5hp	5.5kW	300
SWP1000-4P*	150 x 100 x 225	1450	10.0hp	7.5kW	417
SWP1500-4P*	150 x 100 x 250	1450	15.0hp	11.0kW	480
SWP2000-4P*	200 x 150 x 250	1450	20.0hp	15.0kW	647
SWP2500-4P*	200 x 150 x 265	1450	25.0hp	18.5kW	677
SWP3000-4P*	200 x 150 x 280	1450	30.0hp	22.0kW	694
SWP4000-4P*	200 x 150 x 295	1450	40.0hp	30.0kW	763
SWP5000-4P*	200 x 150 x 310	1450	50.0hp	37.0kW	796
SWP6000-4P*	200 x 150 x 325	1450	60.0hp	45.0kW	828
SWP1000-2P*	100 x 80 x 155	2900	10.0hp	7.5kW	322
SWP1500-2P*	100 x 80 x 170	2900	15.0hp	11.0kW	345
SWP2000-2P*	100 x 80 x 185	2900	20.0hp	15.0kW	358
SWP2500-2P*	100 x 80 x 200	2900	25.0hp	18.5kW	377
SWP3000-2P*	100 x 80 x 215	2900	30.0hp	22.0kW	403
