Pump WhisperFloXF XFE-8-AP 2 HP/230V/50Hz Pentair
SKU : PU-PT-AP022009-E3
0 Sold
฿58,025
฿31,914
Quantity
18 items available
Short Description
2 HP/1 PH/ Flowrate: 29 m³/Hr.(@ 8 m/Port Size 2.5"x2.5"OR 3x3" Packing : 30x77x40 cm. Weight(kg.): 25 KG. Warranty: 1 year
Brands: Pentair
Wishlist
Compare
Description
Download
VDO

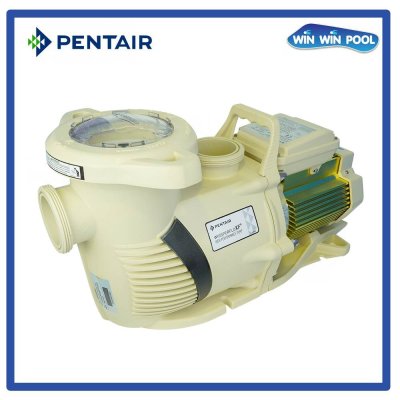

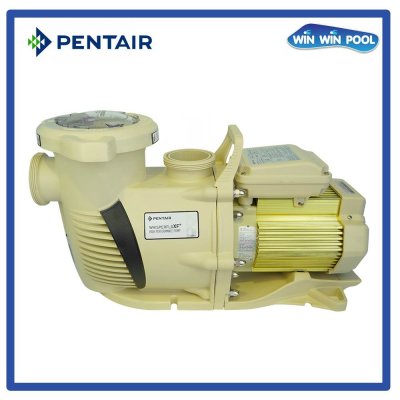

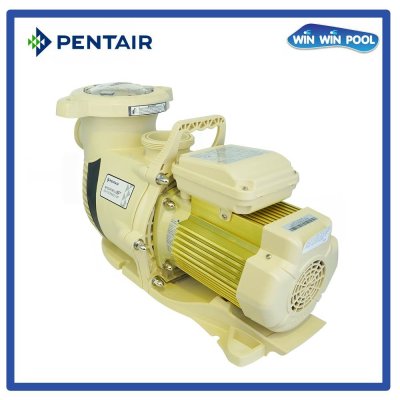

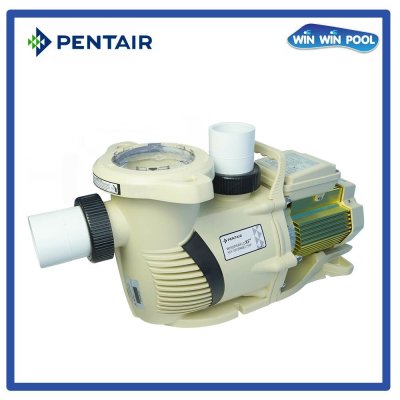

WhisperFloXF Swimming Pool Pump
HIGH PERFORMANCE PUMPS
WhisperFloXF Pump
Developed using the most advanced engineering tools – CFD (Computational Fluid Dynamics) and FEA (Finite Element Analysis). The impeller is designed with high concentric precision to maximize performance.
Features
- Single-phase models come with efficient IE3 motors.
- 3-phase models come with TEFC motors.
- Drop-in replacement for all WhisperFlo pump models.

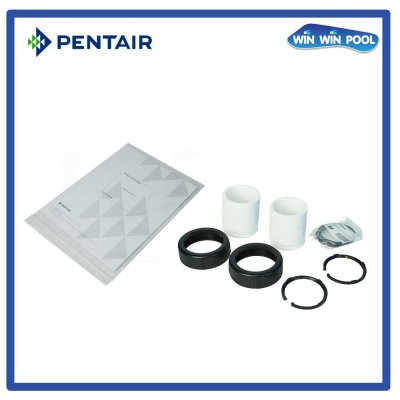

- Comes with union connectors for direct 2.5 inch or 3 inch piping.

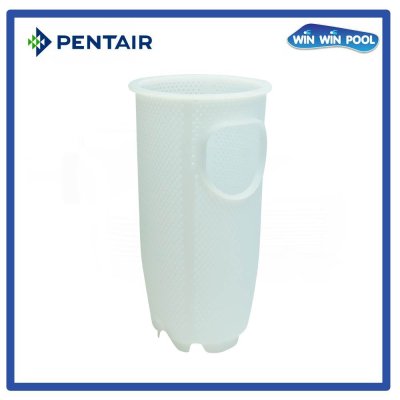

- Extra-large, robust, and durable basket with a smooth surface for easy debris removal.
- Convenient handle; easy-to-remove ergonomic locking ring; and see-through lid for easy inspection.
Specifications
| Product | Model | Voltage | Hz | HP | Full Load AMP | Port Size | Carton Wt. (Kg) |
| SINGLE PHASE IE3 50HZ. ODP | |||||||
| AP022009-E3 | XFE-8-AP | 230V | 50 | 2 | 8.4 | 2.5"x2.5"OR 3x3" | 25 |
| AP022010-E3 | XFE-12-AP | 230V | 50 | 3 | 11.6 | 2.5"x2.5"OR 3x3" | 27 |
| THREE PHASE SUPER-DUTY -50HZ. TEFC | |||||||
| AP022018 | XFK-12-AP | 380-415V | 50 | 3 | 4.5-4.3 | 2.5"x2.5"OR 3x3" | 27 |
| AP022019 | XFK-20-AP | 208-230/460V | 60 | 5 | 13.9-13.1/6.6 | 2.5"x2.5"OR 3x3" | 33 |
Dimension
