-37%
Switch I O II 250VAC / 6A for SSC Model SSC15T/SSC 25T
SKU : SP-106171405
0 Sold
฿330
฿209
Quantity
Short Description
Switch I O II 250VAC / 6A ( updete 30/03/2026)
Brands: EMAUX
Wishlist
Compare
Product description

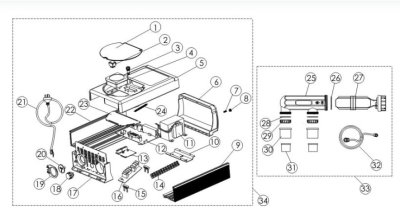

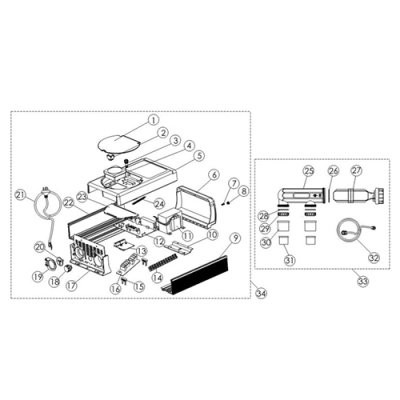

| Key NO. | Codes | Part NO. | Descriptions | Qty (Pieces) | Price 2026 (Inc. VAT) | Website |
|---|---|---|---|---|---|---|
| 1 | 20920510530 | 530090442 | Door Model | 1 | 579.00 | 348.00 |
| 2 | 20920510650 | 106171405 | Switch I O II 250VAC / 6A | 1 | 348.00 | 209.00 |
| 3 | 20920510535 | E130011 | Fuse Seat 2.5A SSC15 | 1 | 678.00 | 407.00 |
| 3 | 20920510540 | E130010 | Fuse Seat 6.3A SSC25/50 | 1 | 777.00 | 467.00 |
| 4 | 20920510655 | 106591524 | Timer Analogue Battery Pack | 1 | 11,949.00 | 7,170.00 |
| 5 | 20920510545 | 530080442 | SSC Lid | 1 | 3,428.00 | 2,057.00 |
| 6 | 20920510550 | 530060442 | Chlorinator Top Cover | 1 | 1,534.00 | 921.00 |
| 7 | 20920510555 | 112002636 | M4 x 10 Screw | 30 | 99.00 | 60.00 |
| 8 | 20920510560 | 111212512 | Plastic Caps for Chlorinator Top Cover | 4 | 99.00 | 60.00 |
| 9 | 20920510565 | 116093340 | Profile B | 1 | 3,428.00 | 2,057.00 |
| 10 | 20920510570 | 116113342 | Hanging Bracket | 1 | 579.00 | 348.00 |
| 11 | 20920510210 | 106166313 | Transformer for SSC15 | 1 | 15,062.00 | 9,038.00 |
| 11 | 20920510215 | 106166314 | Transformer for SSC25 | 1 | 17,484.00 | 10,491.00 |
| 11 | 20920510220 | 106166315 | Transformer for SSC50 | 1 | 28,559.00 | 17,136.00 |
| *12 | 20920510230 | E130030 | SSC15 PCB Control Complete (Ver5.6.2) | 1 | 22,328.00 | 13,397.00 |
| *12 | 20920510235 | E130031 | SSC25 PCB Control Complete (ver5.6.2) | 1 | 22,328.00 | 13,397.00 |
| *12 | 20920510240 | E130032 | SSC50 PCB Control Complete (ver5.6.2) | 1 | 25,789.00 | 15,474.00 |
| 13 | 20920510265 | E130042 | EMC Board (without Light)(ver2.0) | 1 | 7,795.00 | 4,677.00 |
| 14 | 20920510225 | 106271455 | Terminal Jumper | 1 | 579.00 | 348.00 |
| *15 | 20920510580 | 106147653 | Fuse 30A for SSC50 (Ver5.6.1 and 5.6.2) - Blade Type | 2 | 513.00 | 308.00 |
| *15 | 20920510585 | E130009 | Fuse carrier with fuse and cable for SSC50 (Ver5.6 or before) - Cylindrical Type | 1 | 1,336.00 | 802.00 |
| *16 | 20920510250 | E130052 | SSC15 Silicon contrlled combination(ver1.5) | 1 | 7,795.00 | 4,677.00 |
| *16 | 20920510255 | E130053 | SSC25 Silicon contrlled combination(ver1.5) | 1 | 9,526.00 | 5,716.00 |
| *16 | 20920510260 | E130054 | SSC50 Silicon contrlled combination(ver1.7) | 1 | 11,256.00 | 6,754.00 |
| 12+16 | 20920510785 | E130061 | SSC15 PCB Complete Set (V5.6.2) including Silicon Control | 1 | 20,764.00 | 12,459.00 |
| 12+16 | 20920510790 | E130062 | SSC25 PCB Complete Set (V5.6.2) including Silicon Control | 1 | 22,328.00 | 13,397.00 |
| 12+16 | 20920510795 | E130063 | SSC50 PCB Complete Set (V5.6.2) including Silicon Control | 1 | 25,789.00 | 15,474.00 |
| 17 | 20920510660 | 530100444 | Bottom Panel Comp | 1 | 1,138.00 | 683.00 |
| 18 | 20920510435 | 106481502 | SP Power Point | 1 | 2,293.00 | 1,376.00 |
| 19 | 20920510665 | E130017 | Component Enclosure Plate | 2 | 198.00 | 119.00 |
| 20 | 20920510670 | 106111391 | 250V/10A Jack for Australia | 1 | 957.00 | 575.00 |
| 21 | 21040510245 | 105021259 | Cable with Euro Plug | 1 | 1,714.00 | 1,029.00 |
| 21 | 20920510455 | 105011249 | Cable with Australian Plug | 1 | 1,714.00 | 1,029.00 |
| 22 | 20920510595 | 116093339 | Profile A | 1 | 3,428.00 | 2,057.00 |
| 23 | 20920510600 | 530070442 | Fense Cover | 1 | 315.00 | 189.00 |
| 24 | 20920510575 | 112062661 | Spring | 1 | 315.00 | 189.00 |
| 25 | 20920510610 | 530040442 | Cell Housing | 1 | 5,027.00 | 3,017.00 |
| 26 | 20920510615 | 111192492 | O-Ring for Housing | 1 | 264.00 | 159.00 |
| 27 | 20920510150 | 8050018 | Replacement Cells for SSC15 . | 1 | 34,441.00 | 20,665.00 |
| 27 | 20920510155 | 8050019 | Replacement Cells for SSC25 & SSC50 | 1 | 41,033.00 | 24,620.00 |
| 28 | 20650510220 | 111202472 | O-Ring for Union | 2 | 198.00 | 119.00 |
| 29 | 20650510275 | 430170991 | 2.0" Union Nut (White) | 2 | 495.00 | 297.00 |
| 30 | 20650510270-1 | 430300989 | 2.0" Union (A/E) | 2 | 495.00 | 297.00 |
| 31 | 20920510160 | 430300943 | 1.5" Union | 2 | 264.00 | 159.00 |
| 32 | 20920510620 | 9130021 | SSC50 Salt Chlorinator Cable Set | 1 | 7,795.00 | 4,677.00 |
| 33 | 20920510625 | 9130022 | Complete Cell kits for SSC15 (with cable) | 1 | ติดต่อฝ่ายขาย | |
| 33 | 20920510630 | 9130023 | Complete Cell kits for SSC25&SSC50, SSCone (with cable) | 1 | ติดต่อฝ่ายขาย | |
| 34 | 20920510675 | 9130027 | SSC15-T Control Unit | 1 | ติดต่อฝ่ายขาย | |
| 34 | 20920510680 | 9130028 | SSC25-T Control Unit | 1 | ติดต่อฝ่ายขาย | |
| 34 | 20920510685 | 9130029 | SSC50-T Control Unit | 1 | ติดต่อฝ่ายขาย | |
* Note 12, 13, 16:
For PCB Control Complete, Silicon controlled combination and EMC Board, there are different versions, please follow below
