ปั๊ม MAYGO NSE 3 HP Single Phase 220V. 2"

(0)

SKU : PG-MG-NSE250

3 HP. 220V Flowrate 36 m³/h. (at Head 8 m,) Connection size 2" (Update 03/02/2025)

฿19,303

฿11,582

There is an installment plan with a 0% interest rate (you can check the monthly installment calculation on the payment page).

Promotion

Minimum spent ฿5,000 discount 5%

Minimum spent ฿20,000 discount 6%

Minimum spent ฿40,000 discount 7%

Minimum spent ฿50,000 discount 8%

Quantity

Request a Quote

Categories : Pumps , MAYGO , NSE PUMP

Brands :MAYGO

รายละเอียดสินค้า

Download

VDO

Materials

• Engineering plastics made water inlet and outlet
• Mechanical seal module material: Graphite/ Silicon Carbide
• O-ring: NBR
• Aluminium motor casing

Working Condition

• Working Temp: 5-50°C
• Ambient temp: ≤ 40°C
• Working pressure: 0.3MPa
• Max Self-priming Height
• 3 meters

Morter
•230/380V asynchronous two-pole motor
• Protection class: IP55
• Insulation class: F
• Continuous operation capability
• Built-in overheat protection short circuit device

Model	P1		MaxHead (m)	Max Flow		LWH(cm)	GW(KG)
Model	KW	HP	MaxHead (m)	(m³/h)	(l/min)	LWH(cm)	GW(KG)
NSE120	1.1	1.5	12.0	24	400	763544	19.6
NSE150	1.5	2	14.7	27	450	763544	20.6
NSE200	1.85	2.5	17.5	32	533	763544	23.5
NSE250	2.2	3	19	35	583	763544	24.7
NSE300	3	4	23	39	650	763544	25.6

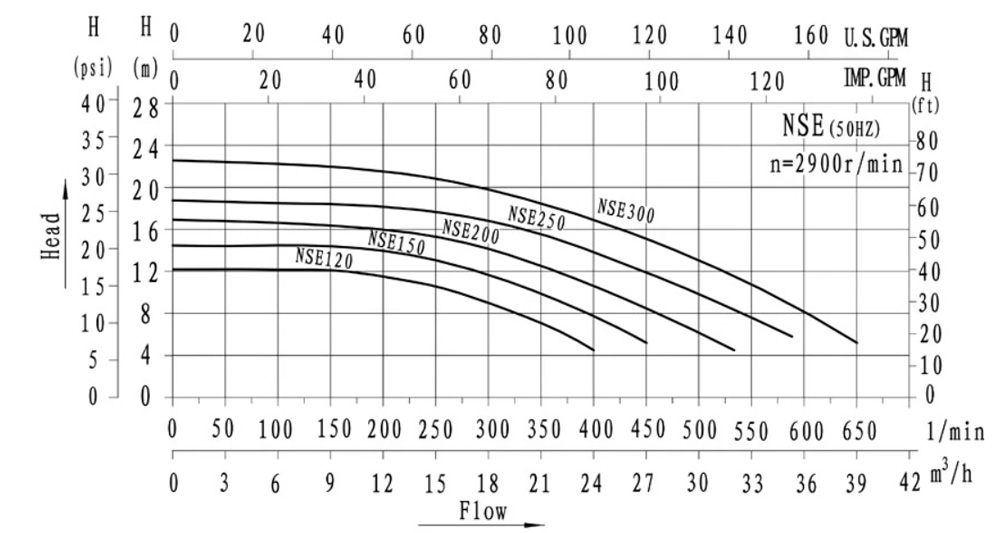

Curve

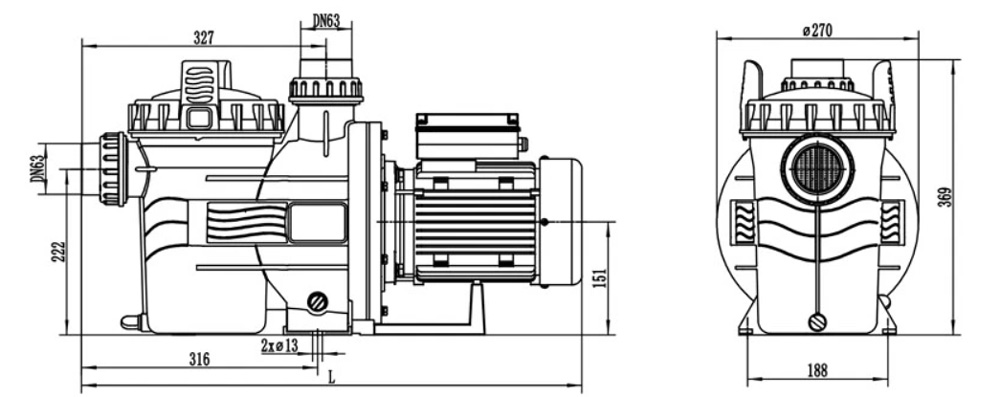

Dimension
