AstralPool Pool System 60m³ | Cantabric D600
Standard AstralPool Filtration System for a 60 m³ (60,000-Liter) Swimming Pool
If you're looking for a high-performance, professionally engineered swimming pool filtration system, this setup is an ideal solution for pools with a capacity of approximately 60 cubic meters (60,000 liters).
At WinwinPool, we carefully select premium AstralPool equipment to ensure that every component works together seamlessly. Instead of simply choosing larger equipment, we design the entire hydraulic system so that the pump, sand filter, and salt chlorinator operate in perfect balance, delivering maximum efficiency, crystal-clear water, and long-term reliability.

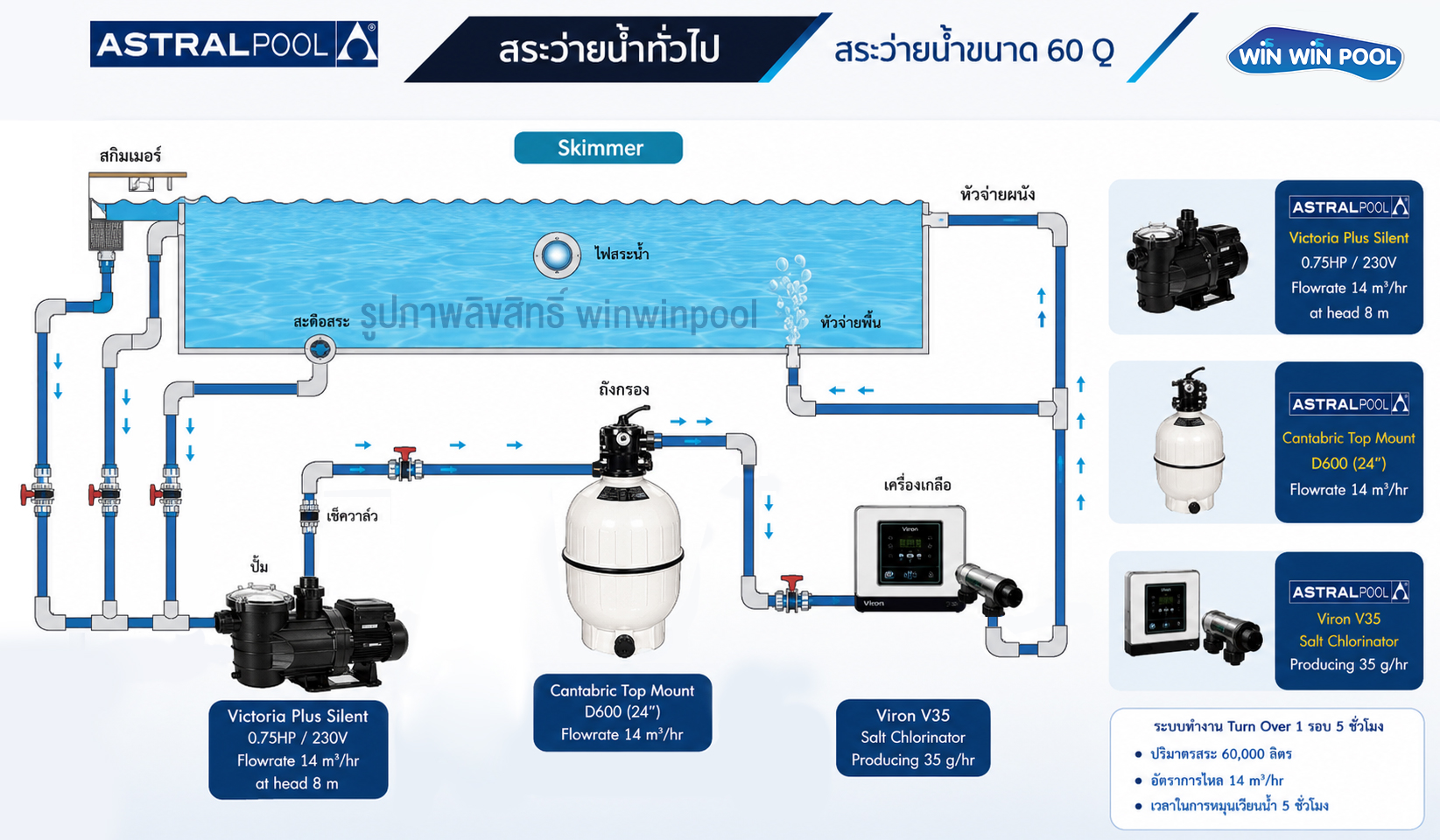

How the System Works
The circulation system draws water from three main suction points:
Skimmer – Removes leaves, insects, and floating debris from the water surface.
Main Drain – Draws water from the bottom of the pool for complete circulation.
Vacuum Point – Allows easy connection of a manual vacuum cleaner for pool maintenance.
All suction lines are combined and connected to the pump suction inlet, ensuring balanced hydraulic performance. The water is then pumped through the sand filter, where dirt and suspended particles are removed.
After filtration, the water passes through the AstralPool Viron V35 Salt Chlorinator, which automatically generates chlorine from dissolved salt to disinfect the water before returning it to the pool through the return inlets.
This hydraulic design provides:
Complete water circulation throughout the pool
Elimination of stagnant water zones
Excellent filtration efficiency
Stable chlorine production
Reduced chemical consumption
Easy maintenance and long service life
Main Equipment
AstralPool Victoria Plus Silent 0.75 HP
A premium, energy-efficient swimming pool pump.
Specifications
Power: 0.75 HP
Voltage: 220–230V
Flow Rate: 14 m³/hr at 8 m Head
Quiet operation
Energy-efficient motor
Durable and reliable construction
Suitable for pools between 50–70 m³
AstralPool Cantabric Top Mount D600 (24")
High-performance fiberglass sand filter.
Specifications
Diameter: 24 inches
Flow Rate: 14 m³/hr
Heavy-duty fiberglass tank
Corrosion-resistant construction
Long service life
Superior filtration performance
When paired with the Victoria Plus Silent pump, it provides an ideal hydraulic balance for optimum filtration efficiency.
AstralPool Viron V35 Salt Chlorinator
Automatic salt chlorination system.
Chlorine Production
35 g/hr
Benefits
Automatically generates chlorine from salt
Eliminates the need for frequent manual chlorine dosing
Crystal-clear, sanitized water
Reduced chlorine odor
More comfortable for the eyes and skin
Lower ongoing chemical costs
Water Turnover Performance
Pool Volume
60,000 Liters (60 m³)
System Flow Rate
14 m³/hr
Water Turnover Time
Approximately 5 Hours per Complete Cycle
A five-hour turnover rate is considered an excellent design standard for residential swimming pools, ensuring efficient filtration, proper water circulation, and consistently high water quality.
Key Advantages
✔ Professionally matched hydraulic system
✔ Balanced flow rate throughout the entire circulation system
✔ High-efficiency water filtration
✔ Energy-saving operation
✔ Quiet pump performance
✔ Reduced chemical usage
✔ Long equipment lifespan
✔ Premium AstralPool quality
✔ Ideal for residential pools, villas, resorts, and boutique hotels
Why Choose WinwinPool?
At WinwinPool, we do more than supply swimming pool equipment—we provide complete hydraulic system design based on sound engineering principles.
Our team carefully calculates:
Flow Rate
Turnover Time
Pump Selection
Sand Filter Capacity
Pipe Sizing
Salt Chlorinator Capacity
to ensure every component works together efficiently.
A properly engineered swimming pool system delivers cleaner water, lower electricity consumption, reduced maintenance costs, and significantly longer equipment life.
Need Professional Pool System Design?
Our engineering team is ready to help you select the right equipment for your swimming pool.
