S SERIES FILTERS REPLACEMENT PARTS

Emaux SAND FILTER

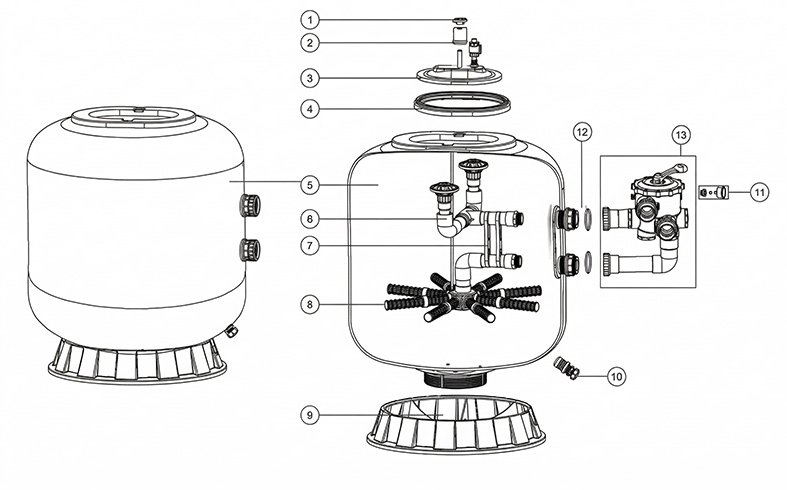

Parts of S SERIES Models: S1000/ S1200

KEY NO. CODES PART NO. DESCRIPTIONS PIECE (S) REQUIRED Price 2026
(In VAT)		 Website
1 20320510425 1111100 Star-Shaped Nut 1 957.00 575.00
2 20320510430 4100076786 Bow-Shaped Metal Bar 1 5,720.00 3,432.00
3 20320510435 1161006 Manhole 1 24,225.00 14,535.00
4 20320510440 111292548 Rubber Ring for Lid 1 6,066.00 3,640.00
5 20320510445 89011301 S1000 Filter Tank With Base 1 Contact sales
5 20320510450 89011302 S1200 Filter Tank With Base 1 Contact sales
6 20320510455 89011303 The Inner Tank System for 1000 1 10,481.00 6,289.00
6 20320510460 89011304 The Inner Tank System for S1200 1 11,817.00 7,091.00
7 20320510465 4110000990 2.0" Tank System Support 1 264.00 159.00
8 20320510310 E010307 Laterals (129mm & 185mm) for S1000 8 495.00 297.00
8 20320510315 E010308 Laterals (129mm & 233mm) for S1200 8 777.00 467.00
9 20320510320 1112038 32-40 inch Filter Base 1 5,538.00 3,323.00
9 20320510321 4104020763 32-40 inch Filter Base - Year2022 1 5,538.00 3,323.00
9 20320510325 1112039 Base for V1200 1 5,142.00 3,086.00
10 20320511190 89010107 Water Drain Set 1 792.00 476.00
11 20320511020 6011029 Maximum 40PSI Indication, Stainless Steel Casing 1 1,714.00 1,029.00
12 20320510420 2011127 O-Ring for Inlet & Outlet 2 264.00 159.00
13   88280813W 6 Way 2" Valve with Piping Kit, 2" union set x 3 and pressure gauge (White) 1 Contact sales
