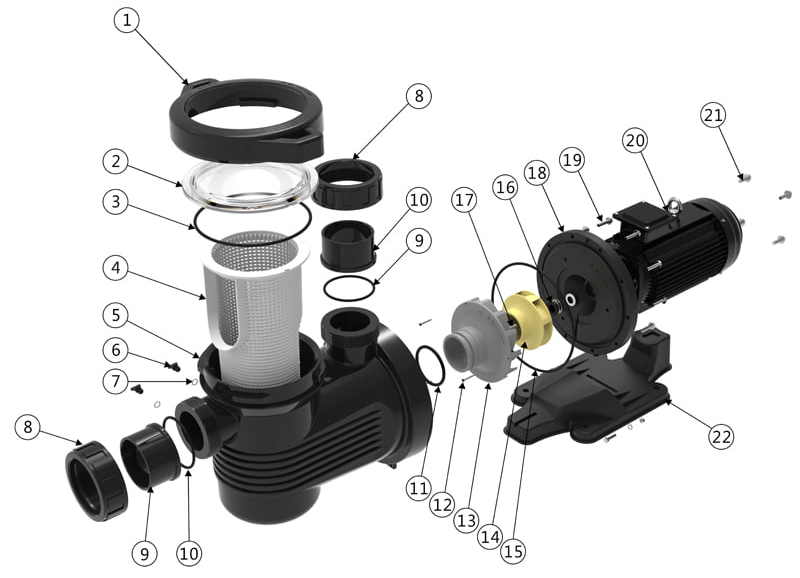

| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED | Price 2023 (03/03/2023) |
Website | สมาชิก | ||||||||||||||||||||||||||||||
| 1 | 20710512350 | 420408561 | Nut For Lid | 1 | 1,813.00 | 1,088.00 | 1,052.00 | ||||||||||||||||||||||||||||||
| 2 | 20710512355 | 420386559 | Transparent Lid | 1 | 1,978.00 | 1,187.00 | 1,148.00 | ||||||||||||||||||||||||||||||
| 3 | 20710512360 | 111010040 | O-Ring For Lid | 1 | 330.00 | 198.00 | 192.00 | ||||||||||||||||||||||||||||||
| 4 | 20710512365 | 420236559 | Basket | 1 | 1,648.00 | 989.00 | 956.00 | ||||||||||||||||||||||||||||||
| 5 | 20710512370 | 420058561 | Pump body | 1 | 8,569.00 | 5,142.00 | 4,971.00 | ||||||||||||||||||||||||||||||
| 6 | 20710512375 | 01111017 | Drain Plug | 2 | 297.00 | 179.00 | 173.00 | ||||||||||||||||||||||||||||||
| 7 | 20710512380 | 02020014 | O-Ring | 2 | 297.00 | 179.00 | 173.00 | ||||||||||||||||||||||||||||||
| 8 | 20710512385 | 420228563 | Nut for Connector | 2 | 645.00 | 387.00 | 375.00 | ||||||||||||||||||||||||||||||
| 9 | 20710512390 | 111002561 | O-Ring for Union | 2 | 645.00 | 387.00 | 375.00 | ||||||||||||||||||||||||||||||
| 10 | 20710512395 | 430301835 | 3" Union Adaptor | 2 | 990.00 | 594.00 | 575.00 | ||||||||||||||||||||||||||||||
| 20710512400 | 430301845 | GB90mm Union Adaptor | 2 | 990.00 | 594.00 | 575.00 | |||||||||||||||||||||||||||||||
| 11 | 20710512405 | 111010055 | O-Ring for Diffuser | 1 | 480.00 | 288.00 | 279.00 | ||||||||||||||||||||||||||||||
| 12 | 20710512410 | 112010165 | M4.2X45 Screw | 3 | 165.00 | 99.00 | 96.00 | ||||||||||||||||||||||||||||||
| 13 | 20710512415 | 420218561 | Diffuser | 1 | 825.00 | 495.00 | 479.00 | ||||||||||||||||||||||||||||||
| 14 | 20710512420 | 420369026 | Impeller For 4HP(380V 50HZ) | 1 | 2,473.00 | 1,484.00 | 1,435.00 | ||||||||||||||||||||||||||||||
| 20710512425 | 420369027 | Impeller For 5.5HP(380V 50HZ) | 1 | 2,803.00 | 1,682.00 | 1,626.00 | |||||||||||||||||||||||||||||||
| 20710512430 | 420368562 | Impeller For 7HP(380V 50HZ) | 1 | 3,133.00 | 1,880.00 | 1,818.00 | |||||||||||||||||||||||||||||||
| 15 | 20710512435 | 111010053 | O-Ring for Flange | 1 | 528.00 | 317.00 | 307.00 | ||||||||||||||||||||||||||||||
| 16 | 20710512440 | 113005935 | 3/4" Mechanical Seal | 1 | 2,968.00 | 1,781.00 | 1,722.00 | ||||||||||||||||||||||||||||||
| 17 | 20710512445 | 112010163 | Screw for Impeller | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||||||||||||||
| 18 | 20710512450 | 420208561 | Flange | 1 | 3,133.00 | 1,880.00 | 1,818.00 | ||||||||||||||||||||||||||||||
| 19 | 20710512455 | 112000069 | M8X35 Screw | 10 | 480.00 | 288.00 | 279.00 | ||||||||||||||||||||||||||||||
| 20 | 20710512460 | 42059099028 | Motor for UPH400 380V | 1 | ติดต่อฝายขาย | ||||||||||||||||||||||||||||||||
| 20710512465 | 42059099029 | Motor for UPH550 380V | 1 | ติดต่อฝายขาย | |||||||||||||||||||||||||||||||||
| 20710512470 | 42059099030 | Motor for UPH700 380V | 1 | ติดต่อฝายขาย | |||||||||||||||||||||||||||||||||
| 21 | 20710512475 | 112192716 | M10X30 Screw | 4 | 480.00 | 288.00 | 279.00 | ||||||||||||||||||||||||||||||
| 22 | 20710512480 | 420128561 | Base | 1 | 1,633.00 | 980.00 | 948.00 | ||||||||||||||||||||||||||||||
| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED | Price2024 (รวม VAT) |
Website | |
| 1 |  |
20710510460 | 01021008 | Nut for Lid | 1 | 1,270.00 | 762.00 |
| 2 |  |
20710510465 | 01041022 | Transparent Lid | 1 | 1,089.00 | 654.00 |
| 3 |  |
20710510470 | 02010248 | O-Ring for Lid | 1 | 462.00 | 278.00 |
| 4 |  |
20710510475 | 01111030 | Basket | 1 | 1,089.00 | 654.00 |
| 5 |  |
20710510480 | 89021305 | Pre-Filter Body | 1 | 5,439.00 | 3,264.00 |
| 6* |  |
20651610030 | 89280103 | 2.0" Union (Black/ White Colour) | 2 | 973.00 | 584.00 |
| 7 |  |
20650510180 | 89021307 | Drain Plug With O-Ring | 1 | 249.00 | 150.00 |
| 8 | 20710510485 | 02011115 | Square Gasket | 1 | 249.00 | 150.00 | |
| 9 | 20710510490 | 03011083 | M6 x 30 Screw for Pump Body | 4 | 249.00 | 150.00 | |
| 10 |  |
20710510495 | 89021308 | Pump body for SB,SR | 1 | 9,427.00 | 5,657.00 |
| 11 | 20710510500 | 89021309 | Screw for Impeller with O-Ring | 1 | 249.00 | 150.00 | |
| 12 | 20710510505 | 02011108 | O-Ring for Diffuser | 1 | 249.00 | 150.00 | |
| 13 |  |
20710510510 | 01111015 | Diffuser | 1 | 1,089.00 | 654.00 |
| 14 |  |
20710510515 | 01311001 | Impeller SB10 (110V/60HZ) and (220V/60HZ) | 1 | 1,813.00 | 1,088.00 |
| 14 | |
20710510520 | 01311002 | Impeller SB20 (110V/60HZ) and (220V/60HZ) | 1 | 1,813.00 | 1,088.00 |
| 14 | |
20710510525 | 01311003 | Impeller SB/ SR20 (220V/50HZ) and (380V/50HZ) | 1 | 1,813.00 | 1,088.00 |
| 14 | 20710510530 | 01311004 | Impeller SB/ SR10 (220V/50HZ) and (380V/50HZ)/ SB15 (110V/60HZ) and (220V/60HZ) | 1 | 1,813.00 | 1,088.00 | |
| 14 | |
20710510535 | 01311005 | Impeller SB/ SR15 (220V/50HZ) and (380V/50HZ)/ SB30 (110V/60HZ) and (220V/60HZ) | 1 | 1,813.00 | 1,088.00 |
| 14 | |
20710510540 | 01311006 | Impeller SB30 (220V/50HZ) and (380V/50HZ) | 1 | 1,813.00 | 1,088.00 |
| 15 |  |
20710510070 | 04015046 | 3/4" Mechanical seal | 1 | 1,813.00 | 1,088.00 |
| 15 | |
20710510071 | E020001 | 3/4Mechanical seal - Year2022 | 1 | 1,813.00 | 1,088.00 |
| 16 | 20710510545 | 02011093 | O-Ring for Flange | 1 | 462.00 | 278.00 | |
| 17 |  |
20710510550 | 01021013 | Pump Flange for SB/ SR | 1 | 3,265.00 | 1,959.00 |
| 18 | 20710510555 | 03011080 | M6×15 Hexagonal Bolt | 16 | 249.00 | 150.00 | |
| 19 |  |
20710510560 | 02011096 | Motor Slinger | 1 | 216.00 | 130.00 |
| 20 | 20710510565 | 89021301 | Motor SB/ SR10 (220V/50HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510570 | 89021302 | Motor SB/ SR15 (220V/50HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510575 | 89021303A | Motor SB/ SR20 (220V/50HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510580 | 89021304 | Motor SB/ SR30 (220V/50HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510585 | 89021401 | Motor SB/ SR10 (220V/60HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510590 | 89021402 | Motor SB/ SR15 (220V/60HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510595 | 89021403 | Motor SB/ SR20 (220V/60HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510600 | 89021404 | Motor SB/ SR30 (220V/60HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510605 | 89021601 | Motor SB/ SR10 (380V/50HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510610 | 89021602 | Motor SB/ SR15 (380V/50HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510615 | 89021603 | Motor SB/ SR20 (380V/50HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510620 | 89021604 | Motor SB/ SR30 (380V/50HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510625 | 89021501 | Motor SB/ SR10 (110V/60HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510630 | 89021502 | Motor SB/ SR15 (110V/60HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510635 | 89021503 | Motor SB/ SR20 (110V/60HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 20 | 20710510640 | 89021504 | Motor SB/ SR30 (110V/60HZ) | 1 | ติดต่อฝ่ายขาย | ||
| 21 | 20710510645 | 89021310 | M8*20 Bolt for motor with washer | 4 | 249.00 | 150.00 | |
| 22 |  |
20710510650 | 01021021 | Opening key | 1 | 462.00 | 278.00 |
| 23 |  |
20710510655 | 01111032 | Base with Nut & Washer for SB10/ SB15 | 1 | 1,270.00 | 762.00 |
| 23 | 20710510660 | 01111031 | Base with Nut & Washer for SB20/ SB30 | 1 | 1,270.00 | 762.00 | |
| 24 | 20710510665 | 89021312 | Cable Box for SB/ SR Pump 220V/50HZ; 220V/60HZ; 380V/50HZ. | 1 | 1,270.00 | 762.00 | |
| 25 | 20710510260 | 89021505 | Cable Box for SB/ SR Pump 110V/60HZ | 1 | 2,176.00 | 1,306.00 | |
| 26 | 20710510270 | 01031001 | Fan Cover for EPH SB/SR20 SB/SR30 | 1 | 1,270.00 | 762.00 | |
| 26 | 20710510670 | 01031002 | Fan Cover for SB/SR10,SB/SR15 Pump | 1 | 1,089.00 | 654.00 | |
| 27 | 20710510675 | 01031008 | Fan Cover for SB/SR20,SB/SR30 Pump | 1 | 1,270.00 | 762.00 | |
| 27 | 20710510680 | 01031009 | Fan Cover for SB/SR10,SB/SR15 Pump | 1 | 1,089.00 | 654.00 | |
| 28 |  |
20710510685 | 01031007 | Cooling fan for SC SB/SR10,SB/SR15 | 1 | 249.00 | 150.00 |
| 28 | 20710510275 | 01031006 | Cooling fan for EPH SB/SR20,SB/SR30 | 1 | 249.00 | 150.00 | |
| 29 | 20710510445 | 04016014 | Capacitor for SB/ SR10/ SB/ SR15 (220V/50HZ) (220V/60HZ) | 1 | 2,902.00 | 1,742.00 | |
| 29 |  |
20710510250 | 04016015 | Capacitor for SB/ SR20 (220V/50HZ) (220V/60HZ) | 1 | 3,265.00 | 1,959.00 |
| 29 | 20710510255 | 04016016 | Capacitor for SB/ SR30 (220V/50HZ) (220V/60HZ) | 1 | 3,626.00 | 2,176.00 | |
| 29 | 20710510690 | 04016022 | Capacitor for SB/ SR10/ SB15 (110V/60HZ) | 1 | 5,258.00 | 3,155.00 | |
| 29 | 20710510695 | 04016023 | Capacitor for SB/ SR20/ SB30 (110V/60HZ) | 1 | 5,621.00 | 3,373.00 | |
| 30 |  |
20710510700 | 04015042 | Overload Switch PE77-6A/250VAC for SB/ SR10 | 1 | 462.00 | 278.00 |
| 30 | 20710510425 | 04015015 | Overload Switch PE77-8A/250VAC for SB/ SR15 | 1 | 462.00 | 278.00 | |
| 30 | 20710510430 | 04015012 | Overload Switch PE77-10A/250VAC for SB/ SR20 | 1 | 462.00 | 278.00 | |
| 30 | 20710510435 | 04016037 | Overload Switch PE77-13A/250VAC for SB/ SR30 | 1 | 462.00 | 278.00 | |
| 31 | 20710510705 | 02021039 | Cover for Overload Switch | 1 | 249.00 | 150.00 | |
| 32 | 20710510710 | 04014018 | Insulation Fitting for Overload Switch | 1 | 249.00 | 150.00 | |
Note: 6* 89280103B is 2.0 Union in Black Colour
6* 89280103W is 2.0 Union in White Colour
