SPV SERIES PUMP REPLACEMENT PARTS

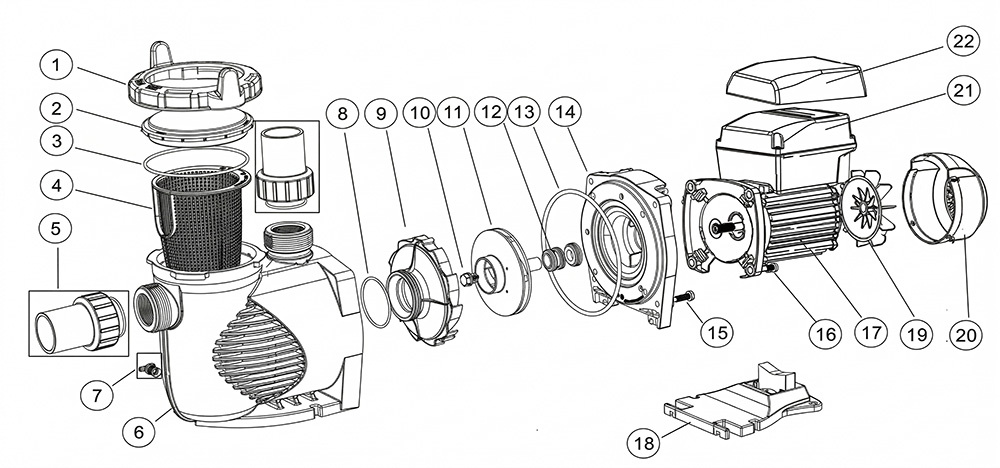

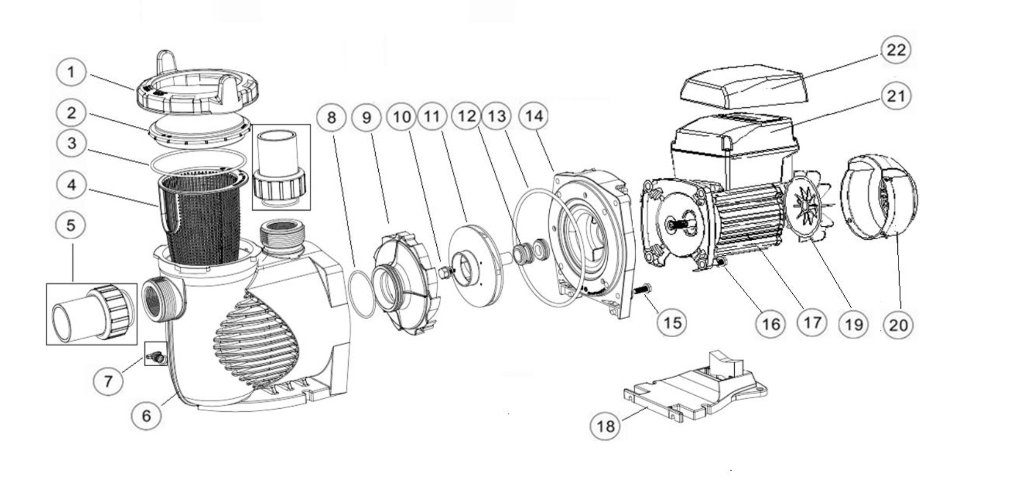

Parts of SPV Models: SPV150
| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED |
Price 2026 (in VAT) |
Website |
| 1 | 20710510280 | 1021143 | Nut For Lid | 1 | 874.00 | 525.00 |
| 2 | 20710510285 | 1041057 | Transparent Lid | 1 | 874.00 | 525.00 |
| 3 | 20710510290 | 2010253 | O-Ring For Lid | 1 | 264.00 | 159.00 |
| 4 | 20710510295 | 1112080 | Basket | 1 | 528.00 | 317.00 |
| 5 | 20710510300 | 89023801 | 1.5" Union | 2 | 1,039.00 | 624.00 |
| 6 | 20710510305 | 1021144 | Pump body | 1 | 9,691.00 | 5,815.00 |
| 7 | 20650510180 | 89021307 | Drain Plug With O-Ring | 2 | 264.00 | 159.00 |
| 8 | 20710510310 | 2010245 | O-Ring for Diffuser | 1 | 264.00 | 159.00 |
| 9 | 20710510315 | 1112081 | Diffuser | 1 | 874.00 | 525.00 |
| 10 | 20710510045 | 89020719 | Screw for Impeller with O-Ring | 1 | 528.00 | 317.00 |
| 11 | 20710510055 | 1311058 | Impeller For SPV150 & EPV150 | 1 | 1,897.00 | 1,139.00 |
| 12 | 20710510071 | E020001 | 3/4 Mechanical seal - Year 2022 | 1 | 1,912.00 | 1,148.00 |
| 13 | 20710510320 | 2010246 | O-Ring for Flange | 1 | 528.00 | 317.00 |
| 14 | 20710510325 | 1021145 | Flange | 1 | 2,489.00 | 1,494.00 |
| 15 | 20710510090 | 89020720 | M8 x 35 Screw with Washer for Motor | 4 | 264.00 | 159.00 |
| 16 | 20710510096 | 112192685 | M8 x 30 Screw - Year 2022 | 4 | 264.00 | 159.00 |
| 17 | 20710510330 | 4020140 | SPV150 TYC-71L Motor | 1 | Connect Sales | |
| 18 | 20710510335 | 1112082 | Base | 1 | 1,039.00 | 624.00 |
| 18 | 20710510150 | 2010211 | Arch Cushion for Base | 1 | 528.00 | 317.00 |
| 19 | 20710510340 | 1031027 | Fan | 1 | 264.00 | 159.00 |
| 20 | 20710510345 | 1321032 | Fan Cover | 1 | 528.00 | 317.00 |
| 21 | 20710510350 | 89023901 | Programmable Controller for SPV150 (without plug) | 1 | 29,414.00 | 17,649.00 |
| 21 | 20710512335 | E023803 | Programmable Controller for SPV150-RS485 (without plug) | 1 | 31,146.00 | 18,688.00 |
| 21 | 20710512340 | E023804 | Programmable Controller for SPV150-RS485-WiFi (without plug) | 1 | 34,604.00 | 20,763.00 |
| 22 | 20710510355 | 1041061 | Transparent Lid for Programmable Controller | 1 | 264.00 | 159.00 |
