AstralPool Pump
BX High Performance Pump
CODE: 43917, 43918, 43919, 43920, 43922, 43923, 43924, 58636
| No. | รหัสสินค้า (Code) | รายละเอียดสินค้า (Description) | แพ็ค (Pack) | ราคารวม VAT | ราคาเว็บไซต์ |
|---|---|---|---|---|---|
| 1 | 40066 |
BASKET | 1 | ฿1,851 | ฿1,056 |
| 2 | 78106 |
LID O-RING (TO 8/17) | 1 | ฿1,190 | ฿679 |
| 2 | 75076 |
LID O-RING (FROM 9/17) | 1 | ฿4,626 | ฿2,637 |
| 3 | N/A |
LID CLEAR | 1 | ตดิ ตอ่ ฝ่ายขาย | |
| 4 | 40069 |
BX/P600 PUMP LID ASSY-NO O-RING | 1 | ฿8,193 | ฿4,671 |

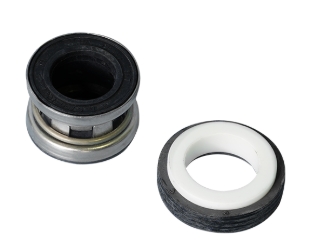

| 5 | 75509 |
MECHANICAL SEAL - BP02-USA-0191 | 1 | ฿1,851 | ฿1,056 |

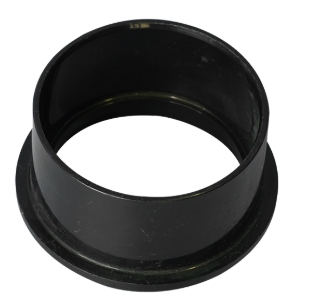

| 6 | 950924 |
UNION FITTING 65 TO 50MM | 1 | ฿926 | ฿528 |

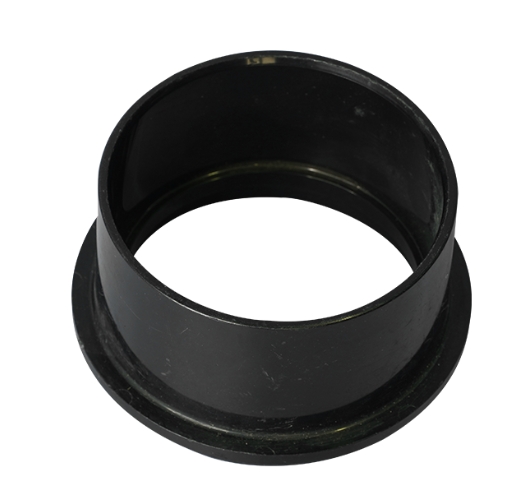

| 6 | 950925 |
UNION FITTING 65MM | 1 | ฿926 | ฿528 |

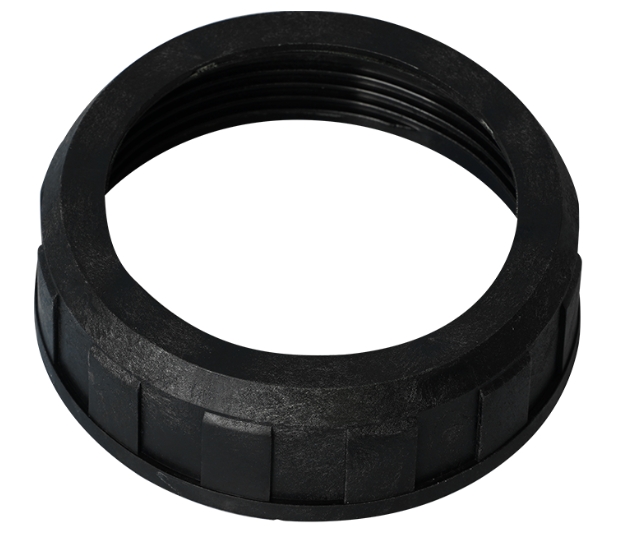

| 7 | 950926 |
LOCK NUT | 1 | ฿926 | ฿528 |
| 8 | 78104 |
ORING | 1 | ฿265 | ฿152 |
| 9 | 40071A |
DIFFUSER 1HP, 1.5HP | 1 | ฿2,908 | ฿1,658 |
| 9 | 40071B |
DIFFUSER 2,3,4 HP | 1 | ฿2,908 | ฿1,658 |
| 10 | 40060F |
IMPELLER1 .0HP/TX/BX/P280/P320/CTX360/FX290/E290 | 1 | ฿1,983 | ฿1,131 |
| 10 | 40060G |
IMPELLER 1.5 HP | 1 | ฿1,851 | ฿1,056 |
| 10 | 40060GE |
IMPELLER 1.5HP 3 PHASE | 1 | ฿4,097 | ฿2,336 |
| 10 | 40060H |
IMPELLER 2 HP | 1 | ฿1,851 | ฿1,056 |
| 10 | 40060HE |
IMPELLER - 2.0 HP TX / BX PUMP-3 PHASE | 1 | ฿3,701 | ฿2,110 |
| 10 | 40060N |
IMPELLER 3 HP | 1 | ฿3,701 | ฿2,110 |
| 10 | 40060NE |
IMPELLER 3HP 3 PHASE | 1 | ฿3,701 | ฿2,110 |
| 10 | 40060PE |
IMPELLER - 4.0 HP BX - 3 PHASE | 1 | ฿1,851 | ฿1,056 |
| 11 | 40165 |
DIFUSER RETAINING SCREW | 1 | ฿265 | ฿152 |
| 12 | 4009002 |
SEAL PLATE | 1 | ฿4,758 | ฿2,713 |
| 13 | 40150 |
SEAL PLATE TO BODY BOLTS | 1 | ฿397 | ฿227 |
| 14 | 40156 |
MOTOR BOLTS | 1 | ฿397 | ฿227 |
| 15 | 71313 |
MOTOR 1 HP | 1 | ฿26,297 | ฿14,990 |
| 15 | 71320 |
MOTOR 1 HP 3 PHASE | 1 | ฿35,019 | ฿19,961 |
| 15 | 71314 |
MOTOR 1.5 HP | 1 | ฿26,297 | ฿14,990 |
| 15 | 71320 |
MOTOR 1.5HP 3 PHASE | 1 | ฿35,019 | ฿19,961 |
| 15 | 71319 |
MOTOR 2 HP | 1 | ฿36,473 | ฿20,790 |
| 15 | 71335 |
MOTOR 2HP 3 PHASE | 1 | ฿46,648 | ฿26,590 |
| 15 | 71331 |
MOTOR 3 HP | 1 | ฿37,926 | ฿21,618 |
| 15 | 71335 |
MOTOR 3 HP 3PHASE | 1 | ฿46,648 | ฿26,590 |
| 15 | 71338 |
MOTOR 4HP 3 PHASE | 1 | ฿55,369 | ฿31,561 |
| 16 | 4007702 |
BX WETEND WITH BASKET | 1 | ฿12,554 | ฿7,156 |
| 17 | 70004 |
SEAL PLATE SEAL | 1 | ฿1,058 | ฿604 |
| 18 | 4005002 |
MOTOR FOOT | 1 | ฿1,058 | ฿604 |
| 19 | 40056 |
MOTOR FOOT RUBBER INSERT | 1 | ฿529 | ฿302 |
| Not Shown | 78304 |
COMPONENT BAG | 1 | ฿2,908 | ฿1,658 |
| Not Shown | 78187 |
BOLT - 1/4 X 20MM NYLON LH THREAD IMPELLER | 1 | ฿133 | ฿76 |
| Not Shown | 78711 |
O-RING FOR IMPELLER BOLT | 1 | ฿265 | ฿152 |
| Not Shown | INST243 |
INSTRUCTION MANUAL | 1 | ฿661 | ฿377 |
| Not Shown | LABEL260 |
WETEND | 1 | ฿529 | ฿302 |
* ราคาสินค้ารวมภาษีมูลค่าเพิ่ม 7% แล้ว ราคาอาจเปลี่ยนแปลงโดยไม่แจ้งล่วงหน้า กรุณาติดต่อฝ่ายขายเพื่อยืนยันราคาและสต๊อกสินค้าล่าสุด
