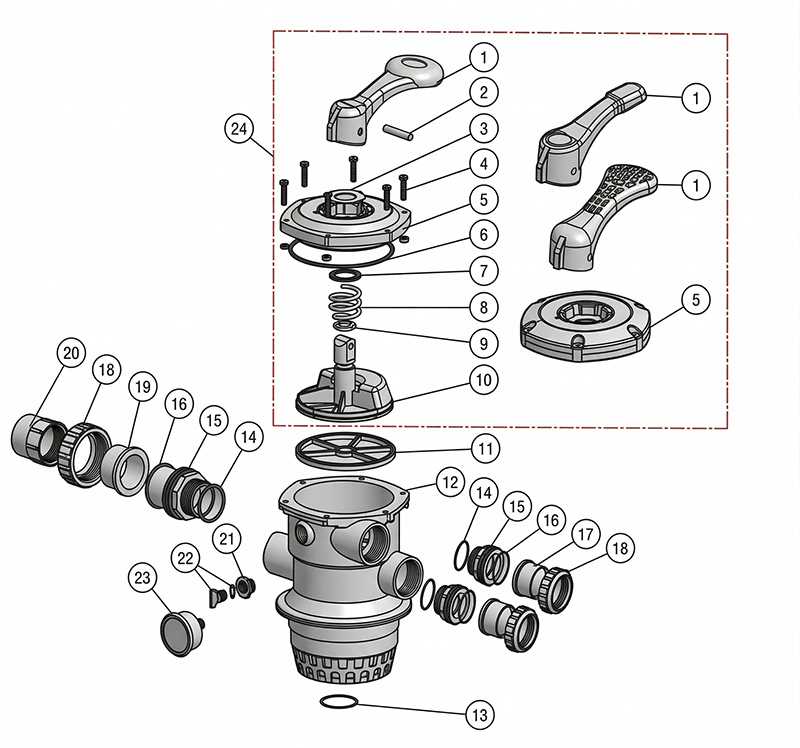

| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED | Price 2026 (รวม VAT) |
Website |
|---|---|---|---|---|---|---|
| 1 | 20650510025 | 1013003 | Handle (Big) | 1 | 495.00 | 297.00 |
| 1 | 20650510030 | 1013002 | Handle (Small) | 1 | 495.00 | 297.00 |
| 1 | 20650510035 | 1013001 | Handle (Meshy) | 1 | 495.00 | 297.00 |
| 2 | 20650510040 | 3018008 | Pin for Handle | 1 | 264.00 | 159.00 |
| 3 | 20650510045 | 1181001 | Washer for Handle | 1 | 150.00 | 90.00 |
| 4 | 20650510050 | 89281203 | M6 x 25 Screw with Nut for Camber Lid | 6 | 264.00 | 159.00 |
| 4 | 20650510055 | 89280107 | M6 x 30 Screw with Nut for Standard Lid | 6 | 264.00 | 159.00 |
| 5 | 20650510060 | 1013154 | 1.5" Top/Side Mount Valve Standard Lid (Black) | 1 | 1,221.00 | 733.00 |
| 5 | 20650510065 | 1050121 | 1.5" Top/Side Mount Valve Standard Lid (White) | 1 | 1,221.00 | 733.00 |
| 5 | 20650510070 | 1013005 | 1.5" Top/Side Mount Valve Camber Lid (Black) | 1 | 1,221.00 | 733.00 |
| 5 | 20650510075 | 1051015 | 1.5" Top/Side Mount Valve Camber Lid (White) | 1 | 1,221.00 | 733.00 |
| 6 | 20650510080 | 2011002 | O-Ring for 1.5" Valve Lid | 1 | 264.00 | 159.00 |
| 7 | 20650510085 | 1181002 | Washer for Spring | 1 | 150.00 | 90.00 |
| 8 | 20650510090 | 3014001 | Spring for 1.5" Top/Side Mount Valve | 1 | 2,489.00 | 1,494.00 |
| 9 | 20650510095 | 2011022 | O-Ring for Valve Rotor | 2 | 264.00 | 159.00 |
| 10 | 20650510100 | 1021001 | 1.5" Valve Rotor | 1 | 744.00 | 447.00 |
| 11 | 20650510105 | 2311002 | Spider Gasket | 1 | 874.00 | 525.00 |
| 12 | 20320511345 | E190147 | 1.5" Body with Diffuser (Black) | 1 | 4,007.00 | 2,405.00 |
| 12 | 20320511350 | E190146 | 1.5" Body with Diffuser (White) | 1 | 4,007.00 | 2,405.00 |
| 13 | 20650510125 | 2011001 | O-Ring for Diffuser | 1 | 150.00 | 90.00 |
| 14 | 20650510135 | 2020013 | O-Ring for 1.5"Connector | 3 | 264.00 | 159.00 |
| 15 | 20650510140 | 1013015 | 1.5" Connector (Black) | 3 | 495.00 | 297.00 |
| 15 | 20650510145 | 1051013 | 1.5" Connector (White) | 3 | 495.00 | 297.00 |
| 16 | 20320510195 | 2011003 | O-Ring for 1.5" Adaptor | 3 | 264.00 | 159.00 |
| 17 | 20650510150 | 1171153 | 1.5" Union (Imperial/Metric) | 2 | 495.00 | 297.00 |
| 18 | 20650510155 | 1013017 | 1.5" Union Nut (Black) | 3 | 495.00 | 297.00 |
| 18 | 20650510160 | 1051014 | 1.5" Union Nut (White) | 3 | 495.00 | 297.00 |
| 19 | 20320511355 | 1041002 | 1.5" Union with Sight Glass (Short) | 1 | 495.00 | 297.00 |
| 20 | 20320511360 | 1172026 | 1.5" Union with Sight Glass Holder | 1 | 495.00 | 297.00 |
| 21 | 20320511305 | E190109 | Connector for Pressure Gauge/Stopper | 1 | 150.00 | 90.00 |
| 22 | 20650510180 | 89021307 | Drain Plug With O-Ring | 1 | 264.00 | 159.00 |
| 23 | 20320511020 | 6011029 | Maximum 40PSI Indication, Stainless Steel Casing | 1 | 1,714.00 | 1,029.00 |
| 23 | 20320510005 | 6021013 | Plastic Pressure Gauge with O-ring | 1 | 744.00 | 447.00 |
| *24 | 20650511080 | 919305061 | MPV01/MPV03 upper part | 1 | 4,763.00 | 2,858.00 |
item 24 include item 1-10
