No.	Part No.	Description	Part No. Includes*	Price List 2023	Website
1**	RP071	Motor - Mono Phase 0,55kW	1	22,573.00	15,802.00
-	RP073	Motor - Tri Phase 0,55kW	1	24,005.00	16,804.00
-	RP101	Motor - Mono Phase 0,75kW	1	22,665.00	15,866.00
-	RP103	Motor - Tri Phase 0,75kW	1	27,403.00	19,183.00
-	RP151	Motor - Mono Phase 1,10kW	1	29,665.00	20,766.00
-	RP153	Motor - Tri Phase 1,10kW	1	34,303.00	24,013.00
-	RP201	Motor - Mono Phase 1,50kW	1	31,478.00	22,035.00
-	RP203	Motor - Tri Phase 1,50kW	1	35,935.00	25,155.00
-	RA-H1	Motor - Mono Phase 2,20kW	1	52,635.00	36,845.00
-	RA-H3E3	Motor - Tri Phase 2,20kW	1	53,020.00	37,114.00

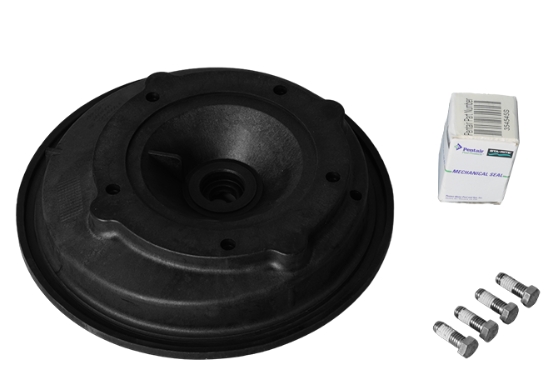

2	R39004910	Seal plate incl. Mechanical Seal	1	4,958.00	3,471.00

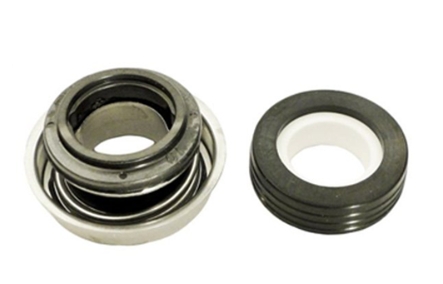

3	R354545SP	Mechanical Seal	1	1,665.00	1,166.00
4	R39005000	Impeller 0,55KW	1	1,828.00	1,280.00
-	R39005100	Impeller 0,75KW	1	1,613.00	1,130.00
-	R39005300	Impeller 1,10KW	1	2,320.00	1,624.00
-	R39005400	Impeller 1,50KW	1	1,880.00	1,316.00
-	R39010400	Impeller 2,20KW	1	2,170.00	1,519.00
6	R39009900	Impeller Lock Screw & O-Ring	1	635.00	445.00

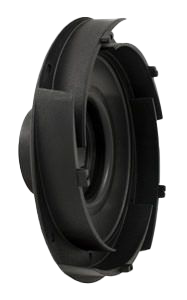

7	R39005500	Diffuser 0,55KW - 1,10KW	1	1,018.00	713.00
-	R39015500	Diffuser 1,50KW - 2,20KW	1	835.00	585.00

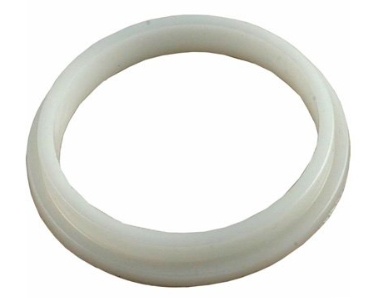

8	R39006600	Seal Diffuser	1	515.00	361.00

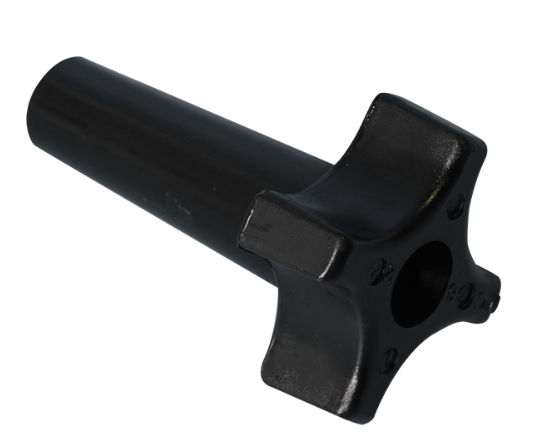

9	RWC3622	Knob for Clamp	1	478.00	335.00
10	RC1937A	Clamp Assembly	1	2,718.00	1,903.00

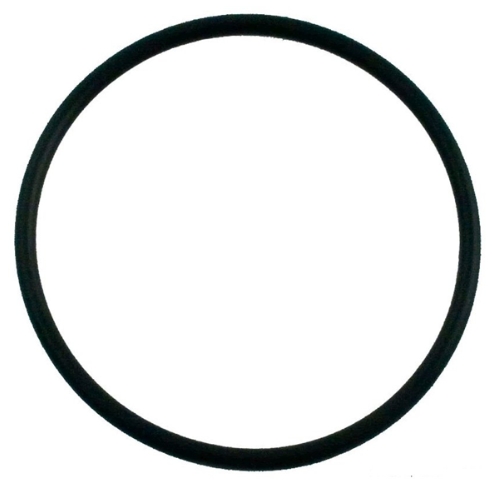

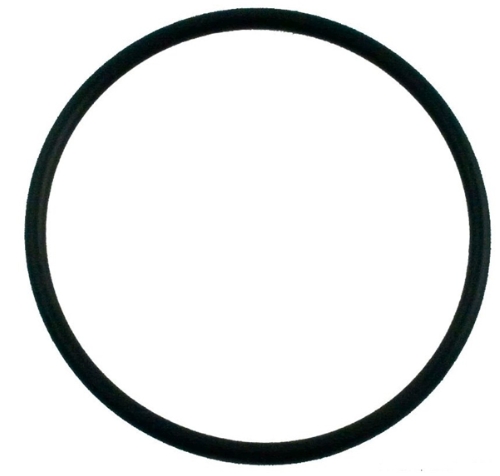

11	R39006000	O-Ring	1	480.00	336.00

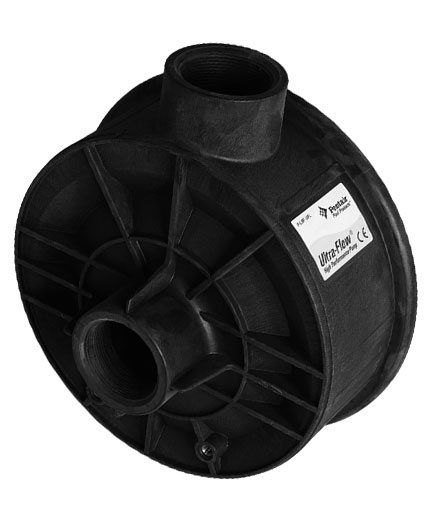

12	R39007002	Volute	1	3,740.00	2,618.00
13	R39501200	Square Gasket	1	425.00	298.00
14	R39017102	Strainer Pot	1	2,828.00	1,980.00
15	R39303500	Basket	1	1,048.00	734.00
16	R39300600	O-Ring	1	438.00	307.00
17	R39301799	Lid	1	1,290.00	903.00
18	R39105000	Locking Ring	1	1,580.00	1,106.00

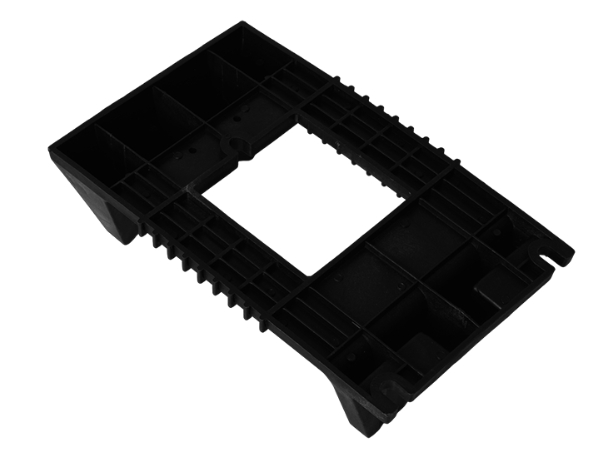

19	R39005800	Pump Base	1	1,268.00	888.00
-	R390058MA2	Pump Base 2,20KW Tri-Phase	1	4,010.00	2,807.00
20	R98219800	Pump Base Bolts & Washers	2	1,525.00	1,068.00
21	R070979	Bolts - strainer pot to volute	4	1,588.00	1,112.00

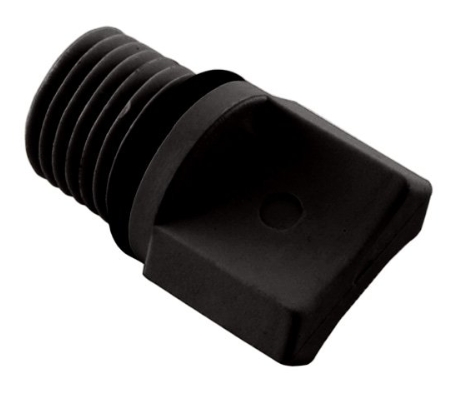

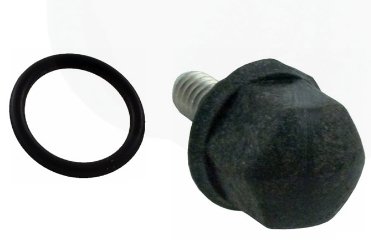

22	R98207700	Drain Plug & O-ring	2	280.00	196.00
23	R354290	Bolt Set	4	1,673.00	1,172.00
-	P-UFL-OSET	Seal set (Partn° 3, 5, 8, 11, 13, 16)	-	2,815.00	1,971.00
-	R170498	Union kit 2"BSP to 50/63mm slip fit	2	2,605.00	1,824.00

* PART NUMBER INCLUDES REQUIRED QUANTITY PER PRODUCT

** SEE MOTOR SHEET FOR MOTOR SPARE PARTS

Spare Part ULTRAFLOW ® PLUS

Spare Part ULTRAFLOW^® PLUS
