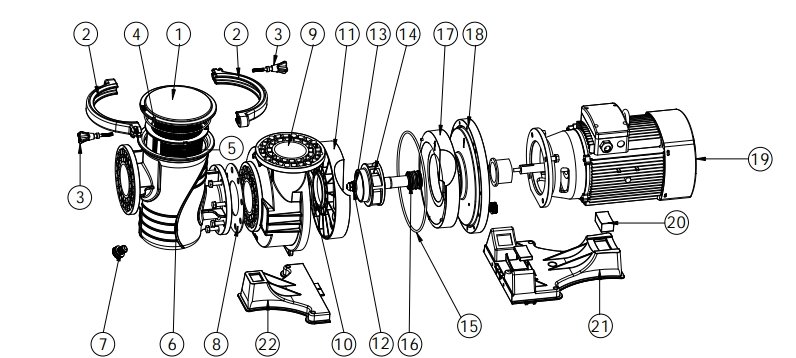

| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE(S) REQUIRED |
Price 2026 (Inc. VAT) |
Website |
|---|---|---|---|---|---|---|
| 1 | 20710511780 | 420386559 | Transparen Lid(APS5.5HP-7.5HP) | 1 | 2,605.00 | 1,563.00 |
| 1 | 20710511785 | 420386556 | Transparen Lid(APS10HP-15HP) | 1 | 6,066.00 | 3,640.00 |
| 2 | 20710511790 | 420556559 | Neck Clip(APS5.5-APS7.5HP) | 2 | 1,567.00 | 941.00 |
| 2 | 20710511795 | 420556556 | Neck Clip(APS10HP-15HP) | 2 | 2,605.00 | 1,563.00 |
| 3 | 20710511800 | 420566559 | Lid Fastenter(APS5.5HP-7.5HP) | 2 | 528.00 | 317.00 |
| 3 | 20710511805 | 420566556 | Lid Fastenter(APS10HP-15HP) | 2 | 528.00 | 317.00 |
| 4 | 20710511810 | 111010040 | Transparen Lid O-Ring(APS5.5HP-7.5HP) | 1 | 528.00 | 317.00 |
| 4 | 20710511815 | 111010037 | Transparen Lid O-Ring(APS10HP-15HP) | 1 | 1,039.00 | 624.00 |
| 5 | 20710511820 | 420236559 | Basket(APS5.5HP-7.5HP) | 1 | 2,077.00 | 1,247.00 |
| 5 | 20710511825 | 420236556 | Basket(APS10HP-15HP) | 1 | 6,757.00 | 4,055.00 |
| 6 | 20710511830 | 420246559 | Pre-Filter Body(APS5.5HP-7.5HP) | 1 | 13,678.00 | 8,207.00 |
| 6 | 20710511835 | 420246556 | Pre-Filter Body(APS10HP-15HP) | 1 | 62,289.00 | 37,374.00 |
| 7 | 20710511840 | 4100110754 | Drain Plug | 2 | 348.00 | 209.00 |
| 7 | 20710511845 | 111002530 | Ding-Qing O-ring | 2 | 348.00 | 209.00 |
| 8 | 20710511850 | 111322402 | O-ring(APS5.5HP-7.5HP) | 1 | 1,039.00 | 624.00 |
| 8 | 20710511855 | 111042408 | O-ring(APS10HP-15HP) | 1 | 1,221.00 | 733.00 |
| 9 | 20710511860 | 420336559 | Pump Body(APS5.5HP-7.5HP) | 1 | 9,179.00 | 5,508.00 |
| 9 | 20710511865 | 420336556 | Pump Body(APS10HP-15HP) | 1 | 22,328.00 | 13,397.00 |
| 10 | 20710511870 | 111010041 | O-ring(APS5.5HP-7.5HP) | 1 | 528.00 | 317.00 |
| 10 | 20710511875 | 111010038 | O-ring(APS10HP-15HP) | 1 | 528.00 | 317.00 |
| 11 | 20710511880 | 420576571 | Volute foreside(APS5.5HP-7.5HP) | 1 | 2,770.00 | 1,662.00 |
| 11 | 20710511885 | 420576569 | Volute foreside(APS10HP-15HP) | 1 | 6,757.00 | 4,055.00 |
| 12 | 20710511890 | 420586559 | Impeller Nut(APS5.5HP-7.5HP) | 1 | 528.00 | 317.00 |
| 12 | 20710511895 | 204146175 | Impeller Nut(APS10HP-15HP) | 1 | 528.00 | 317.00 |
| 13 | 20710511900 | 111042406 | O-ring(APS5.5HP-7.5HP) | 1 | 348.00 | 209.00 |
| 13 | 20710511905 | 111030009 | O-ring(APS10HP-15HP) | 1 | 528.00 | 317.00 |
| 14 | 20710511910 | 420366716 | Impeller APS5.5HP | 1 | 7,615.00 | 4,569.00 |
| 14 | 20710511915 | 420366560 | Impeller APS7.5HP | 1 | 7,615.00 | 4,569.00 |
| 14 | 20710511920 | E024002 | Impeller APS10HP | 1 | 7,615.00 | 4,569.00 |
| 14 | 20710511925 | E024001 | Impeller APS15HP | 1 | 8,488.00 | 5,093.00 |
| 15 | 20710511930 | 111010042 | O-ring for flange(APS5.5HP-7.5HP) | 1 | 1,039.00 | 624.00 |
| 15 | 20710511935 | 111010039 | O-ring for flange(APS10HP-15HP) | 1 | 1,039.00 | 624.00 |
| 16 | 20710511940 | 113006715 | Mechanical Seal(APS5.5HP-7.5HP) | 1 | 12,114.00 | 7,269.00 |
| 16 | 20710511945 | 113006710 | Mechanical Seal(APS10HP-15HP) | 1 | 15,574.00 | 9,345.00 |
| 17 | 20710511950 | 420576572 | Volute hindside(APS5.5HP-7.5HP) | 1 | 2,770.00 | 1,662.00 |
| 17 | 20710511955 | 420576570 | Volute hindside(APS10HP-15HP) | 1 | 7,104.00 | 4,263.00 |
| 18 | 20710511960 | 420206559 | Flange(APS5.5HP-7.5HP) | 1 | 10,217.00 | 6,131.00 |
| 18 | 20710511965 | 420206556 | Flange(APS5.5HP-7.5HP) | 1 | 24,060.00 | 14,436.00 |
| 19 | 20710511970 | 104036713 | Motor(APS5.5HP) | 1 | ติดต่อฝ่ายขาย | |
| 19 | 20710511975 | 104036714 | Motor(APS7.5HP) | 1 | ติดต่อฝ่ายขาย | |
| 19 | 20710511980 | 104036711 | Motor(APS10HP) | 1 | ติดต่อฝ่ายขาย | |
| 19 | 20710511985 | 104036712 | Motor(APS15HP) | 1 | ติดต่อฝ่ายขาย | |
| 20 | 20710511990 | 111000028 | Arch Cushion (APS5.5HP-7.5HP) | 1 | 1,039.00 | 624.00 |
| 20 | 20710511995 | 111000027 | Arch Cushion APS(15HP) | 1 | 4,847.00 | 2,909.00 |
| 20 | 20710512000 | 111000026 | Arch Cushion APS(10HP) | 1 | 2,770.00 | 1,662.00 |
| 21 | 20710512005 | 420126568 | Rear of Base(APS5.5HP-7.5HP) | 1 | 2,770.00 | 1,662.00 |
| 21 | 20710512010 | 420126564 | Rear of Base(APS10HP-15HP) | 1 | 8,305.00 | 4,983.00 |
| 22 | 20710512015 | 420126567 | Front part of Base(APS5.5HP-7.5HP) | 1 | 1,567.00 | 941.00 |
| 22 | 20710512020 | 420126563 | Front part of Base(APS10HP-15HP) | 1 | 6,066.00 | 3,640.00 |
