LASWIM Easy Swimming Pool Set for 20 m³ Pools | Complete Pool Equipment Package with 1-Year Warranty
SKU : CPS-20Q-SC-GB450-SR125 -CPN
1 Sold
฿27,999
Quantity
Short Description
Looking for a complete swimming pool equipment package for a 20 m³ pool? LASWIM Easy Swimming Pool Set includes a pool pump, sand filter, salt chlorinator, control panel, valves, and essential accessories. Easy installation, energy-efficient operation, crystal-clear water, and a 1-year warranty.
LASWIM Easy Swimming Pool Set for 20 m³ Pools | Complete Pool Equipment Set, 1-Year Warranty
What is the LASWIM Easy Swimming Pool Set?
The LASWIM Easy Swimming Pool Set is an All-in-One Pool Equipment Set designed for those who want a pool system that is easy to use, cost-effective, and quick to install. It is suitable for 20 cubic meter (m³) swimming pools and comes with a 1-year quality warranty.
This set comprehensively gathers all the essential equipment needed to care for and maintain your pool's water quality. It includes a filtration system, water pump, salt chlorinator, control panel, and full accessories, allowing you to start using your pool immediately without wasting time buying parts separately.
The LASWIM brand has been well-known in the pool equipment industry for a long time. With reliable manufacturing standards and durable designs, it utilizes high-quality materials ideally suited for tropical climates.

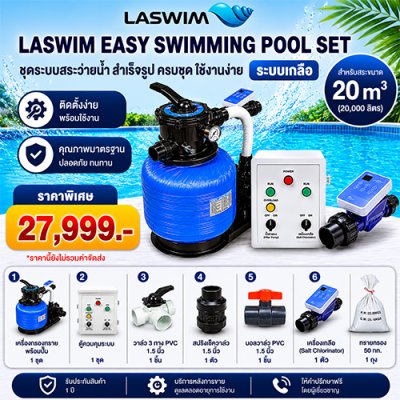

Equipment List in the WL-GB450 Set
| # | Equipment | Model / Size | Quantity |
|---|---|---|---|
| 1 | Swimming Pool Pump | 0.75HP / 220V | Flow rate 8 m³/h | 1 Set |
| 2 | Sand Filter | Sand Filter 18" | Flow rate 8 m³/h | 1 Set |
| 3 | Salt Chlorinator | Laswim Salt Chlorinator SR125 | 12.5 g/h | 1 Unit |
| 4 | Fine Filter Sand | Size 0.5-1.0 mm | 50 kg per bag | Included |
| 5 | 3-Way Ball Valve (Laswim) | 1.5" | 1 Pcs |
| 6 | Compact Ball Valve (ERA) | 1.5" | 1 Pcs |
| 7 | Spring Check Valve UPVC (ACE) | 1.5" | 1 Pcs |
| 8 | Control Panel | Controls 1 Pump + 1 Salt Chlorinator | 1 Set |
Technical Specifications
| Item | Details |
|---|---|
| Brand | LASWIM |
| Model | Easy Swimming Pool Set (WL-GB450) |
| Suitable Pool Size | 20 m³ (Cubic Meters) |
| Example Pool Dimensions | 5×4×1 m or 6.7×3×1 m |
| Pump Power | 0.75 HP |
| Pump Flow Rate | 8 m³/h |
| Filter Size | 18 inches (Sand Filter) |
| Filtration Rate | 8 m³/h |
| Salt Chlorinator | Laswim SR125 (Chlorine output 12.5 g/h) |
| Filtration System | Sand Filter |
| Voltage | 220V / 50Hz |
| Filter Material | Pool-grade UV-resistant ABS |
| Warranty | 1 Full Year |
| Country of Origin | China (LASWIM Brand) |
Key Benefits
Who is this for?
How big is a 20 m³ pool?
A 20 cubic meter pool means a total water volume of 20,000 liters. Common dimensions include:
5 × 4 × 1 m
(Deep 1.2/Shallow 0.8 m)
Tip: If your pool is around 20 m³ (18-25 m³), this set still works perfectly but you may need to adjust the filtration cycle. Consult our team for free every day!
Comparison: 10 m³ Set vs 20 m³ Set
| Item | 10 m³ Set (WL-GB400) | 20 m³ Set (WL-GB450) |
|---|---|---|
| Suitable Pool Size | 10 m³ | 20 m³ |
| Pump Power | 0.5 HP | 0.75 HP |
| Flow Rate | 6.5 m³/h | 8 m³/h |
| Filter Size | 16 inches | 18 inches |
| Salt Chlorinator | Maximus MS050 (5 g/h) | Laswim SR125 (12.5 g/h) |
| Filter Sand | 35 kg / bag | 50 kg / bag |
| Warranty | 1 Year | 1 Year |
| Suitable for | Small pool / Private home | Medium pool / Villa / Resort |
Basic Installation Steps
Choose a well-ventilated area near the pool to place the pump and filter, away from standing water, allowing easy routing for electrical wiring and plumbing.
Connect the suction pipe from the pool to the pump, then from the pump to the filter, and return clean water to the pool using the pipes and fittings provided in the set.
Fill the tank to about 60-70% with the provided 0.5-1.0 mm fine filter sand (50 kg/bag). Do not use construction sand.
Install the Electrode Cell on the outlet pipe after the filter. Wire it to the Control Box, and set the output and water salt level (3,000-5,000 ppm).
Wire to a standard 220V power source. Turn on the pump and check for any water leaks. Flush the system using Backwash mode before use.
Measure the pH to maintain 7.2-7.8. Check the salt level, turn on the automatic chlorinator, and the pool is ready to use!
Maintenance Guidelines
- Check water level
- Check pump operation
- Skim leaves/debris
- Inspect salt chlorinator
- Measure pH (7.2-7.8)
- Check chlorine levels
- Check salt levels
- Backwash filter
- Brush pool walls
- Replace filter sand
- Inspect pump seals
- Clean Electrode Cell
- Major pool cleaning
- Shock Treatment
Frequently Asked Questions (FAQ)
Related and Recommended Products
pH Up / pH Down
Brushes / Skimmers / Pool Vacuums
Underwater LED Lights
Pool Grade Salt
Test Kit pH / Chlorine
Filter Sand 0.5-1.0 mm
Ready for Crystal Clear Pool Water Every Day?
Order the LASWIM Easy Swimming Pool Set 20 m³ today! Includes a full 1-year warranty and nationwide delivery.
Our expert team is ready to provide free advice at any time.
