SEKO KOMBA Series : SOLENOID PUMP DMS DMS201NAHP*0001
- Flowrate range: 1L/H
- Back Pressure: 7 bar
- Pump Head: PVDF
- Diaphragm: PTFE
- Ball valves: Ceramic
- Valve seals: PTFE
- O-ring: FKM-B [0], EPDM [1]
- Power Supply: 240 VAC 50Hz
- Mounting: Foot
- Pool Size
Indoor: 10 - 350m³
Outdoor: 10 - 300 m³ (Update 04/03/2026)

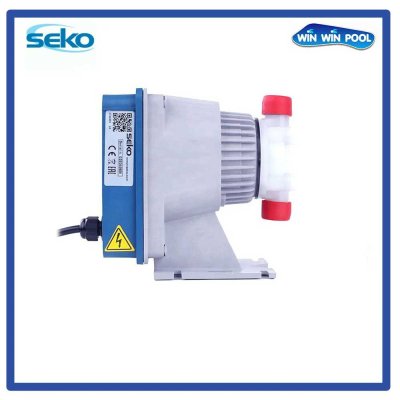

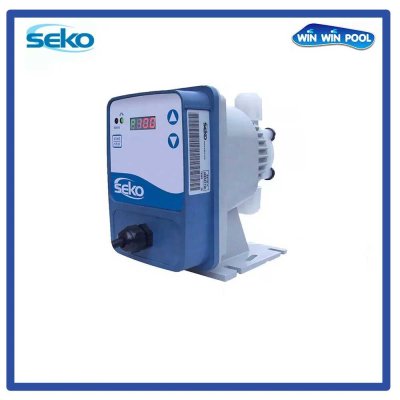

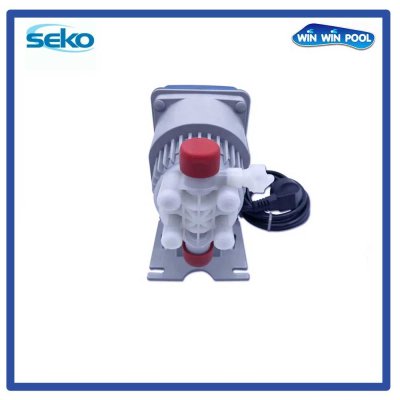

SEKO solenoid dosing pump Komba series DMS metering pump
Model: DMS201NAHP0001
Flowrate : 1L/h
Pressure : 7 Bar
Stroke Capacity : 0.31- 0.93 CC /stroke
Connector Diameter (In/Out) : (4/6mm)
Max Frequency : 160 stroke /min
Power supply : 100-240V. 50/60HZ
Weight : 2.5kgs
Dimeter (LxWxH) :280mmx205x180 mm
• Liquid contacted materials
• Pump head: PVDF
• Import and export: PVDF
• Valve balls: ceramic
• Seals: FPM/EPDM
• Diaphragm: PTFE
• Weight: 2.5 kg
• Voltage: 240 50Hz
• Power: 14W
• Fuse: 2A, 250V, T
Protection level: IP65

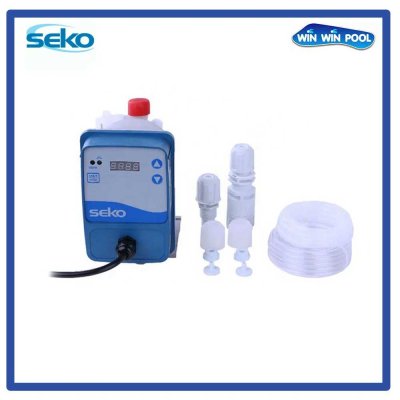

| • Pump |  |
| • Injection Valve • Foot Valve • Base Mount • Accessories |  |
| • NUT |  |
| • PE TUBE |  |
| • PVC Tube |  |
| • Manaual |  |
