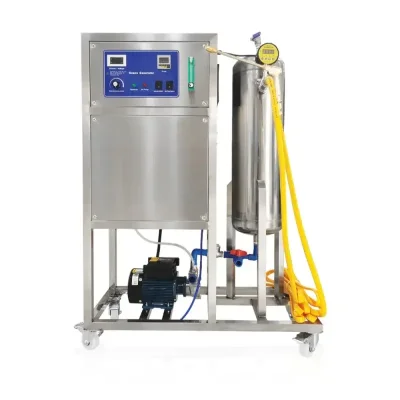

QL-OWS 20 G Ozone Water System with mixing tank
SKU : QL-OWS-20G-T
Ozonated water output flow rate: 0.4-3.5M3/Hr
Conxentration:1-5 ppm
Outlet pressure: 2-3kg/cm^2
Voltage: 220V/50Hz
Power: 1100W,1500W,1800W
Temperature: 5-40℃
Inlet diameter: 3/4”,1”
Outlet diameter: 1/2'',3/4''
Dimension: 50*40*120 cm,50*40*138 cm,50*40*138 cm
Net weight: 50 kg,60 kg,70 kg.
Purify pool water: 10 M3/Hr,20 M3/Hr,30 M3/Hr
Ozone ouput adjustable: 10-100%
Gas feeding: oxygen feeding
Cooling way: Air cooling
External case: Stainless steel 304
฿227,012
฿0
฿227,012
฿129,397
Member
฿0
Member
฿0
There is an installment plan with a 0% interest rate (you can check the monthly installment calculation on the payment page).
Promotion
Minimum spent ฿5,000 discount 5%
Minimum spent ฿20,000 discount 6%
Minimum spent ฿40,000 discount 7%
Minimum spent ฿50,000 discount 8%
Quantity
Request a Quote
Wishlist
Brands :WINWINPOOL
Product description
Download
VDO

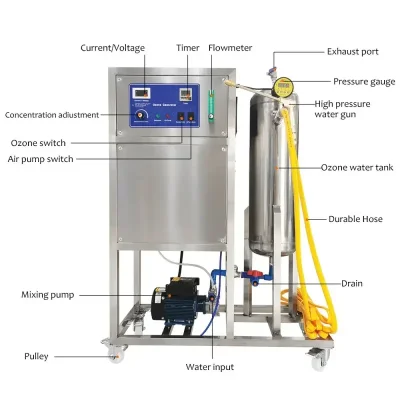

QL-OWS-10G/20G/30G High Concentration Spray Ozone Water System With Mixing Tank
Features:
- Backwater protection device, built-in self-priming gas-liquid mixing pump.
- Adjustable ozone output and water flow.
- The whole machine is movable and easy to operate, only needs to be connected to the water inlet.
- Adopts stainless steel casing, beautiful appearance with strong corrosion resistance and oxidation resistance.
- Safe and clean, no residue, no secondary pollution, instead of chemical disinfectants.
- The high concentration of ozone water can improve the environmental sanitation, reduce the breeding of bacteria, and improve the economic benefits of aquaculture.
- The high concentration of ozone helps to improve the water quality, reduce the breeding of bacteria, and improve the economic benefits of aquaculture.
- Durable robust design, applicable for aquarium and recirculating aquaculture.High ozone water production;
Model | QL-OWS-10G | QL-OWS-20G | QL-OWS-30G | ||
Output | 10G | 20G | 30G | ||
Rated power | 800W | 1200W | 1300W | ||
Ozone concentration | 1-3ppm | 1-4ppm | 1-5ppm | ||
Treatment of water | 0.4-2.8m³/h | 1-3.5m³/h | 1-3.5m³/h | ||
Equipment size | 90*40*110cm | 90*40*131 cm | 90*40*140 cm | ||
Packing size | 101*51*120cm(wooden) | 101*51*137cm(wooden) | 101*61*160(wooden) | ||
N/G | 70/84 kg | 82/104 kg | 96/118 kg | ||
Power supply/voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | ||
Applicable air | oxygen source | oxygen source | oxygen source | ||
