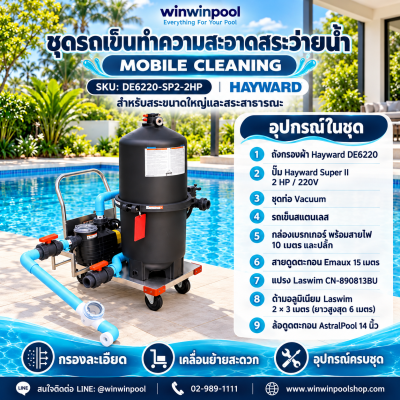

Hayward DE6220 + Super II 2 HP Mobile Pool Vacuum Cart
SKU : DE6220-SP2-2HP
0 Sold
Short Description
Mobile pool cleaning cart featuring a Hayward DE6220 D.E. filter and Hayward Super II 2 HP / 220V pump, mounted on a stainless steel cart with a vacuum pipe set and breaker box. Comes with a complete set of cleaning tools: Emaux CE173 suction hose (15 m), Laswim CN-890813BU brush, Laswim aluminium telescopic pole and AstralPool 14-inch vacuum head. Ideal for maintaining large pools and public pools. (Update 6/10/2026)
Mobile Cleaning System | SKU: DE6220-SP2-2HP
Mobile Pool Vacuum Cart
Hayward DE6220 + Super II 2 HP

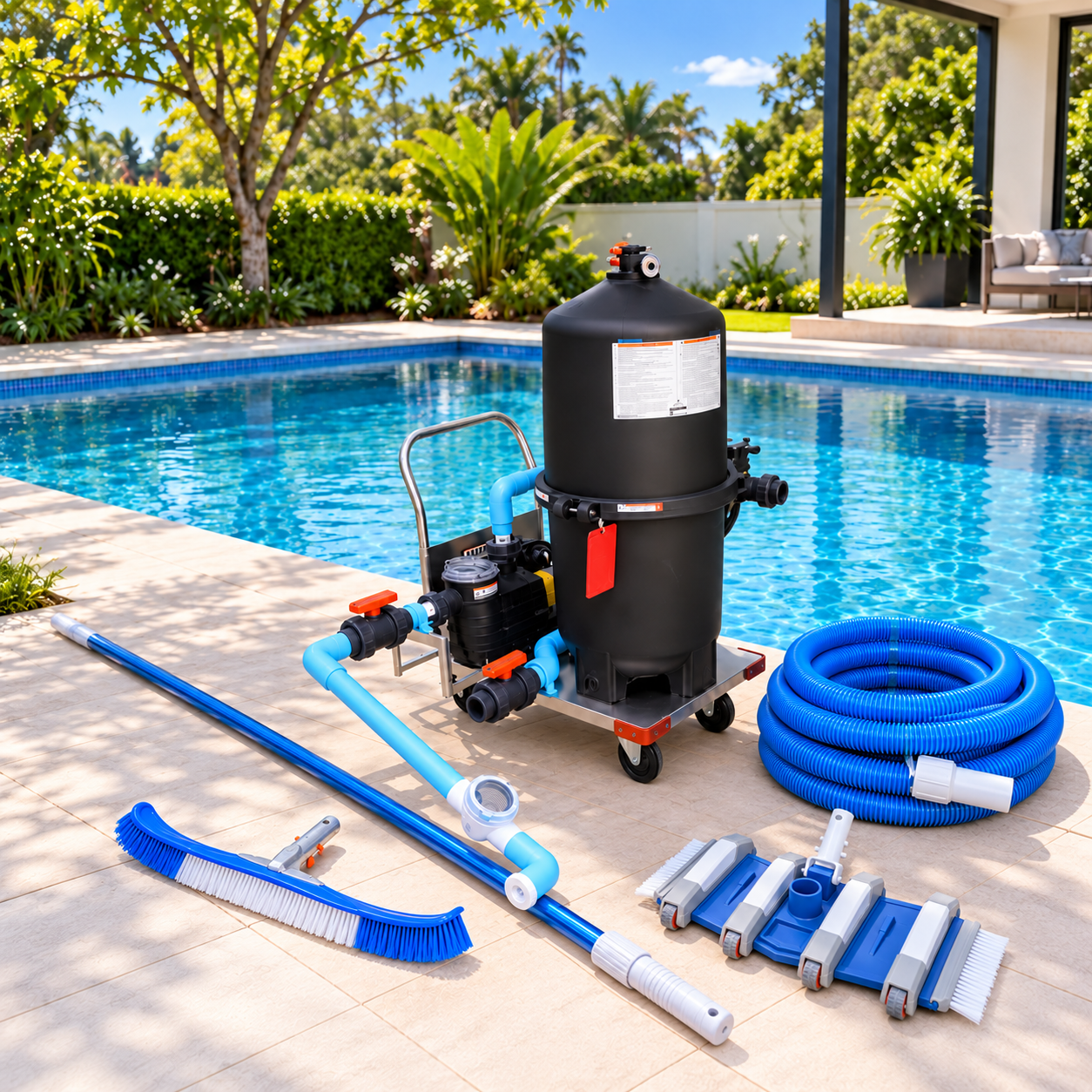

A Hayward pump and D.E. filter mounted together on one stainless steel cart, complete with suction hose, brush, telescopic pole and vacuum head. Wheel it to any corner of the pool and start cleaning. Built for large pools and public pools.
What's on the cart
A portable filtration system that goes wherever the dirt is
The Mobile Cleaning set puts the pump and filter on a single cart. Roll it to the spot you need to vacuum and get straight to work, with everything you need to vacuum and brush the pool surfaces included in the set.
The Hayward Super II 2 HP pump draws water and debris through the Hayward DE6220 D.E. filter before returning filtered water to the pool. It traps dirt and fine sediment, and works with D.E. filter powder as specified in the manufacturer's manual.
How water flows through the system
Water and debris pass through each component in this order before returning to the pool cleaner than before.
Vacuum head
Moves across the pool floor and picks up settled debris
15 m suction hose
Carries water and debris up to the cart
Super II pump
Creates suction through the vacuum pipe set
DE6220 filter
D.E. powder traps fine sediment
Back to the pool
Filtered water flows back into the pool
What's included
9 items, grouped into the cart-mounted filtration system and the pool cleaning tools.
| No. | Item | Qty |
|---|---|---|
| Filtration system and cart | ||
| 1 | Hayward DE6220 D.E. filter | 1 set |
| 2 | Hayward Super II pump, 2 HP / 220V | 1 unit |
| 3 | Vacuum pipe set for connecting the suction hose | 1 set |
| 4 | Stainless steel cart for mounting the pump and filter | 1 cart |
| 5 | Breaker box with 10 m power cable and plug | 1 set |
| Pool cleaning tools | ||
| 6 | Emaux CE173 vacuum hose, 1.5 inch, 15 m long | 1 hose |
| 7 | Laswim CN-890813BU pool brush | 1 pc |
| 8 | Laswim aluminium telescopic pole, 2 × 3 m, extends up to 6 m | 1 pc |
| 9 | AstralPool vacuum head, 14 inch | 1 pc |
D.E. filter powder is not included in this set. Please check with our team before ordering so the powder is ready to use from day one.
Key features
Designed for pool teams who clean every day across large areas.
Pump and filter in one set
Equipment is neatly organised on the cart and easy to move to the work area.
Fine filtration with D.E.
Traps dirt vacuumed from the pool floor before the water goes back into the pool.
Hayward Super II 2 HP
A Hayward pump paired with the DE6220 filter, set up specifically for vacuuming.
15 m suction hose
1.5 inch Emaux CE173 hose with fittings, reaching across large pools.
Complete cleaning tools
Brush, telescopic pole up to 6 m and a 14 inch vacuum head, ready to use.
Breaker and 10 m cable
Breaker box with plug, ready to connect to a properly grounded outlet.
Who it's for
This set is designed for maintaining large pools and pools with many users.
Hotels and resorts
Daily vacuuming before the pool opens to guests.
Housing estates and condos
Building teams can clean communal pools without relying on the main filtration system.
Clubs and public pools
Large pools whose surfaces need frequent cleaning.
Pool service companies
Technicians covering multiple sites who need a portable, ready-to-use set.
Basic operation
Prepare the filter
Clean the filter and add D.E. powder as specified in the manufacturer's manual.
Connect the hose
Connect the suction hose securely to the vacuum head and the vacuum pipe set.
Prime the system
Fill the suction hose and pump completely with water to purge the air before switching on the pump.
Vacuum slowly
Move the vacuum head slowly to keep debris from stirring up.
Watch the pressure
Check the filter pressure gauge while working. If the pressure rises sharply, stop and clean the filter.
Safety precautions
Always use a power supply with proper grounding and residual current protection (RCD/RCBO).
Never run the pump dry, as this can damage the seal and internal components.
Keep the breaker box and plug away from water, and never run the power cable through wet areas.
Wear a dust mask when pouring D.E. powder, and keep children away while the unit is running.
Maintenance for everyday readiness
General guidelines. Please read together with each manufacturer's manual.
After every use
Drain the suction hose, clean the pump strainer basket and coil the hose without kinking it.
When pressure rises
Clean the filter and recharge with fresh D.E. powder in the amount specified by the manufacturer.
Monthly
Check O-rings, fittings and any leaks around the pump and filter. Inspect the brush bristles and vacuum head wheels.
Per manufacturer schedule
Remove and clean the filter grids inside the DE6220 to maintain filtration performance.
Cart and electrics
Wipe salt or chlorine residue off the stainless steel. Check the wheels, cable and plug for damage.
Storage
Store in the shade, avoid constant sun exposure, and drain the pump if it will not be used for a long time.
Frequently asked questions
How is this different from vacuuming through the pool's main filtration system?
The cart has its own pump and filter, so you can vacuum without relying on the pool's vacuum line or plant room, and without loading the main filter with heavy debris. It is ideal for large pools that need frequent cleaning.
What makes a D.E. filter better than a sand filter?
A D.E. system coats the filter grids with D.E. powder, trapping finer particles than sand, so the water returning to the pool is clearer. The trade-off is that you need to add fresh powder every time you clean the filter.
Is D.E. powder included?
No, it is not part of this set, but you can order it at the same time. Message our team on LINE @winwinpool to ask about the amount you need and pricing.
Can it run on standard 220V power?
The Super II pump in this set runs on 220V and comes with a breaker box and 10 m cable. Plug it into a grounded outlet with residual current protection, and have an electrician confirm the circuit can handle a 2 HP motor.
Is a 15 m hose long enough for my pool?
The 15 m hose plus the telescopic pole of up to 6 m covers a wide area, and you can wheel the cart to new positions around the pool. If your pool is especially long or deep, send us its dimensions and our team will assess it for you.
Can I use it to vacuum a green or very cloudy pool?
Yes. Balance the water chemistry first and let the sediment settle to the floor, then vacuum slowly. Heavy debris makes the filter pressure rise quickly, so keep spare D.E. powder on hand to clean and recharge the filter during the job.
Interested in the Hayward DE6220 mobile vacuum cart?
Get a quote and expert advice from the Winwinpool team
Tell us your pool size and how you plan to use it. We'll check your electrical requirements and recommend the right amount of D.E. powder.
