Emaux Galaxy IDE36 Filter
SKU : FI-EM-DE-IDE36
0 Sold
Quantity
Promotions and Special Offers
Buy products worth every ฿3,000 Get an instant discount 4%
Buy products worth every ฿5,000 Get an instant discount 5%
Buy products worth every ฿20,000 Get an instant discount 6%
Buy products worth every ฿40,000 Get an instant discount 7%
Buy products worth every ฿3,000 Get an instant discount 3% (For Everyone)
Buy products worth every ฿5,000 Get an instant discount 4% (For Everyone)
Buy products worth every ฿20,000 Get an instant discount 5% (For Everyone)
Buy products worth every ฿40,000 Get an instant discount 6% (For Everyone)
Short Description
Max FlowRate 16.14 m³/h Filter Area 3 .30 m2 (m2) Flowrate 72 gpm., Valve Connections 2.0” / 63 mm Height 88.6 x 55.6 cm, 6-Way Multiport Valve Carton Dimension : 61x61x95 cm. (Update 16/02/2026)
Emaux Galaxy Series / For residential and commercial pools and spas
Emaux Galaxy IDE D.E. Filter
Micron-level filtration for clearer water than a sand filter
The Emaux Galaxy IDE uses diatomaceous earth (D.E.) or perlite powder to coat its filter grids, forming a fine, porous layer that traps dust, pollen, oils and microparticles a sand filter lets through. It runs at lower pressure, so your pump works less and uses less energy. Available in four sizes: IDE36, IDE48, IDE60 and IDE72.
Why pools that need the clearest water choose D.E.
Each filter type captures particles of a different size. The figures below are typical industry reference ranges; a lower number means finer filtration.
Approximate values; results depend on water condition, filter media and maintenance.
Resort-grade clarity
The powder coating forms a fine filter layer that captures dust, pollen, oils and even some pathogens for sparkling water.
Lower energy use
Operates at lower pressure than other filter types, so the pump works less and running costs drop over time.
D.E. or perlite
Use whichever media suits you. Recommended charge for each model is listed in the spec table.
Easy to service
Weatherproof rounded top, 3-in-1 heavy-duty clamp for fast opening, and a large 1.5" drain.

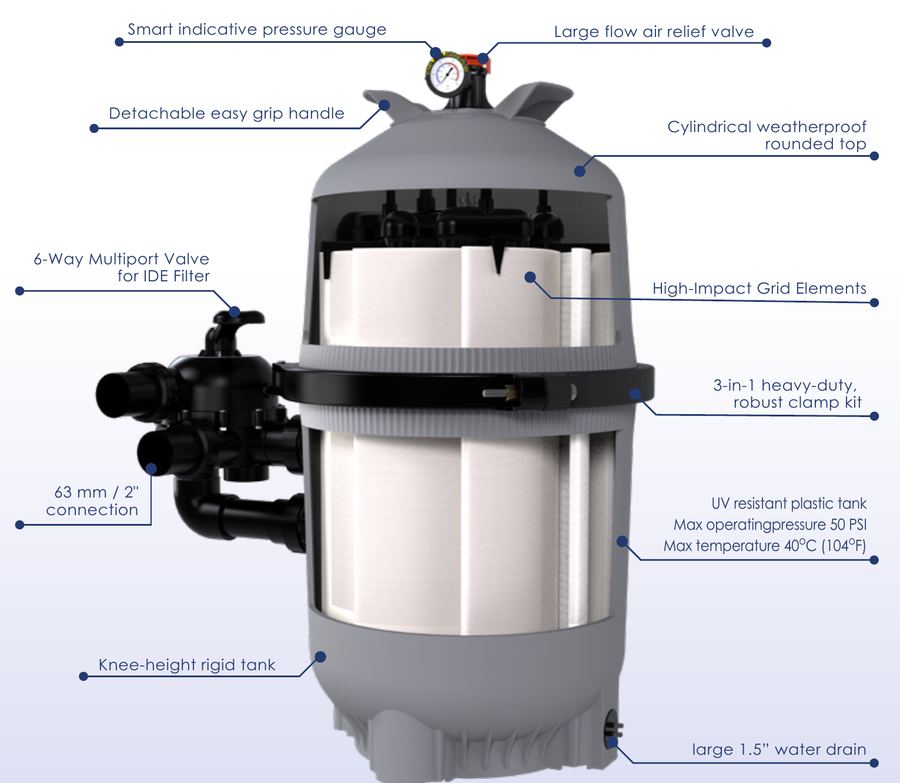

Internal components of the filter (manufacturer's brochure)
Inside the Galaxy IDE
Built for daily duty in residential and commercial pools. The UV-resistant tank sits at knee height for easy access during maintenance.
- Smart indicative pressure gauge shows when it is time to backwash
- Large-flow air relief valve
- Detachable easy-grip handle
- Cylindrical weatherproof rounded top
- High-impact grid elements
- 3-in-1 heavy-duty, robust clamp kit
- 6-way multiport valve designed for IDE filters, 63 mm / 2" connection
- Large 1.5" water drain
- UV-resistant plastic tank, max 50 psi, max 40°C

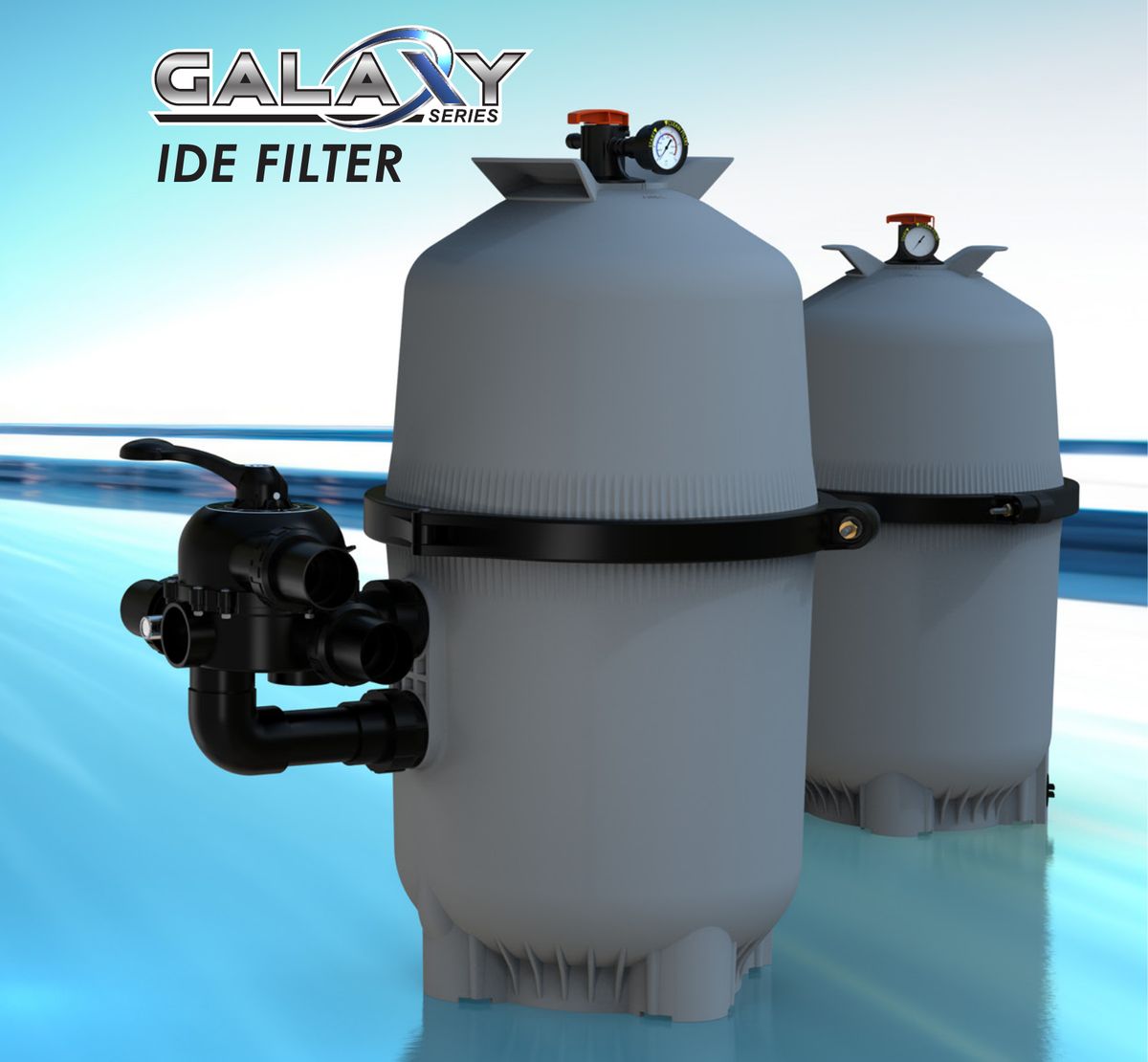

Product Focus
A closer look at the Emaux Galaxy IDE tank, valve and filter grid assembly.
Engineered specifically for IDE filtration
Supplied with: Universal standard union connections, Pressure gauge, IDE filter element
Choose the right size for your pool
Suggested pool volumes are calculated from each filter's maximum flow rate at a 6-hour turnover (commercial) and 8-hour turnover (residential). Pick a pump whose flow does not exceed the filter's maximum. Our team will size it for you at no cost. Use either D.E. or perlite, and add a fresh charge after every backwash.
Full specifications
Scroll the table sideways to see all columns. Dimensions in millimetres.
| Model | Code | Filter area m² / ft² | Flow velocity m³/h/m² | Max flow rate m³/h | gpm / lpm | Recommended D.E. kg / lbs | Recommended perlite kg / lbs | Valve connection | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IDE36 | 9220001 | 3.3 / 36 | 4.9 | 16.14 | 72 / 269 | 2.0 / 4.5 | 1.5 / 3.4 | 2.0" / 63 mm | 886 | 895 | 556 | 504 | 462 | 317.5 | 444.5 |
| IDE48 | 9220002 | 4.4 / 48 | 4.9 | 21.54 | 96 / 359 | 2.7 / 6.0 | 2.0 / 4.5 | 2.0" / 63 mm | 1035 | 895 | 556 | 504 | 462 | 317.5 | 444.5 |
| IDE60 | 9220003 | 5.5 / 60 | 4.9 | 26.88 | 120 / 448 | 3.4 / 7.5 | 2.6 / 5.6 | 2.0" / 63 mm | 1223 | 895 | 556 | 504 | 462 | 317.5 | 444.5 |
| IDE72 | 9220004 | 6.6 / 72 | 4.9 | 32.28 | 144 / 538 | 4.1 / 9.0 | 3.1 / 6.8 | 2.0" / 63 mm | 1362 | 895 | 556 | 504 | 462 | 317.5 | 444.5 |
Dimension drawing from the manufacturer's brochure (mm)
Installation dimensions
Dimensions B, C, D, E, F and G are identical across the range; only the overall height (A) changes, which makes equipment-room planning simple.
Replacement filter elements
| Code | Element model | Description | H (mm) | I (mm) |
|---|---|---|---|---|
| 92201001 | IDE36-CE | Filter grid: 7+1 shot span | 458 | 483 |
| 92201002 | IDE48-CE | Filter grid: 7+1 shot span | 610 | 635 |
| 92201003 | IDE60-CE | Filter grid: 7+1 shot span | 762 | 787 |
| 92201004 | IDE72-CE | Filter grid: 7+1 shot span | 914 | 939 |
Filter and plumbing dimensions
Dimensions refer to the drawings below, in inches / centimetres. Use them to plan pipework and valve position on site.
| Model | A (in / cm) | B (in / cm) | C (in / cm) | D (in / cm) |
|---|---|---|---|---|
| IDE36 | 20.9 / 53 | 12.2 / 30.8 | 23.7 / 60.2 | 1.91 / 4.85 |
| IDE48 | 20.9 / 53 | 18 / 45.6 | 23.7 / 60.2 | 1.91 / 4.85 |
| IDE60 | 20.9 / 53 | 25.4 / 64.4 | 23.7 / 60.2 | 1.91 / 4.85 |
| IDE72 | 20.9 / 53 | 31 / 78.4 | 23.7 / 60.2 | 1.91 / 4.85 |
Who it is for
Homes and pool villas
Owners who want exceptionally clear water and lower pump running costs.
Hotels and resorts
Pools where appearance matters and water must stay clear under heavy bather load.
Commercial pools and spas
Condominium, fitness and spa pools that need consistent water quality.
Pool contractors
New builds and upgrades from sand filters, with standard 2" connections.
Installation and start-up notes
- 1Place the filter on a level concrete base near the pump, leaving clearance above to lift out the lid and grids.
- 2Connect inlet and outlet through the 63 mm / 2" 6-way valve and route the waste/backwash line to a suitable drain.
- 3Run the pump on Filter and add D.E. or perlite through the skimmer using the amount in the spec table (pre-coat).
- 4Note the clean starting pressure after each pre-coat. When pressure rises by about 8-10 psi, backwash and recharge with fresh media.
Maintenance tips
- Backwash by pressure reading, not by calendar, to save media and water.
- Remove and deep-clean the grids at least once or twice a year.
- Inspect the lid O-ring and clamp regularly; replace a dry or cracked O-ring.
- Wear a dust mask when handling D.E. powder and dispose of spent media according to local regulations.
Required installation clearance
Allow at least 51 cm of side clearance for the valve and service access, and the top clearance shown below so the lid and grid assembly can be lifted out for cleaning. Check your equipment-room height before ordering.
| Model | Overall height A in / cm | Side clearance B cm | Top clearance C cm | Total headroom needed cm (A+C) |
|---|---|---|---|---|
| IDE36 | 34.88 / 88.6 | 51 (20 in) | 45 | 133.6 |
| IDE48 | 40.7 / 103.5 | 51 (20 in) | 48 | 151.5 |
| IDE60 | 48.15 / 122.3 | 51 (20 in) | 61 | 183.3 |
| IDE72 | 53.6 / 136.2 | 51 (20 in) | 80 | 216.2 |
The A+C column is calculated for convenience when checking equipment-room height.
Frequently asked questions
How is a D.E. filter different from a sand filter?+
How often do I add D.E. powder?+
Can I use perlite instead of D.E.?+
Which model suits my pool size?+
Can I replace my sand filter with a D.E. filter?+
Are replacement grids available?+
Let the WINWINPOOL team size your filter
Send us your pool dimensions (length x width x depth) and current pump model. We will recommend the right filter, media quantity and fittings, and prepare a quote. Serving Bangkok, Hua Hin and Pattaya.
Specifications from Emaux Water Technology. Subject to change without notice.
