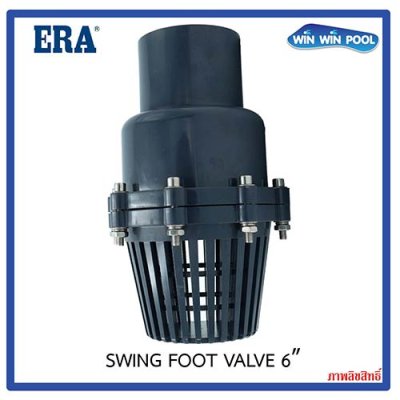

ERA Swing Foot Valve 6"
SKU : FT-ER-SFV-60
1 Sold
Quantity
Short Description
ERA Swing Foot Valve 6" UPVC (Update 30/03/2026)
ERA U-PVC Swing Foot Valve
The ERA Swing Foot Valve is designed to prevent water from flowing backward from the pump into a balance tank or surge tank. It is suitable for suction systems where the water level is lower than the pump installation point. The valve helps retain water inside the suction pipe and reduces the risk of the pump running dry.
The valve body is manufactured from durable U-PVC, offering excellent resistance to chemicals and corrosion. It features an HDPE seal and an EPDM O-ring that provides flexibility, reliable sealing, and resistance to environmental conditions. The valve is suitable for swimming pool circulation systems, water pumps, and general water supply systems.
Key Features of the ERA Swing Foot Valve
- Prevents water from flowing backward into the balance tank or surge tank
- Helps retain water inside the suction pipe
- Reduces the risk of the pump running dry
- Durable U-PVC body with excellent chemical resistance
- Flexible and corrosion-resistant EPDM O-ring
- Union-type body for easy removal, inspection, and maintenance
- Available in 3-inch, 4-inch, and 6-inch sizes
Swing Foot Valve Applications
The ERA Swing Foot Valve is suitable for installation at the end of a suction pipe in applications such as:
- Swimming pool circulation systems
- Water pump and suction pipe systems
- Balance tanks and surge tanks
- Systems where the pump is installed above the water level
- Water piping systems requiring backflow prevention
Materials and Construction
- Valve body: U-PVC
- Seal: HDPE
- O-ring: EPDM (Ethylene Propylene Diene Monomer)
- Body design: Union-type construction for convenient removal and maintenance
- Properties: Strong, durable, and resistant to chemicals, moisture, and corrosion
ERA Swing Foot Valve Technical Specifications
| Model | Material Description | Size D (inch) | ANSI d (mm) | DIN (mm) |
|---|---|---|---|---|
| FV-ER-3.0 | U-PVC body, HDPE seal, EPDM O-ring | 3 inches | 88.90 | 90 |
| FV-ER-4.0 | U-PVC body, HDPE seal, EPDM O-ring | 4 inches | 114.30 | 110 |
| FV-ER-6.0 | U-PVC body, HDPE seal, EPDM O-ring | 6 inches | 168.30 | 160 |
Valve Dimensions
| Model | Description | Pipe Size | A (mm) | B (mm) |
|---|---|---|---|---|
| FV-ER-3.0 | U-PVC Foot Valve, HDPE seal, EPDM O-ring | 3 inches | 187 | 340 |
| FV-ER-4.0 | U-PVC Foot Valve, HDPE seal, EPDM O-ring | 4 inches | 239 | 435 |
| FV-ER-6.0 | U-PVC Foot Valve, HDPE seal, EPDM O-ring | 6 inches | 346 | 630 |
ERA Swing Foot Valve Product Images
Order an ERA Swing Foot Valve
Contact us for pricing and stock availability
Tel: 02-989-1111 | Line: @winwinpool
