EL-NP300 20W/12V Warm Wthie(4000K) 252 LED,535 LUX,Material S.S 304 Face Ring, Light & Niche
SKU : LT-EM-ELNP300P-WW
0 Sold
฿5,435
Quantity
Short Description
20W/12V Warm Wthie(4000K) 252 LED,535 LUX,Material S.S 304
Face Ring, Light & Niche (Update 17/02/2026)

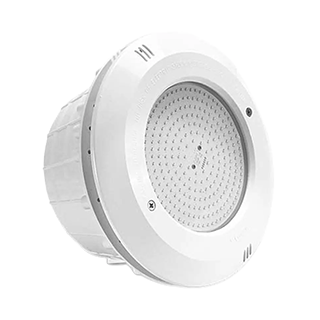

The EMAUX EL-NP300 Series is a built-in type underwater light from the E-Lumen Series, supplied complete with a niche. Choose the face ring material in either Plastic or Stainless Steel 304, with a range of light colours including Cool White, Warm White, and RGB with 14 colour-changing modes. It also offers an Ultra-Thin 400 LED slim panel option and an optional RGB Controller with remote (Model 08040009). Rated IP68 waterproof and certified to CE and RoHS standards.
Key Features of the EMAUX EL-NP300 Series
An underwater light that combines durability, colour flexibility, and broad pool compatibility.
Built-In Type with Niche Included
A built-in underwater light supplied as a "Light & Niche" set, designed for a secure, long-lasting installation.
Ultra-Thin 400 LED Option Available
Besides the standard 252-LED panel, an Ultra-Thin 400 LED version is also available. Contact our team for full specifications and pricing.
Multiple Light Colour Options
Choose from Cool White, Warm White (4000K), or RGB with up to 14 colour-changing modes see the product code table below.
Two Face Ring Materials
Available with either a Plastic face ring (more economical) or Stainless Steel 304 (more durable and premium looking).
252-LED High-Brightness Panel
Uses a 252-LED panel rated 20 watts / 12V, delivering up to 535 lux of brightness in Warm White mode.
IP68 Waterproof, CE / RoHS Certified
Fully waterproof with international CE and RoHS certification, giving you confidence in both quality and safety.
General Product Information
Product Code & Spec Comparison Table
Choose a model based on your preferred face ring material and light colour. Every code is supplied with the niche included (Light & Niche).
Stainless Steel 304 Face Ring
Plastic Face Ring
*The Cool White colour temperature printed on the original document appears inaccurate, so the K value has been omitted from this table please confirm the correct value with our team before ordering. Every SKU listed already includes the niche. If you are interested in the Ultra-Thin 400 LED slim panel or the RGB Controller with remote (Model 08040009), please contact our team for details.
Light Colour Options
Choose the light tone that best suits your pool's atmosphere.
Cool White
450 lux
Warm White
4000K · 535 lux
Multi Colour RGB
14 colour-changing modes · 222-223 lux
Colours shown are for illustration only; actual light colour may vary slightly depending on your screen. The overview document also mentions an additional LED Blue option, but no SKU for it was included in this comparison table please contact our team if you are interested.
Dimension
Which Pools Is It Suitable For
The EMAUX EL-NP300 Series is suitable for concrete and vinyl pools of any size homes, villas, hotels, and resorts. Since it comes with a matching niche, the niche shape differs slightly between the vinyl pool and concrete pool versions, following the manufacturer's installation design.
For a more premium look, we recommend the Stainless Steel 304 face ring (EL-NP300-S-252-304 series). For better value, choose the Plastic face ring (EL-NP300-P-252 series). Both options are available in the same three light colours: Cool White, Warm White, and RGB.
Before You Install
- A step-down transformer from 220V to 12V must always be used before supplying power to the light. Never connect 220V household power directly to the fixture.
- Let our team know your pool type (concrete or vinyl) before ordering, so the correct niche set can be prepared for your pool wall.
- If choosing the RGB version, plan to install an additional colour controller as advised by our team to make full use of the 14 colour-changing modes.
- Installation should be carried out by an experienced electrician or pool technician for safety and to prevent water ingress at the connection point.
- Underwater cable connections should use a certified waterproof junction box, and an RCD (residual current device) safety cut-off should be installed on every circuit.
Maintenance Tips
- Clean the lens and face ring regularly with a soft cloth to reduce limescale build-up and keep brightness at its best.
- Check the rubber seals around the housing and niche at least once a year, and replace immediately if cracked or worn.
- For the stainless steel face ring version, wipe the surface regularly to maintain its shine.
- Avoid leaving the light switched on while it is not submerged in water, as heat build-up can shorten its lifespan.
- Have a technician inspect the entire pool lighting system every 6-12 months, together with the pump and filtration system.
Frequently Asked Questions
Frequently Purchased Together
Pool Light Transformer
Required to safely power the underwater light.
RGB Controller with Remote (Model 08040009)
An optional accessory to make full use of the RGB colour-changing modes.
Waterproof Junction Box
Protects the cable connection point from moisture and pool water.
Interested in the EMAUX EL-NP300 Series?
Our Win Win Pool Shop team is happy to advise on choosing the right light and planning your pool lighting system to suit your project.
