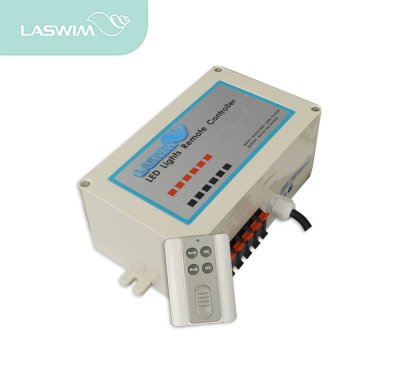

ชุดควบคุม ไฟ LED 100W/12V/AC With Transformer พร้อม Remote LASWIM

Features:
All of the 12V AC input LED lights can be controlled by this system
If the system is installed out-of-doors, a housing must be provided to prevent rain and sunlight
It is also better to keep the system away from electromagnetism radicalization
One system can control the LED lights with total power not more than 100W
Electrical overload & leakage protection
Easy and simple operation with 4 keys
Approved CE certificate

 TECHNO-DESCRIPTION

Input voltage (With Transformer) : AC220V
Output voltage: AC12V
Output power: 100W
Max output current: 8A
Max control area: 100m
Input voltage(Without Transformer): AC12V
Output voltage: AC12V
Max output current: 8A
Max control area: 100m

PUSHBUTTON FUNCTION

ON: Lights ON
OFF: Lights OFF
SYNCH: Make the lights work in-phase
MODE: Change mode
POWER: Romote control ON/OFF ( push down to save power when do not use )

Power to the system, then press the ON push button, all the lights will be ON, holding for 10 seconds, press the SYNCH button, the lights will work in-phase, then press the MODE button to change the mode.

NOTE: When press the MODE button,must hold it for 3 seconds before next press.

CONNECTING

Press the up or down clamp, put the cable into the hole, loosen the clamp, then the cable will be automatically clamped.

ATTENTION

• The Remote Control System must beinstalled by a licensed or certified electrician
• The Remote Control System must beinstalled far away from the humidity.
• The Remote Control System must be kept  away from the corrosive thing.
