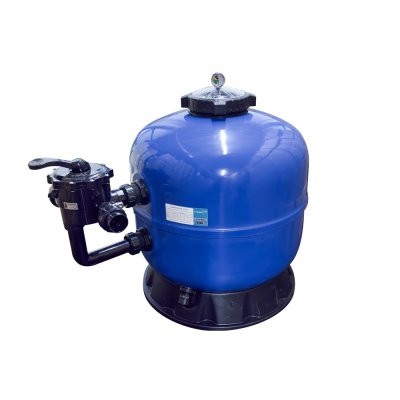

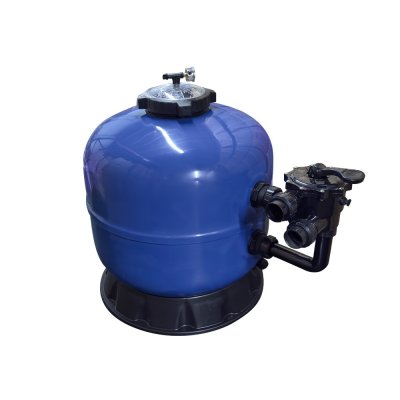

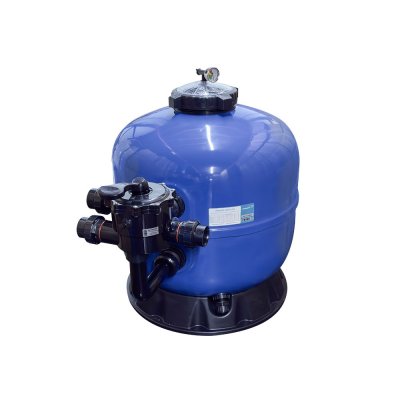

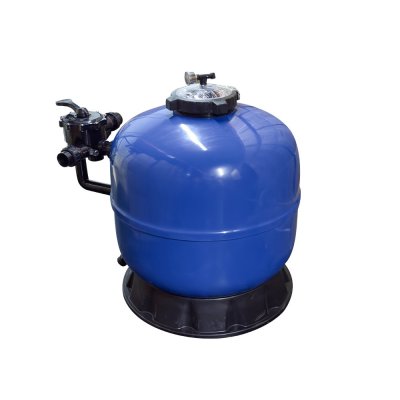

ถังกรองทราย LASWIM Laminated Sand filter WL-ICG 19" Side Mount
SKU : FI-LS-SF-ICG500
0 Sold
฿19,845
฿9,526
Quantity
Short Description
LASWIM Laminated Sand filter Side mount ถังกรองทราย ขนาดถัง 19" ขนาดวาล์ว 1.5" Flow rate 10 m3/h ใช้ทราย 90กก. ความสูง 74.5ซม. (Update 04/03/2026)
Wishlist
Compare
รายละเอียดสินค้า
Download
VDO
Product Description
made of fiberglass reinforce laminated polyester
Smooth and high brightness appearance

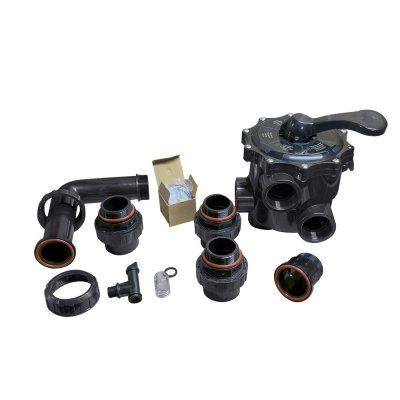

6-way multiport valve
Sight glass for inspection of filtered water
Easy maintenance, easy cleaning
Maximum working pressure: 36psi/2.5kg/cm2
Maximum temperature: 50
| Model | Pipe Size inches | Pipe Size mm | Filter Area (㎡ ) | Design Flow (㎥ /h) | Design Flow Ipm | Sand Weight (kg) | Tank Diameter (mm) | Tank Height (mm) |
|---|---|---|---|---|---|---|---|---|
| WL-ICG450 | 1.5 | 50 | 0.16 | 8 | 133 | 45 | 450 | 660 |
| WL-ICG500 | 1.5 | 50 | 0.2 | 10 | 166 | 80 | 500 | 745 |
| WL-ICG650 | 1.5 | 50 | 0.32 | 15 | 250 | 130 | 635 | 805 |
| WL-ICG700 | 1.5 | 50 | 0.38 | 19 | 317 | 190 | 700 | 885 |
| WL-ICG750 | 2 | 63 | 0.44 | 22 | 367 | 230 | 750 | 1000 |
| WL-ICG800 | 2 | 63 | 0.5 | 25 | 417 | 260 | 800 | 1000 |
| WL-ICG900 | 2 | 63 | 0.64 | 32 | 533 | 400 | 900 | 1115 |
