-43%

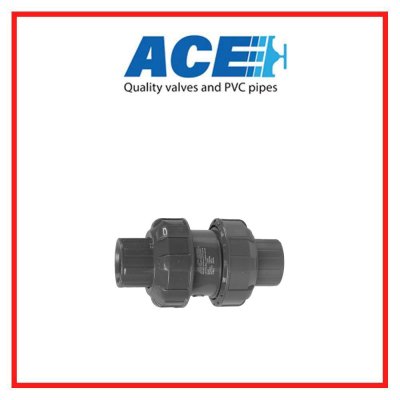

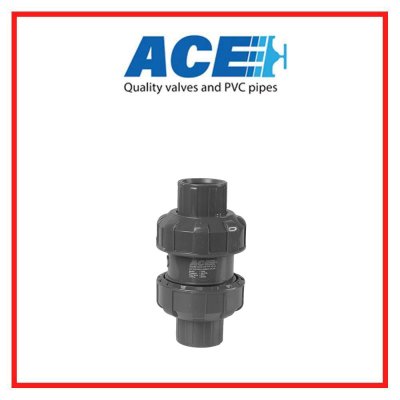

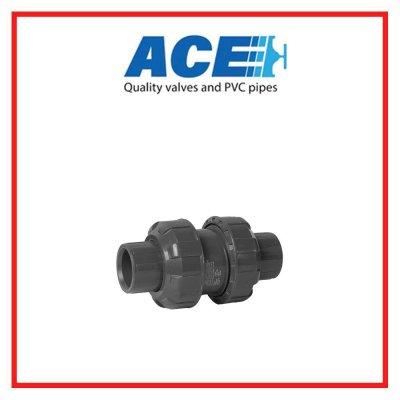

ACE CHECK VALVE 1/2" D/UNION BALL CHECK VALVE
SKU : FT-VF05-DN15
1 Sold
฿264
฿151
Quantity
Short Description
✅CHECK VALVE 1/2" Double UNION BALL CHECK VALVE ✅Box Dimensions Lx W x H ::10 x 10 x 16.7 cm) 58*58*102 ✅ Net weight: 148.1 g (update 24/11/2023)
Brands: ACE
Wishlist
Compare
Product description
PVC DOUBLE UNION BALL CHECK VALVE
Detailed Description
PVC Double Union Ball Check Valve
Item Code: VF05
Size: 1-1/2"
Ends: Socket: (ANSI/BS/DIN/CNS/JIS)
Ends: Threaded: (PT/NPT/BSPT)
Working Pressure : 0-150 PSI.
Max.temp: 55C
O-ring : EPDM

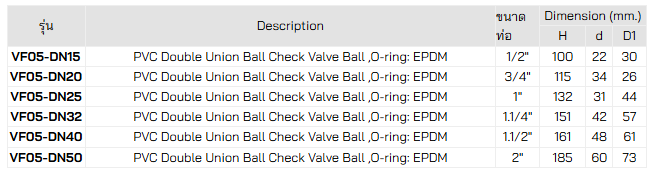

| รุ่น | Description | ขนาดท่อ | Dimension (mm.) | ||
| H | d | D1 | |||
| VF05-DN15 | PVC Double Union Ball Check Valve Ball ,O-ring: EPDM | 1/2" | 100 | 22 | 30 |
| VF05-DN20 | PVC Double Union Ball Check Valve Ball ,O-ring: EPDM | 3/4" | 115 | 34 | 26 |
| VF05-DN25 | PVC Double Union Ball Check Valve Ball ,O-ring: EPDM | 1" | 132 | 31 | 44 |
| VF05-DN32 | PVC Double Union Ball Check Valve Ball ,O-ring: EPDM | 1.1/4" | 151 | 42 | 57 |
| VF05-DN40 | PVC Double Union Ball Check Valve Ball ,O-ring: EPDM | 1.1/2" | 161 | 48 | 61 |
| VF05-DN50 | PVC Double Union Ball Check Valve Ball ,O-ring: EPDM | 2" | 185 | 60 | 73 |
