-43%
70003 O-Ring Tail Union อะไหล่หมายเลข 7
SKU : SP-AS-70003
0 Sold
฿397
฿227
Quantity
Short Description
สำหรับ ปั้ม CTX Series รุ่น 44453,44455,44456 (Update 18/08/2026)
Brands: ASTRALPOOL
Wishlist
Compare
Product description

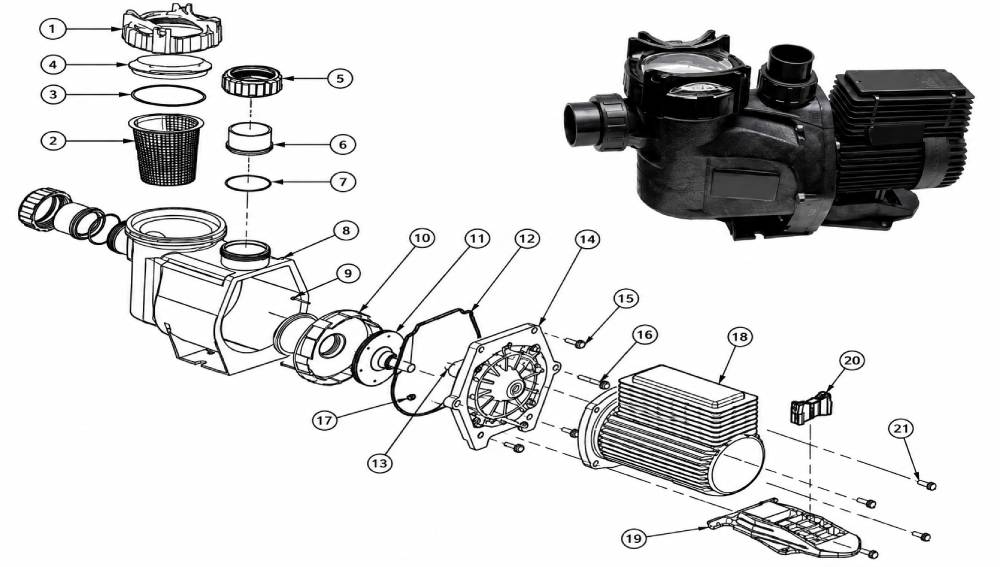

AstralPool Pump
CTX High Performance Pump
CODE: 44452, 44453, 44454, 44455, 44456
| No. | รหัสสินค้า (Code) | รายละเอียดสินค้า (Description) | แพ็ค (Pack) | ราคารวม VAT | ราคาเว็บไซต์ |
|---|---|---|---|---|---|
| 1 | SP40089 | LID COMPLETE WITH O-RING | 1 | ฿2,643 | ฿1,507 |
| 2 | 40065 | BASKET | 1 | ฿1,586 | ฿905 |
| 3 | 70006 | LID O-RING | 1 | ฿661 | ฿377 |
| 5 | 950919 | LOCK NUT | 1 | ฿793 | ฿453 |
| 6 | 950920 | 2 (50MM) GLUE IN PIPE UNION | 1 | ฿793 | ฿453 |
| 7 | 70003 | O-RING | 1 | ฿397 | ฿227 |
| 8 | 40097 | WETEND COMPLETE WITH BASKET AND DRAIN PLUGS | 1 | ฿12,554 | ฿7,156 |
| 9 | 40165 | DIFFUSER RETAINING SCREWS | 1 | ฿265 | ฿152 |
| 10 | 40071A | DIFFUSER CTX 180,280,360,400 | 1 | ฿2,908 | ฿1,658 |
| 10 | 40071B | DIFFUSER CTX 500,610 | 1 | ฿2,908 | ฿1,658 |
| 11 | 40060R | IMPELLER CTX 180 | 1 | ฿1,851 | ฿1,056 |
| 11 | 40060S | IMPELLER CTX 280 | 1 | ฿1,851 | ฿1,056 |
| 11 | 40060F | IMPELLER CTX 360 | 1 | ฿1,983 | ฿1,131 |
| 11 | 40060G | IMPELLER CTX 400 | 1 | ฿1,851 | ฿1,056 |
| 11 | 40060V | IMPELLER CTX 500 | 1 | ฿1,851 | ฿1,056 |
| 11 | 40060W | IMPELLER CTX 610 | 1 | ฿1,851 | ฿1,056 |
| 12 | 70022 | O RING (SEAL PLATE) | 1 | ฿1,322 | ฿754 |
| 13 | 75509 | MECHANICAL SEAL - BP02-USA-0191 | 1 | ฿1,851 | ฿1,056 |
| 14 | 40098 | SEAL PLATE | 1 | ฿4,758 | ฿2,713 |
| 15 | 78772 | SEAL PLATE TO WETEND BOLTS | 1 | ฿529 | ฿302 |
| 17 | 40272 | NUT- BRASS FOR BOLTS | 1 | ฿265 | ฿152 |
| 18 | 71310 | MOTOR CTX 180 | 1 | ฿23,258 | ฿13,258 |
| 18 | 71313 | MOTOR CTX 280, 360 | 1 | ฿26,297 | ฿14,990 |
| 18 | 71314 | MOTOR CTX 400 | 1 | ฿26,297 | ฿14,990 |
| 18 | 71319 | MOTOR CTX 500 | 1 | ฿36,473 | ฿20,790 |
| 18 | 71331 | MOTOR CTX 610 | 1 | ฿37,926 | ฿21,618 |
| 19 | 4005002 | MOTOR FOOT | 1 | ฿1,058 | ฿604 |
| 20 | 40056 | MOTOR FOOT RUBBER INSERT | 1 | ฿529 | ฿302 |
| 21 | 40156 | BOLTS- MOTOR TO SEAL PLATE | 1 | ฿397 | ฿227 |
| Not Shown | LABEL264 | CTX LABEL | 1 | ฿793 | ฿453 |
| Not Shown | 7820702 | DRAIN PLUG | 1 | ฿926 | ฿528 |
| Not Shown | 78103 | O-RING | 1 | ฿265 | ฿152 |
| Not Shown | 950919 | LOCK NUT | 1 | ฿793 | ฿453 |
| Not Shown | 598770 | CHECK VALVE ASSEMBLY | 1 | ฿793 | ฿453 |
| Not Shown | INST243 | INSTRUCTION MANUAL | 1 | ฿661 | ฿377 |
| Not Shown | 78303 | COMPONENT BAG | 1 | ฿1,454 | ฿829 |
* ราคาสินค้ารวมภาษีมูลค่าเพิ่ม 7% แล้ว ราคาอาจเปลี่ยนแปลงโดยไม่แจ้งล่วงหน้า กรุณาติดต่อฝ่ายขายเพื่อยืนยันราคาและสต๊อกสินค้าล่าสุด
